Part Number # 769-604/005-000
SKU # 2294955
Brand: Wago
769-604/005-000

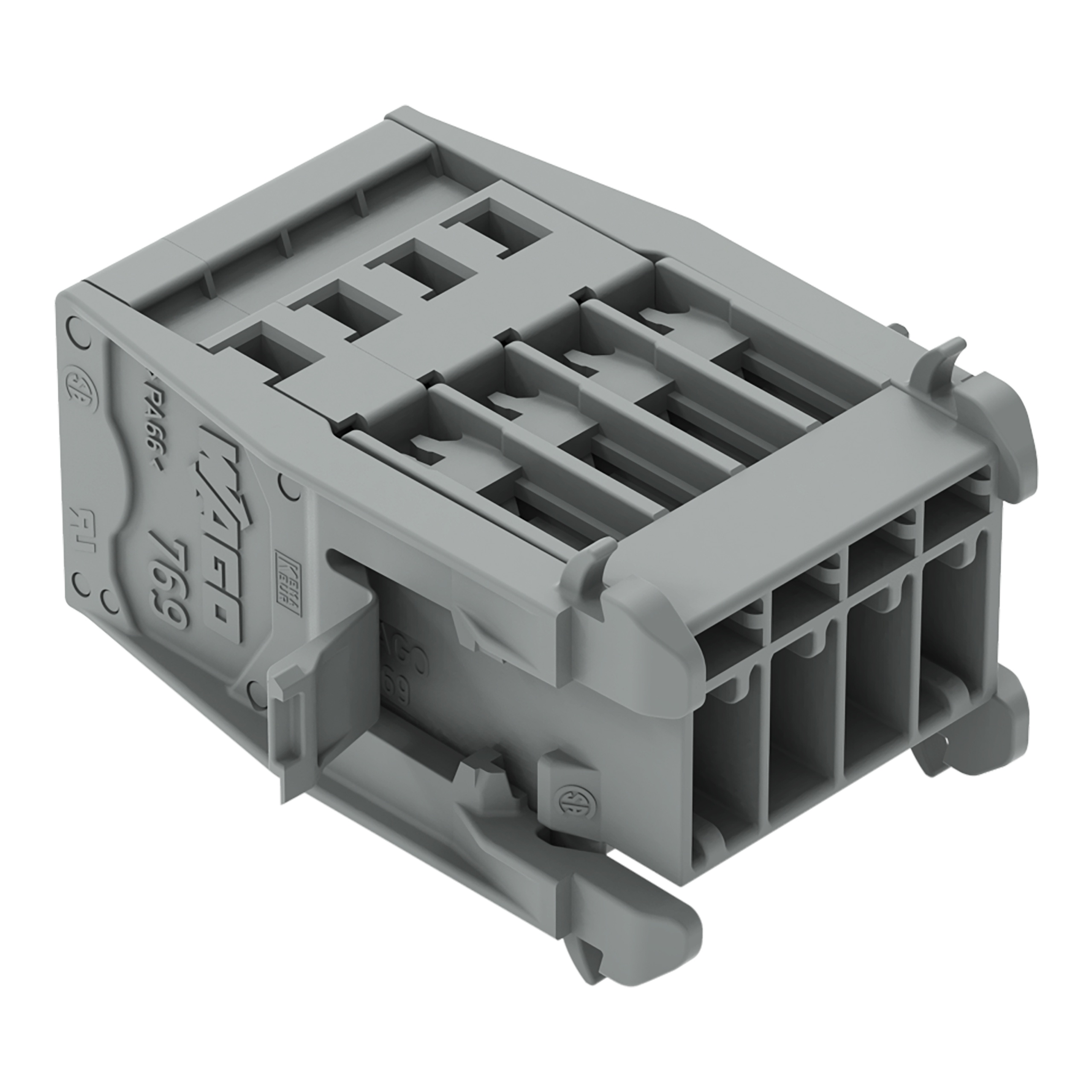

WAGO 769-604/005-000 X-COM through-panel connector (male)
Part Number # 769-604/005-000
SKU # 2294955
$7.68 / Each
Typical price:$8.32 / Each
Wago 769-604/005-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-604/005-000 |
| SKU #: | 2294955 |
| Amperage Rating: | 32 A |
| Dimensions: | 0.961 in H x 1.626 in W x 1.606 in D |
| Number of Poles: | 4 |
| Series: | 769 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 1-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | PL |
| Depth: | 40.8 mm / 1.606 inch |
| Height: | 24.4 mm / 0.961 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Snap-Fit, Snap-in |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 14.026 g |
| Width: | 41.3 mm / 1.626 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918840927 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.68 / Each
Typical price:$8.32 / Each
Quantity:
WAGO 769-604/005-000 X-COM through-panel connector (male)
Brand: Wago
Part Number: 769-604/005-000
Additional Description: WAGO-769-604/005-000 1-CONDUCTOR MALE CONNECTOR; SNAP-IN FLANGE; 4 MM; PIN SPACING 5 MM; 4-POLE; 4,00 MM; GRAY 51045992
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 4-pole; Snap-in flange; 4,00 mm²; gray
769-604/005-000 Standards
RoHS CompliantSKU #2294955Part Number #769-604/005-000UNSPSC39121469UPC04044918840927
Image provided may only be a representation of final product and may include optional equipment
