Part Number # 770-104
SKU # 2371955
Image Disclaimers Message
770-104

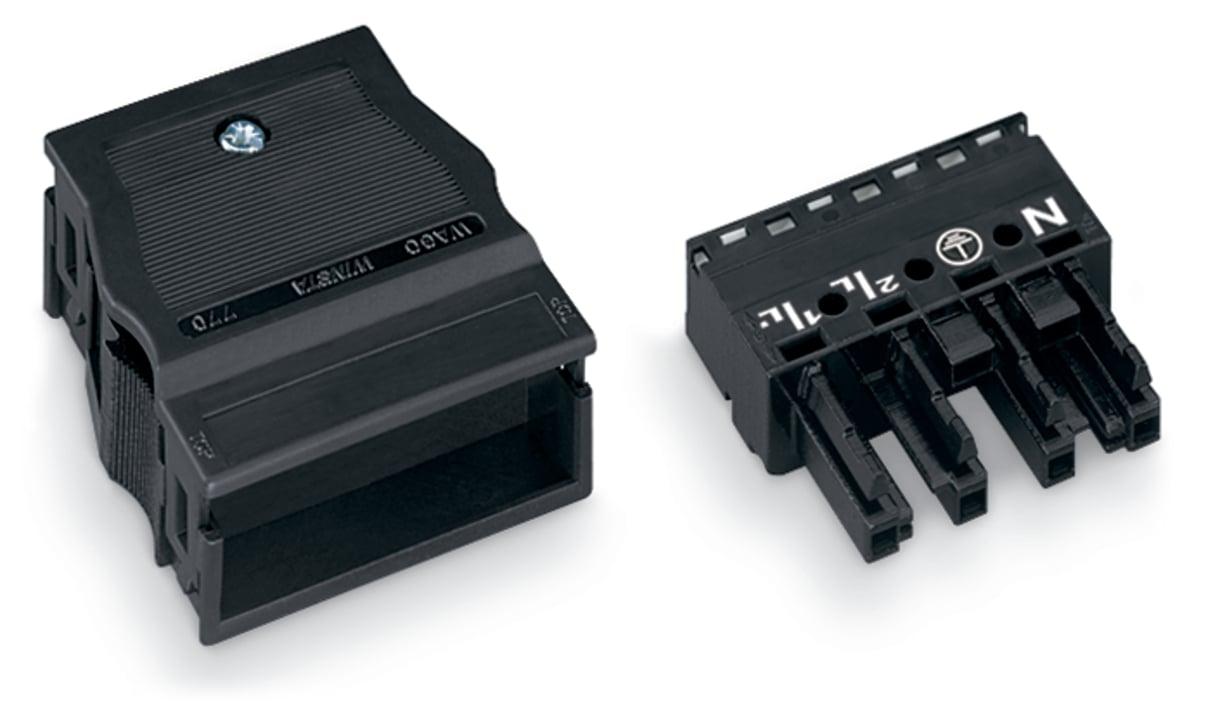

WAGO 770-104 Socket
Part Number # 770-104
SKU # 2371955
$6.66 / Each
Typical price:$7.21 / Each
Wago 770-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-104 |
| SKU #: | 2371955 |
| Connector Type: | Cage Clamp |
| Dimensions: | 0.66 in H x 1.75 in W x 2.98 in D |
| Number of Positions: | 8 |
| Series: | 770 |
| Suitable For Use With: | For Strain Relief Housing |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | 4-Pole |
| Wire Size: | 0.35 in |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 75.9 mm / 2.988 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | N ⏚ 2/L 1/L' |
| Material: | Polyamide (PA66) |
| Mounting type: | Snap-in |
| Nominal cross-section: | 4 mm² |
| Potential marking: | N ⏚ 2/L 1/L' |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 8 |
| Weight: | 24.438 g |
| Width: | 44.6 mm / 1.756 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918252126 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.66 / Each
Typical price:$7.21 / Each
Quantity:
- WAGO, 770-104, Socket, 4-Pole, Series: 770, 8 Positions, 0.39 in Pitch/Row Spacing, Snap-In Mounting, 0.35 in Wire, Cage Clamp Connector, -35 to 85 deg C, For Use With: For Strain Relief Housing, Polyamide (PA66), Black, 0.66 in H x 1.75 in W x 2.98 in D Dimensions
770-104 Application
For General mains applications770-104 Item Features
- Effective protection against mismating
- Flexible installation to save space
- Convenient installation and commissioning
770-104 Standards
RoHS CompliantSKU #2371955Part Number #770-104UNSPSC32151603UPC04044918252126
