Part Number # 770-114
SKU # 2345526
Image Disclaimers Message
Brand: Wago
770-114
WAGO 770-114 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-114
SKU # 2345526
$5.83 / Each
Typical price:$6.32 / Each
Wago 770-114 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-114 |
| SKU #: | 2345526 |
| Connector Type: | Plug |
| Dimensions: | 0.66 in H x 1.75 in W x 2.99 in D |
| Number of Positions: | 4 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 75.9 mm / 2.988 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | N ⏚ 2/L 1/L' |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | N ⏚ 2/L 1/L' |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 8 |
| Weight: | 24.858 g |
| Width: | 44.6 mm / 1.756 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918254410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.83 / Each
Typical price:$6.32 / Each
Quantity:
WAGO 770-114 Programmable Logic Controller Distributed On Machine I/O Subsystem
Brand: Wago
Part Number: 770-114

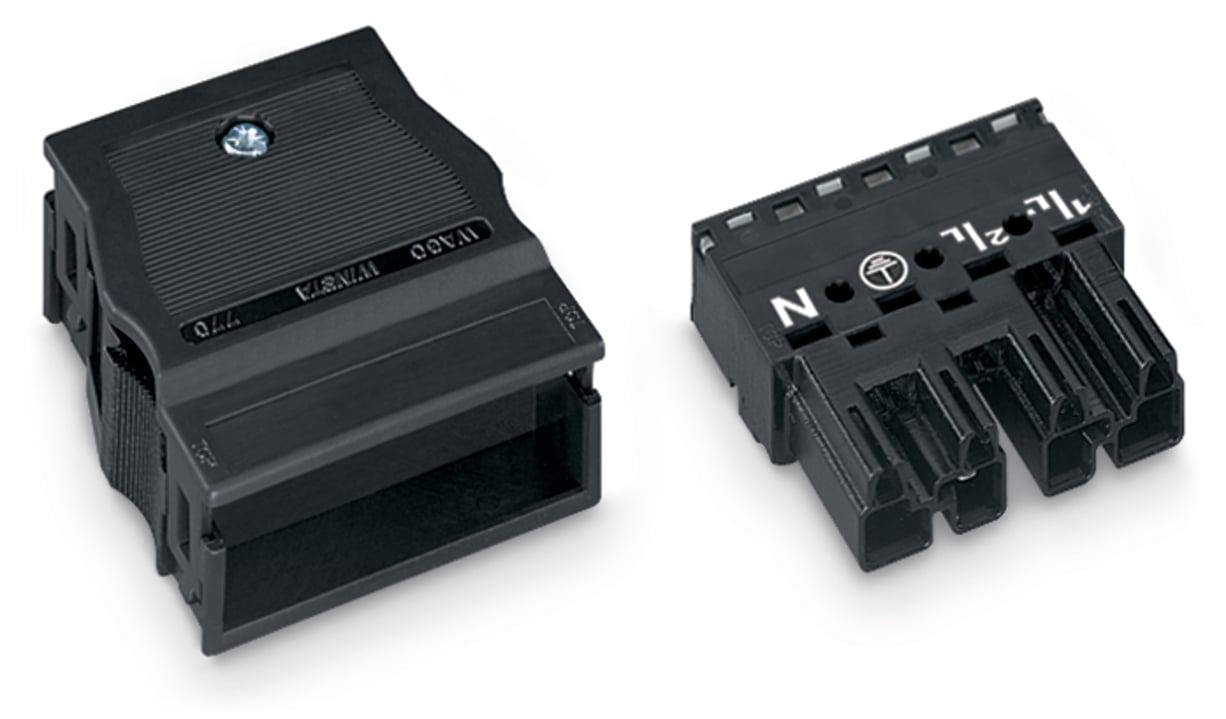

Additional Description: WAGO-770-114 PLUG WITH STRAIN RELIEF HOUSING; 4-POLE, BLACK 51110435
Catalog Description: Plug; with strain relief housing; 4-pole; Cod. A; 4,00 mm²; black
770-114 Application
For General mains applications770-114 Item Features
- Protection against mismating eliminates errors
- Custom-engineered solutions
- Rapid, structured electrical installation
770-114 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2345526Part Number #770-114UNSPSC32151603UPC04044918254410
