Brand: Wago
770-115

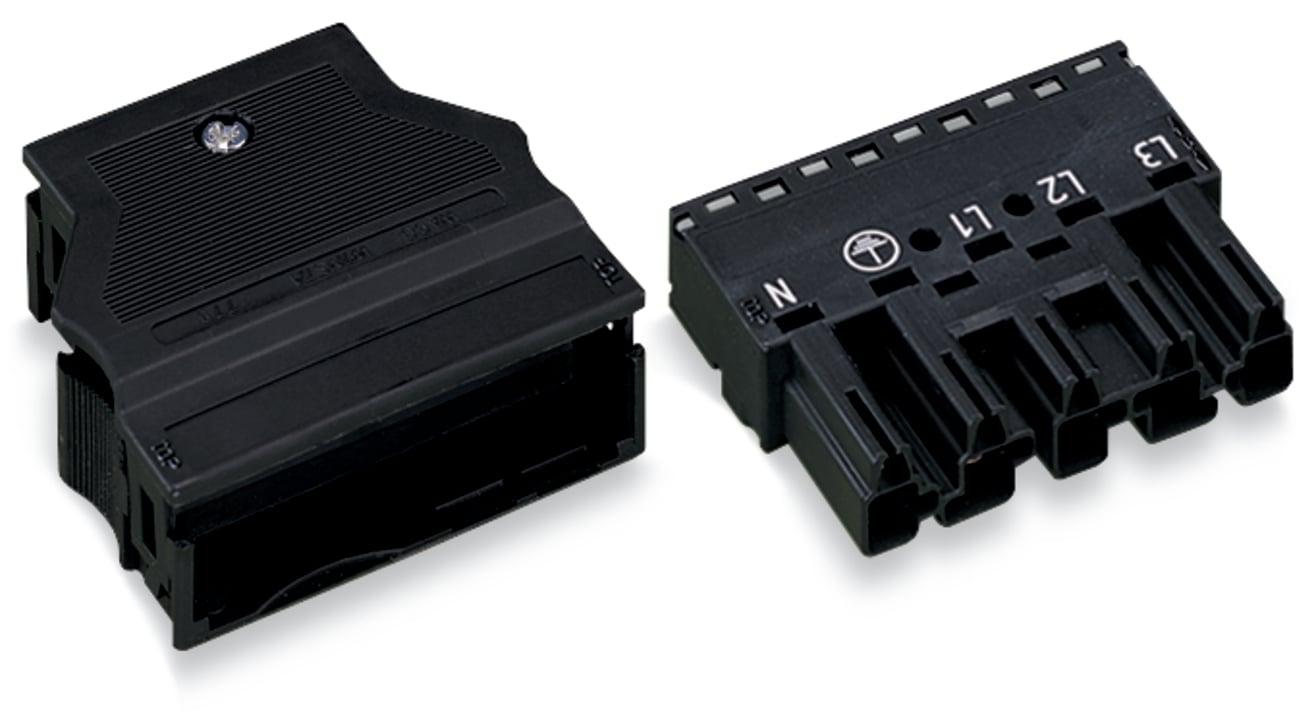

WAGO 770-115 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-115
SKU # 2358819
$6.69 / Each
Typical price:$7.25 / Each
Wago 770-115 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-115 |
| SKU #: | 2358819 |
| Connector Type: | Plug |
| Dimensions: | 0.66 in H x 2.15 in W x 2.99 in D |
| Number of Positions: | 5 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 75.9 mm / 2.988 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | N ⏚ L1 L2 L3 |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | N ⏚ L1 L2 L3 |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 10 |
| Weight: | 29.706 g |
| Width: | 54.6 mm / 2.15 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918254441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.69 / Each
Typical price:$7.25 / Each
Quantity:
WAGO 770-115 Programmable Logic Controller Distributed On Machine I/O Subsystem
Brand: Wago
Part Number: 770-115
Additional Description: WAGO-770-115 PLUG WITH STRAIN RELIEF HOUSING 5-POLE; BLACK 51110438
Catalog Description: Plug; with strain relief housing; 5-pole; Cod. A; 4,00 mm²; black
770-115 Application
For General mains applications770-115 Item Features
- Protection against mismating eliminates errors
- Pre-assembled versions
- Custom-engineered solutions
- Convenient installation and commissioning
770-115 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2358819Part Number #770-115UNSPSC32151603UPC04044918254441
