Part Number # 770-123
SKU # 2363252
Image Disclaimers Message
Brand: Wago
770-123

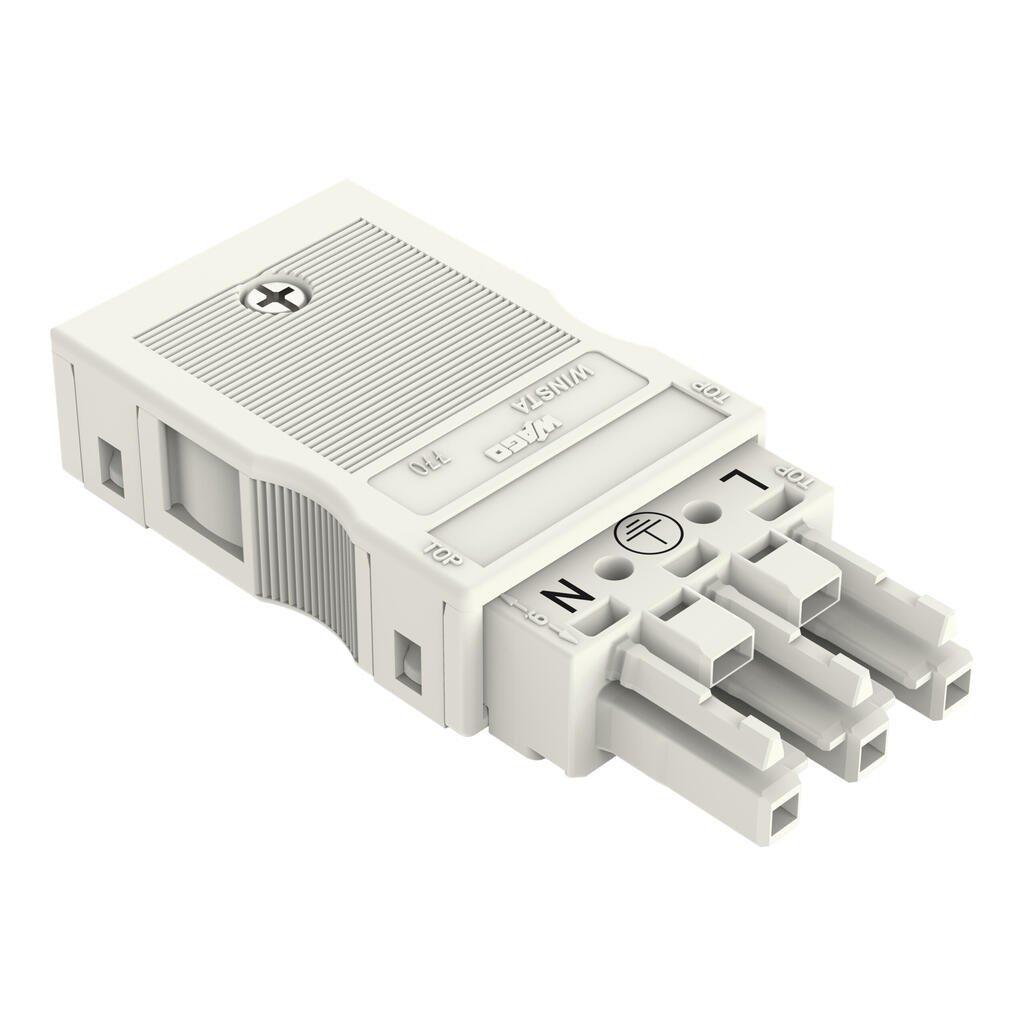

WAGO 770-123 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-123
SKU # 2363252
$5.34 / Each
Typical price:$5.78 / Each
Wago 770-123 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-123 |
| SKU #: | 2363252 |
| Connector Type: | Socket |
| Dimensions: | 0.59 in H x 1.36 in W x 2.99 in D |
| Number of Positions: | 3 |
| Specifications: | -35 to 85 degree C Continuous Operating Temperature |
| Suitable For Use With: | General Mains Application |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | White |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 75.9 mm / 2.988 inch |
| Height: | 15 mm / 0.591 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Strain relief: | Strain relief housing |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 19.652 g |
| Width: | 34.6 mm / 1.362 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918252171 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.34 / Each
Typical price:$5.78 / Each
Quantity:
WAGO 770-123 Programmable Logic Controller Distributed On Machine I/O Subsystem
Brand: Wago
Part Number: 770-123
Additional Description: WAGO-770-123 SOCKET WITH STRAIN RELIEF HOUSING; 3-POLE; WHITE 51110211
Catalog Description: Socket; with strain relief housing; 3-pole; Cod. A; 4,00 mm²; white
770-123 Application
For General mains applications770-123 Item Features
- Protection against mismating eliminates errors
- With A coding for a large number of uses
- Flexible installation to save space
- Fast, secure installation
770-123 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2363252Part Number #770-123UNSPSC32151603UPC04044918252171
