Part Number # 770-202
SKU # 2362032
Image Disclaimers Message
Brand: Wago
770-202

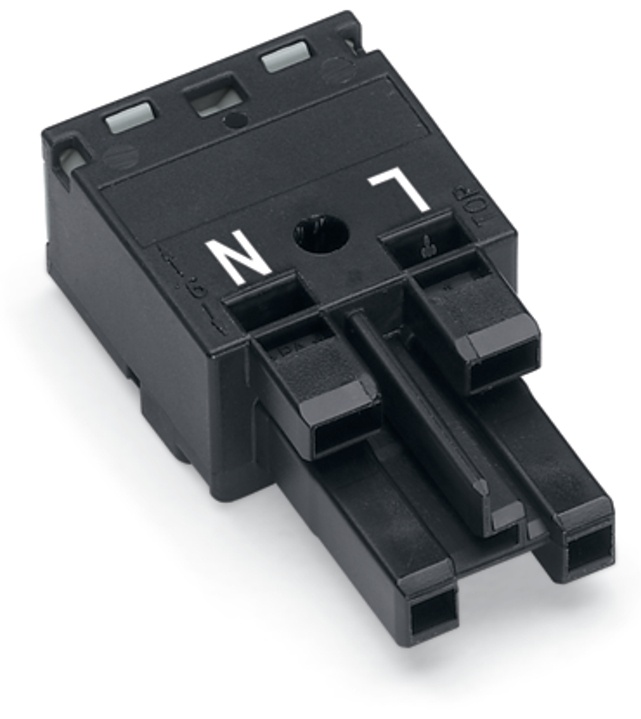

WAGO 770-202 Socket, 250 V, 20 to 12 AWG Wire, 2 Positions, 0.394 in, Polyamide 6.6
Part Number # 770-202
SKU # 2362032
$2.36 / Each
Typical price:$2.56 / Each
Wago 770-202 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-202 |
| SKU #: | 2362032 |
| Amperage Rating: | 25 A |
| Dimensions: | 0.508 in H x 0.787 in W x 1.476 in D |
| Number of Positions: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Terminal Type: | Push-In Spring |
| Wire Size: | 20 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 37.5 mm / 1.476 inch |
| Height: | 12.9 mm / 0.508 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L N |
| Material: | Polyamide 6.6 |
| Mounting type: | Free Hanging In-Line |
| Nominal cross-section: | 4 mm² |
| Potential marking: | L N |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 6.580 g |
| Width: | 20 mm / 0.787 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04050821028109 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.36 / Each
Typical price:$2.56 / Each
Quantity:
WAGO 770-202 Socket, 250 V, 20 to 12 AWG Wire, 2 Positions, 0.394 in, Polyamide 6.6
Brand: Wago
Part Number: 770-202
Additional Description: WAGO-770-202 SOCKET 2-POLE, BLACK 7700202
Catalog Description: Socket; 2-pole; Cod. A; 4,00 mm²; black
770-202 Application
For General mains applications770-202 Standards
RoHS Compliant|UL 1977|IP20|IEC/EN 60664-1SKU #2362032Part Number #770-202UNSPSC32151603UPC04050821028109
