770-203

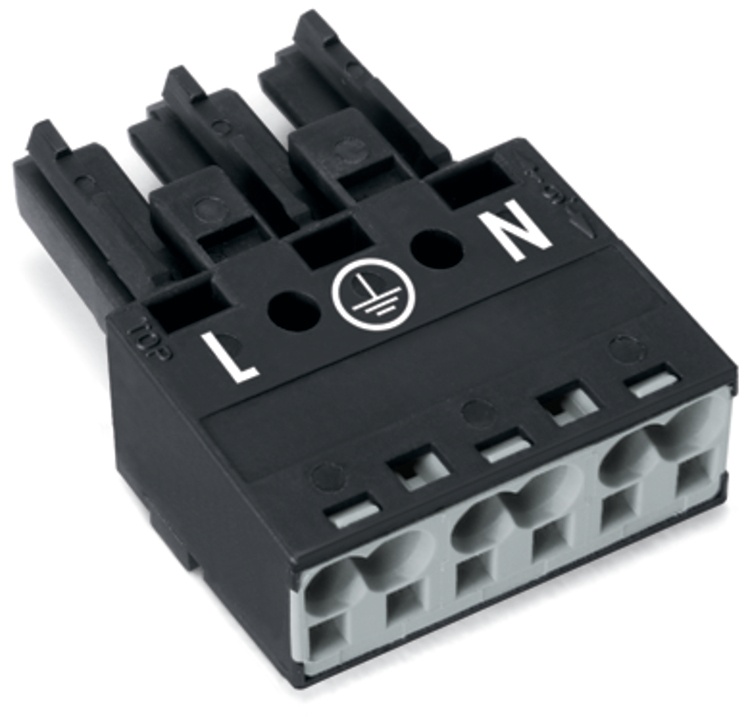

WAGO 770-203 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-203
SKU # 2148242
$2.97 / Each
Typical price:$3.22 / Each
Wago 770-203 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-203 |
| SKU #: | 2148242 |
| Dimensions: | 0.508 in H x 1.181 in W x 1.476 in D |
| Type: | Operating Tool |
| Wire Size: | 20 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 37.5 mm / 1.476 inch |
| Height: | 12.9 mm / 0.508 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | L ⏚ N |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | L ⏚ N |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 9.405 g |
| Width: | 30 mm / 1.181 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918252225 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.97 / Each
Typical price:$3.22 / Each
Quantity:
- WAGO, 770-203, Socket, Operating Tool, 250 V, 20 to 12 AWG Wire, 0.394 in Pitch/Row Spacing, Polyamide (PA66), Black, 0.508 in H x 1.181 in W x 1.476 in D Dimensions
770-203 Application
For General mains applications770-203 Item Features
- Effective protection against mismating
- Pre-assembled versions
- Exact dimensions
- Convenient installation and commissioning
770-203 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2148242Part Number #770-203UNSPSC32151603UPC04044918252225
