Part Number # 770-205
SKU # 2326381
Image Disclaimers Message
Brand: Wago
770-205

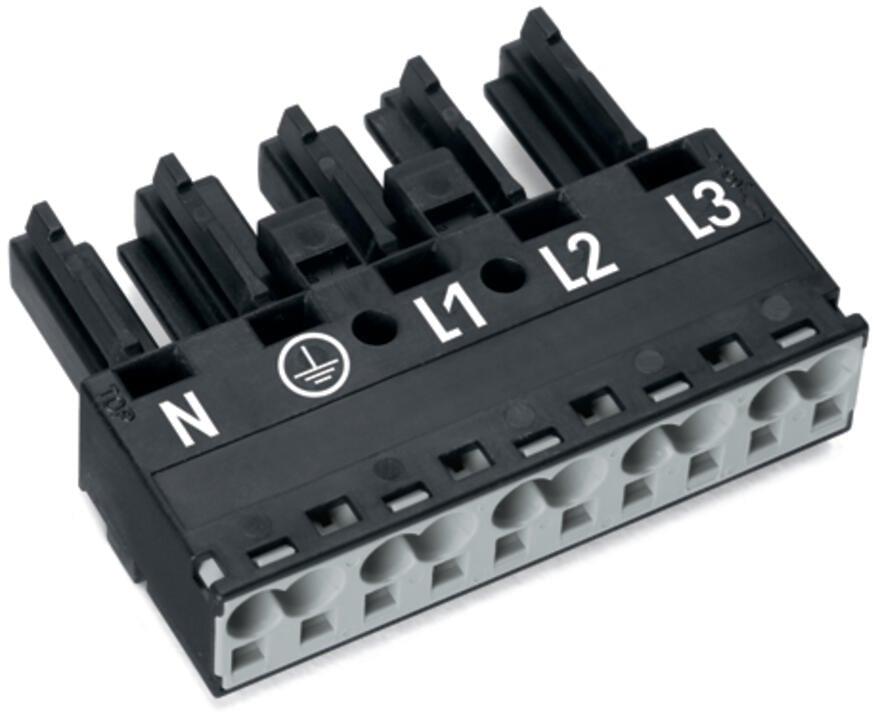

WAGO 770-205 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-205
SKU # 2326381
$5.00 / Each
Typical price:$5.42 / Each
Wago 770-205 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-205 |
| SKU #: | 2326381 |
| Dimensions: | 0.508 in H x 1.969 in W x 1.476 in D |
| Type: | Operating Tool |
| Wire Size: | 20 to 12 AWG |
| Actuation type: | Operating tool || Push-in |
| Application: | General mains applications |
| Coding: | A |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 37.5 mm / 1.476 inch |
| Height: | 12.9 mm / 0.508 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | N ⏚ L1 L2 L3 |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | N ⏚ L1 L2 L3 |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 10 |
| Weight: | 15.665 g |
| Width: | 50 mm / 1.969 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918252324 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.00 / Each
Typical price:$5.42 / Each
Quantity:
WAGO 770-205 Programmable Logic Controller Distributed On Machine I/O Subsystem
Brand: Wago
Part Number: 770-205
Additional Description: WAGO-770-205 SOCKET 5-POLE; BLACK 51110226
Catalog Description: Socket; 5-pole; Cod. A; 4,00 mm²; black
770-205 Application
For General mains applications770-205 Item Features
- Pluggable installation connectors with protection against mismating
- Simple circuits
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
770-205 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2326381Part Number #770-205UNSPSC32151603UPC04044918252324
