Brand: Wago

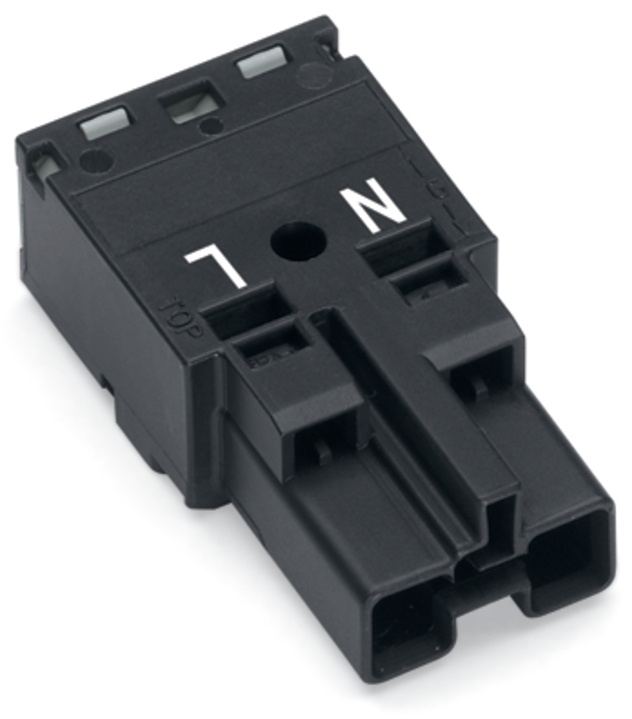

WAGO 770-212 Plug, 250 V, 20 to 12 AWG Wire, 0.394 in, Polyamide 6.6
Image Disclaimers Message
Brand: Wago
WAGO 770-212 Plug, 250 V, 20 to 12 AWG Wire, 0.394 in, Polyamide 6.6
Brand: Wago
WAGO 770-212 Plug, 250 V, 20 to 12 AWG Wire, 0.394 in, Polyamide 6.6
Part #:770-212
SKU #: 2362033
$1.78/EA
Key Features
Part #:770-212
SKU #: 2362033
Brand: Wago
Amperage Rating: 25 A
Dimensions: 0.508 in H x 0.787 in W x 1.476 in D
Temperature Rating (Degrees F): -35 to 85 deg C
Terminal Type: Push-In Spring
Voltage Rating: 250 V
$1.78/EA
Specifications
Brand: Wago
Amperage Rating: 25 A
Dimensions: 0.508 in H x 0.787 in W x 1.476 in D
Temperature Rating (Degrees F): -35 to 85 deg C
Terminal Type: Push-In Spring
Voltage Rating: 250 V
Wire Size: 20 to 12 AWG
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: Black
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 37.5 mm / 1.476 inch
Height: 12.9 mm / 0.508 inch
Insulation material: Polyamide (PA66)
Marking: L N
Material: Polyamide 6.6
Mounting type: Free Hanging In-Line
Nominal cross-section: 4 mm²
Potential marking: L N
Protection type: IP20
Rated current: 25 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
Total number of connection points: 4
Weight: 6.486 g
Width: 20 mm / 0.787 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151603
UPC: 04050821028291
Item FeaturesFor General mains applications
Item FeaturesRoHS Compliant|UL 1977|IP20|IEC/EN 60664-1
