Part Number # 770-253
SKU # 2334423
Image Disclaimers Message
770-253

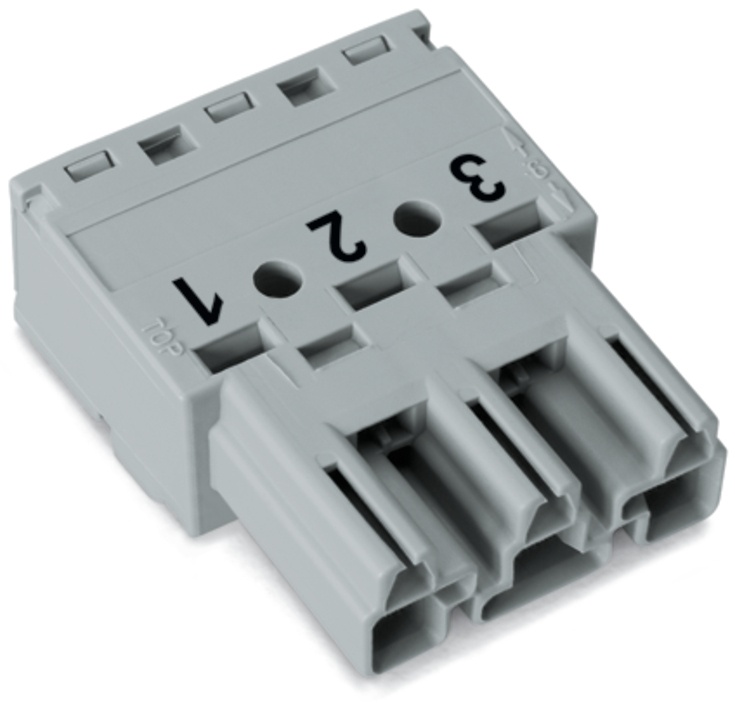

WAGO 770-253 Plug
Part Number # 770-253
SKU # 2334423
$3.03 / Each
Typical price:$3.28 / Each
Wago 770-253 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-253 |
| SKU #: | 2334423 |
| Amperage Rating: | 25 A |
| Dimensions: | 0.50 in H x 1.18 in W x 1.47 in D |
| Finish: | Gray |
| Number of Positions: | 6 |
| Series: | 770 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | 3-Pole |
| Wire Size: | 0.35 in |
| Actuation type: | Operating tool || Push-in |
| Coding: | B |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 37.5 mm / 1.476 inch |
| Height: | 12.9 mm / 0.508 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | 1 2 3 |
| Material: | Polyamide (PA66) |
| Nominal cross-section: | 4 mm² |
| Potential marking: | 1 2 3 |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 9.956 g |
| Width: | 30 mm / 1.181 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04044918253963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.03 / Each
Typical price:$3.28 / Each
Quantity:
WAGO 770-253 Plug
Brand: Wago
Part Number: 770-253
WAGO, 770-253, Plug, 3-Pole, Series: 770, 250 V, 25 A, 6 Positions, 0.35 in Wire, 0.39 in Pitch/Row Spacing, -35 to 85 deg C, Polyamide (PA66), Gray, 0.50 in H x 1.18 in W x 1.47 in D Dimensions
Additional Description: WAGO-770-253 PLUG 3-POLE, GRAY 51110390
Catalog Description: Plug; 3-pole; Cod. B; 4,00 mm²; gray
770-253 Application
For Control technology770-253 Item Features
- Protection against mismating eliminates errors
- With B coding for controllers such as lighting fixtures and sun blinds
- Ready for immediate use
- Rapid, structured electrical installation
770-253 Standards
RoHS CompliantSKU #2334423Part Number #770-253UNSPSC32151603UPC04044918253963
