770-292

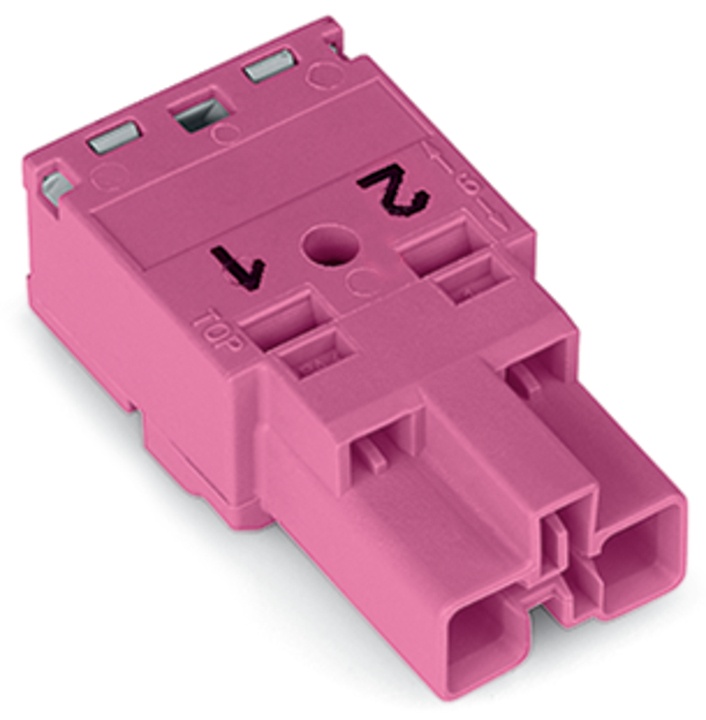

WAGO 770-292 Programmable Logic Controller Distributed On Machine I/O Subsystem
Part Number # 770-292
SKU # 2340407
$2.33 / Each
Typical price:$2.52 / Each
Wago 770-292 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 770-292 |
| SKU #: | 2340407 |
| Amperage Rating: | 25 A |
| Dimensions: | 0.508 in H x 0.787 in W x 1.476 in D |
| Number of Positions: | 2 |
| Temperature Rating (Degrees F): | -5 to 40 deg C |
| Type: | Operating Tool |
| Actuation type: | Operating tool || Push-in |
| Coding: | B |
| Color: | Pink |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper or copper alloy (surface-treated) |
| Country of origin: | DE |
| Depth: | 37.5 mm / 1.476 inch |
| Height: | 12.9 mm / 0.508 inch |
| Insulation material: | Polyamide (PA66) |
| Marking: | 1 2 |
| Material: | Polyamide |
| Nominal cross-section: | 4 mm² |
| Potential marking: | 1 2 |
| Protection type: | IP20 |
| Rated current: | 25 A |
| Solid conductor: | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 6.426 g |
| Width: | 20 mm / 0.787 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04050821541929 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.33 / Each
Typical price:$2.52 / Each
Quantity:
WAGO 770-292 Programmable Logic Controller Distributed On Machine I/O Subsystem
Brand: Wago
Part Number: 770-292
Additional Description: WAGO-770-292 PLUG 2-POLE, PINK 7700292
Catalog Description: Plug; 2-pole; Cod. B; 4,00 mm²; pink
770-292 Application
For use in automation of processes, such as lighting technology770-292 Item Features
- Pluggable installation connectors with protection against mismating
- Ready for immediate use
- Rapid, structured electrical installation
770-292 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2340407Part Number #770-292UNSPSC32151603UPC04050821541929
