Brand: Wago

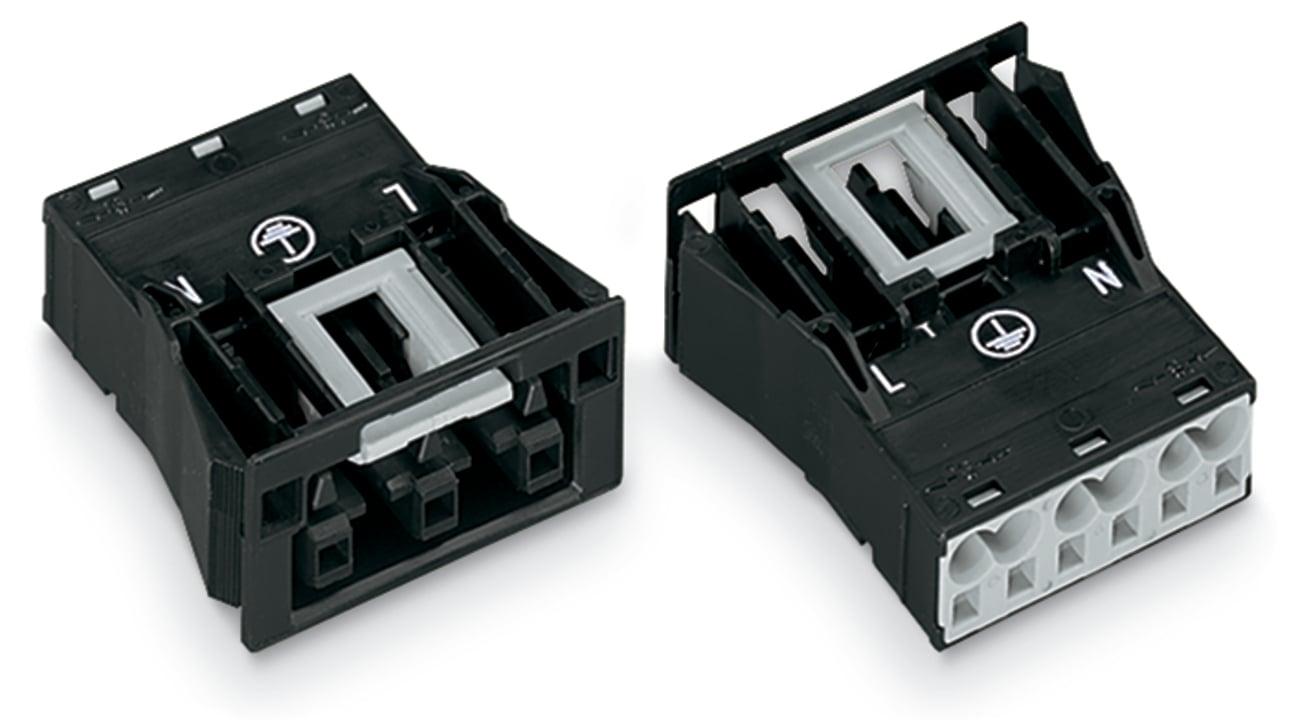

WAGO 770-703 WINSTA through-panel socket (female)
Part Number # 770-703
SKU # 2363768
$2.71 / Each
Wago 770-703 Key Features
Brand: Wago
Part Number # 770-703
SKU #2363768
Dimensions: 0.689 in H x 1.398 in W x 1.476 in D
Type: Operating Tool
Voltage Rating: 250 V
Wire Size: 20 to 12 AWG
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: Black
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 36 mm / 1.417 inch
Height: 17.5 mm / 0.689 inch
Insulation material: Polyamide (PA66)
Marking: L ⏚ N
Material: Polyamide (PA66)
Mounting type: Flange/Snap-In, Snap-in
Nominal cross-section: 4 mm²
Potential marking: L ⏚ N
Protection type: IP20
Rated current: 25 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
Total number of connection points: 6
Weight: 11.930 g
Width: 35.5 mm / 1.398 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151603
UPC: 04044918252560
$2.71 / Each
- WAGO, 770-703, Socket, Operating Tool, 250 V, 20 to 12 AWG Wire, 0.394 in Pitch/Row Spacing, Flange/Snap-In Mounting, Polyamide (PA66), Black, 0.689 in H x 1.398 in W x 1.476 in D Dimensions
770-703 Application
For General mains applications770-703 Item Features
- Pluggable installation connectors with protection against mismating
- Pre-assembled versions
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
770-703 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2363768Part Number #770-703UNSPSC32151603UPC04044918252560
