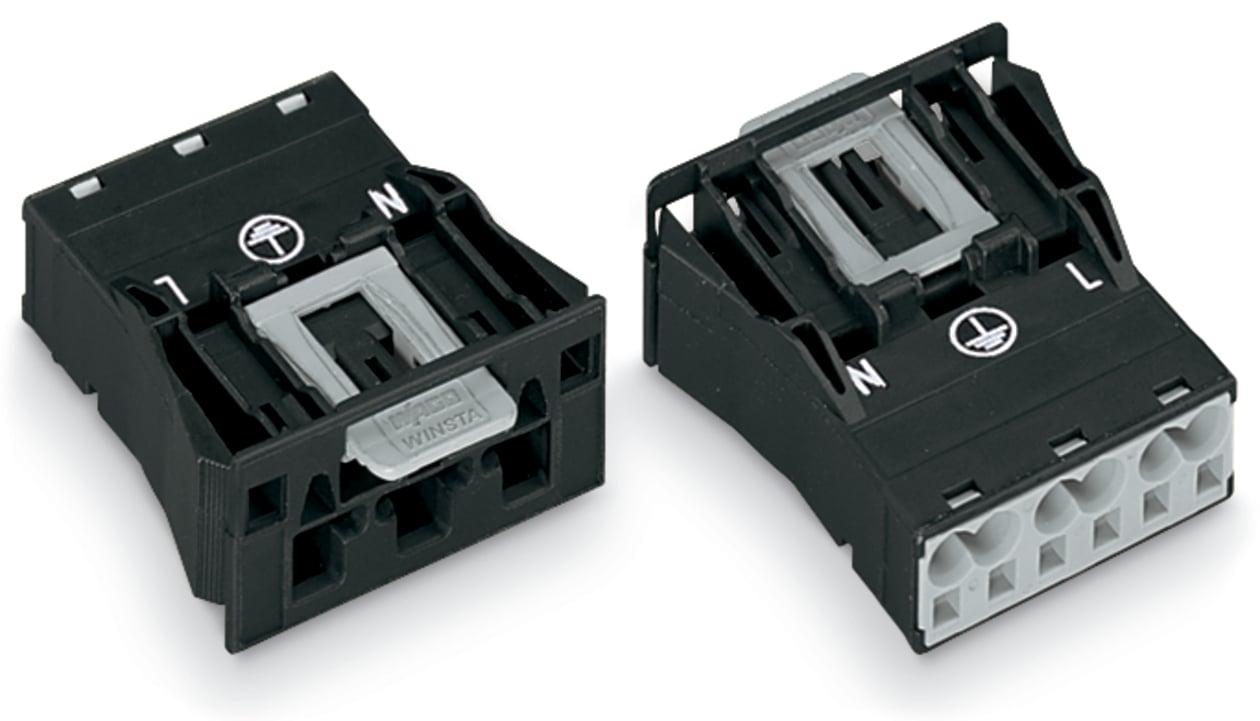

WAGO 770-713 WINSTA through-panel plug (male)
Part Number # 770-713
SKU # 2340247
$2.34 / Each
Wago 770-713 Key Features
Brand: Wago
Part Number # 770-713
SKU #2340247
Amperage Rating: 25 A
Dimensions: 0.689 in H x 1.398 in W x 1.618 in D
Number of Positions: 3
Temperature Rating (Degrees F): -5 to 40 deg C
Type: Operating Tool
Voltage Rating: 250 V
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: Black
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 36 mm / 1.417 inch
Height: 17.5 mm / 0.689 inch
Insulation material: Polyamide (PA66)
Marking: L ⏚ N
Material: Polyamide
Mounting type: Flange/Snap-In, Snap-in
Nominal cross-section: 4 mm²
Potential marking: L ⏚ N
Protection type: IP20
Rated current: 25 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
Total number of connection points: 6
Weight: 12.200 g
Width: 35.5 mm / 1.398 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151603
UPC: 04044918254199
$2.34 / Each
- WAGO, 770-713, Snap-In Plug Cod, Operating Tool, 250 V, 25 A, 3 Positions, 0.394 in Pitch/Row Spacing, Flange/Snap-In Mounting, -5 to 40 deg C, Polyamide, Black, 0.689 in H x 1.398 in W x 1.618 in D Dimensions
770-713 Application
For General mains applications770-713 Item Features
- Pluggable installation connectors with protection against mismating
- Custom-engineered solutions
- Rapid, structured electrical installation
770-713 Standards
IEC/EN 60664-1|RoHS CompliantSKU #2340247Part Number #770-713UNSPSC32151603UPC04044918254199
