Part Number # 787-1017
SKU # 2347259
Image Disclaimers Message
787-1017

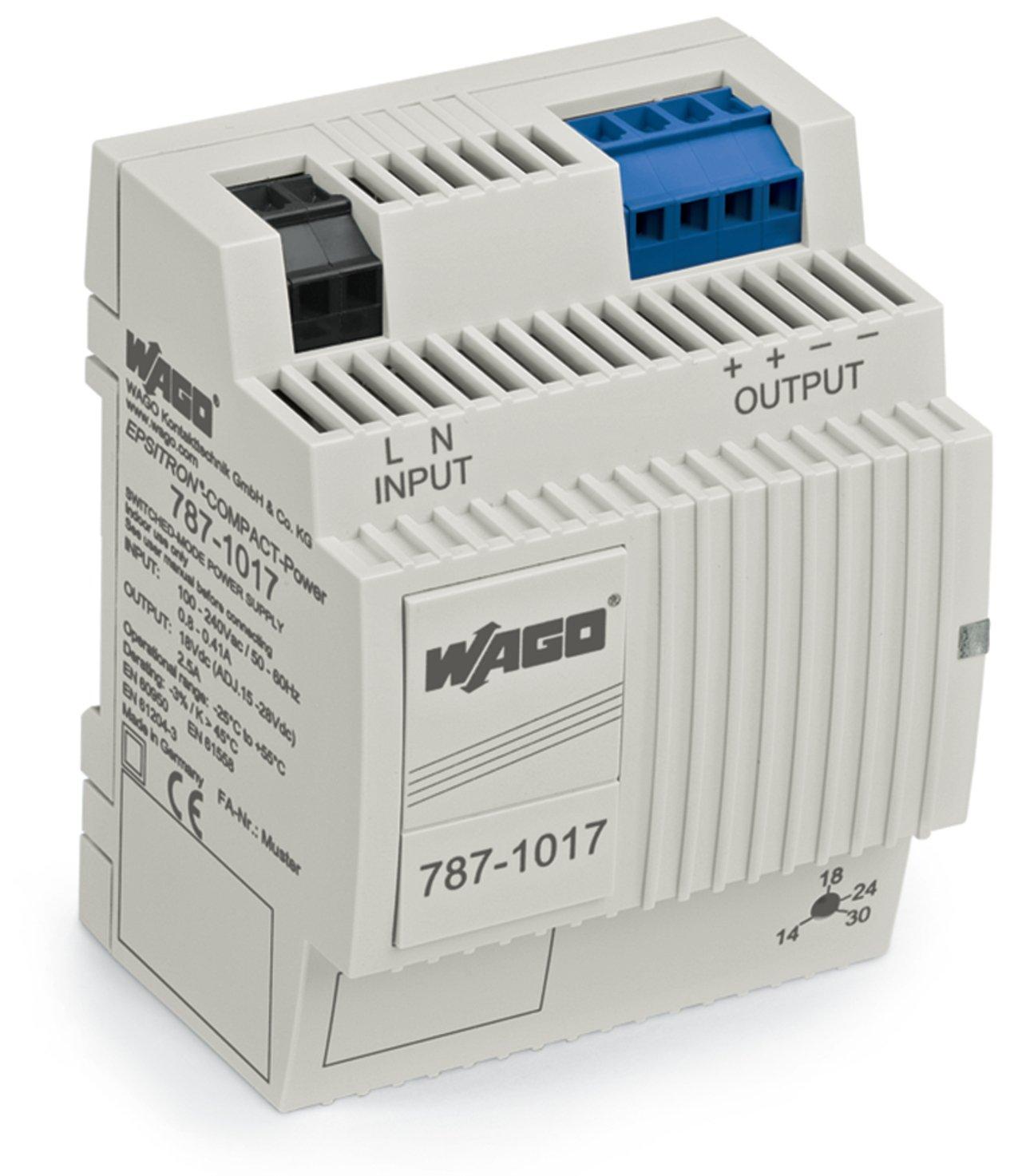

WAGO 787-1017 EPSITRON COMPACT power supply
Part Number # 787-1017
SKU # 2347259
$204.62 / Each
Wago 787-1017 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-1017 |
| SKU #: | 2347259 |
| Frequency Rating: | 44 to 66 Hz |
| Input Voltage: | 300 V |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 2.323 in, 59 mm / 2.323 inch |
| Height: | 3.504 in, 89 mm / 3.504 inch |
| Inrush current: | ≤ 30 A (NTC) |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 18 VDC |
| Output voltage range: | DC 15 … 28 V (adjustable) |
| Parallel operation: | Yes |
| Power factor correction (PFC): | Passive |
| Protection class: | II |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |
| Signaling: | 1 x Status indication LED (green) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 60950-1; EN 61204-3; UL 60950-1; UL 508 |
| Transient suppression (primary): | Varistor |
| WAGO Connector: | WAGO 740 Series |
| Weight: | 264.000 g |
| Width: | 2.83 in, 72 mm / 2.835 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821595731 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$204.62 / Each
Quantity:
- WAGO, 787-1017, 1-Phase, 300 V Input, 18 VDC Output, 44 to 66 Hz Frequency, DIN Rail Mounting, 2.83 in Width, 2.323 in Depth, 3.504 in Height
787-1017 Application
Ideal for distribution boards/boxes , Suitable for both parallel and series operation787-1017 Item Features
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Overhead mounting is possible with derating
787-1017 Standards
EN 61010-1|EN 61010-2-201|EN 61204-3|UL 60950-1|UL 508|RoHS Compliant|CE|IP20SKU #2347259Part Number #787-1017UNSPSC43232306UPC04050821595731
