Part Number # 787-1601
SKU # 2346374
Image Disclaimers Message
Brand: Wago
787-1601

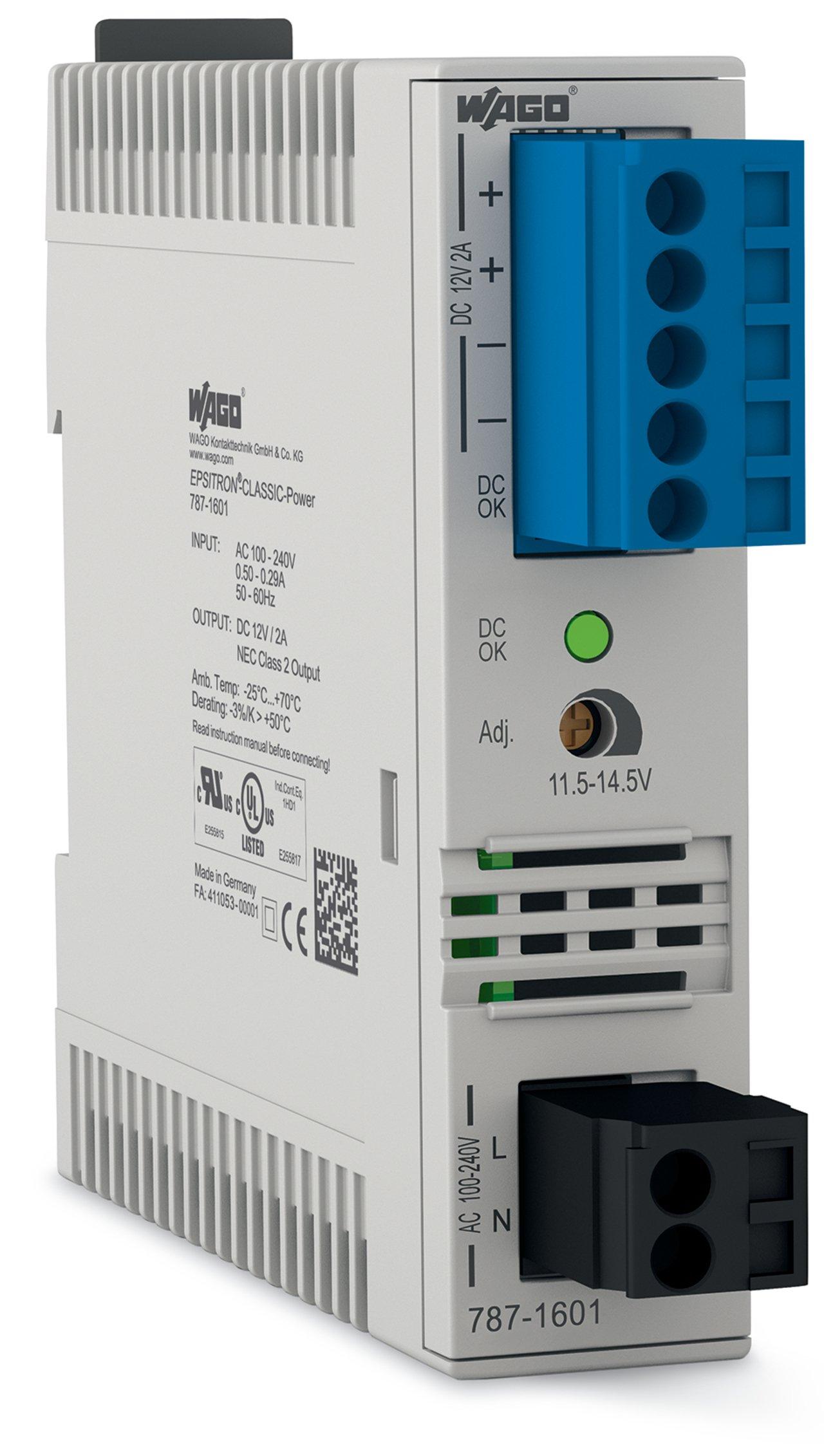

WAGO 787-1601 EPSITRON CLASSIC power supply
Part Number # 787-1601
SKU # 2346374
$127.72 / Each
Wago 787-1601 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-1601 |
| SKU #: | 2346374 |
| Amperage Rating: | 2 A |
| Frequency Rating: | 44 to 66 Hz |
| Input Voltage: | 100 to 240 V AC, 100 to 240 VAC |
| Series: | 787 |
| Type: | 1-Phase |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 4.23 in |
| Height: | 3.54 in, 90 mm / 3.543 inch |
| Inrush current: | ≤ 30 A |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 12 V DC, 12 VDC |
| Output voltage range: | DC 11.5 … 14.5 V (adjustable) |
| Parallel operation: | Yes |
| Power factor correction (PFC): | Passive |
| Protection class: | II |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |
| Signaling: | 1 x LED DC OK (green) || 1 x Active signal output DC OK (12 VDC; 40 mA) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 60950-1; EN 61204-3; EN 60335-1; UL 60950-1; UL 508; GL |
| Transient suppression (primary): | Varistor |
| WAGO Connector: | WAGO 721 Series |
| Weight: | 128.000 g |
| Width: | 0.88 in, 22.5 mm / 0.886 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143060400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$127.72 / Each
Quantity:
- WAGO, 787-1601, Power Supply, 1-Phase, Series: 787, 100 to 240 V AC Input, 12 VDC Output, 2 A, 44 to 66 Hz Frequency, DIN Rail Mounting, 0.88 in Width, 4.23 in Depth, 3.54 in Height
787-1601 Application
Suitable for both parallel and series operation787-1601 Item Features
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Limited Power Source (LPS) per NEC Class 2
- Bounce-free switching signal (DC OK)
- Suitable for both parallel and series operation
- GL approval, also suitable for EMC 1 in conjunction with 787-980 Filter Module
787-1601 Standards
RoHS Compliant|EN 61010-1|EN 61010-2-201|EN 61204-3|EN 60335-1|UL 60950-1|UL 508|DNV GLSKU #2346374Part Number #787-1601UNSPSC43232306UPC04055143060400
