- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Limited Power Source (LPS) per NEC Class 2
- Bounce-free switching signal (DC OK)
- Suitable for both parallel and series operation
- Electrically isolated output voltage
Specifications
Brand: Wago
Amperage Rating: 4 A
Dimensions: 3.543 in H x 1.772 in W x 4.232 in D
Enclosure Type: IP20
Phase: 1 ph
Power Rating: 48 W
Series: 787
Temperature Rating (Degrees F): -25 to 70 deg C
Type: Switched Mode
Voltage Rating: 12 VDC
Wire Size: 28 to 12 AWG
Connection technology: CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: DE
Height: 90 mm / 3.543 inch
Inrush current: ≤ 30 A
Mounting type: DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage range: DC 11.5 … 14.5 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Passive
Protection class: II
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: 1 x LED DC OK (green) || 1 x Active signal output DC OK (12 VDC; 40 mA)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 60950-1; EN 61204-3; EN 60335-1; UL 60950-1; UL 508; GL
Transient suppression (primary): Varistor
WAGO Connector: WAGO 721 Series
Weight: 257.600 g
Width: 45 mm / 1.772 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143060448

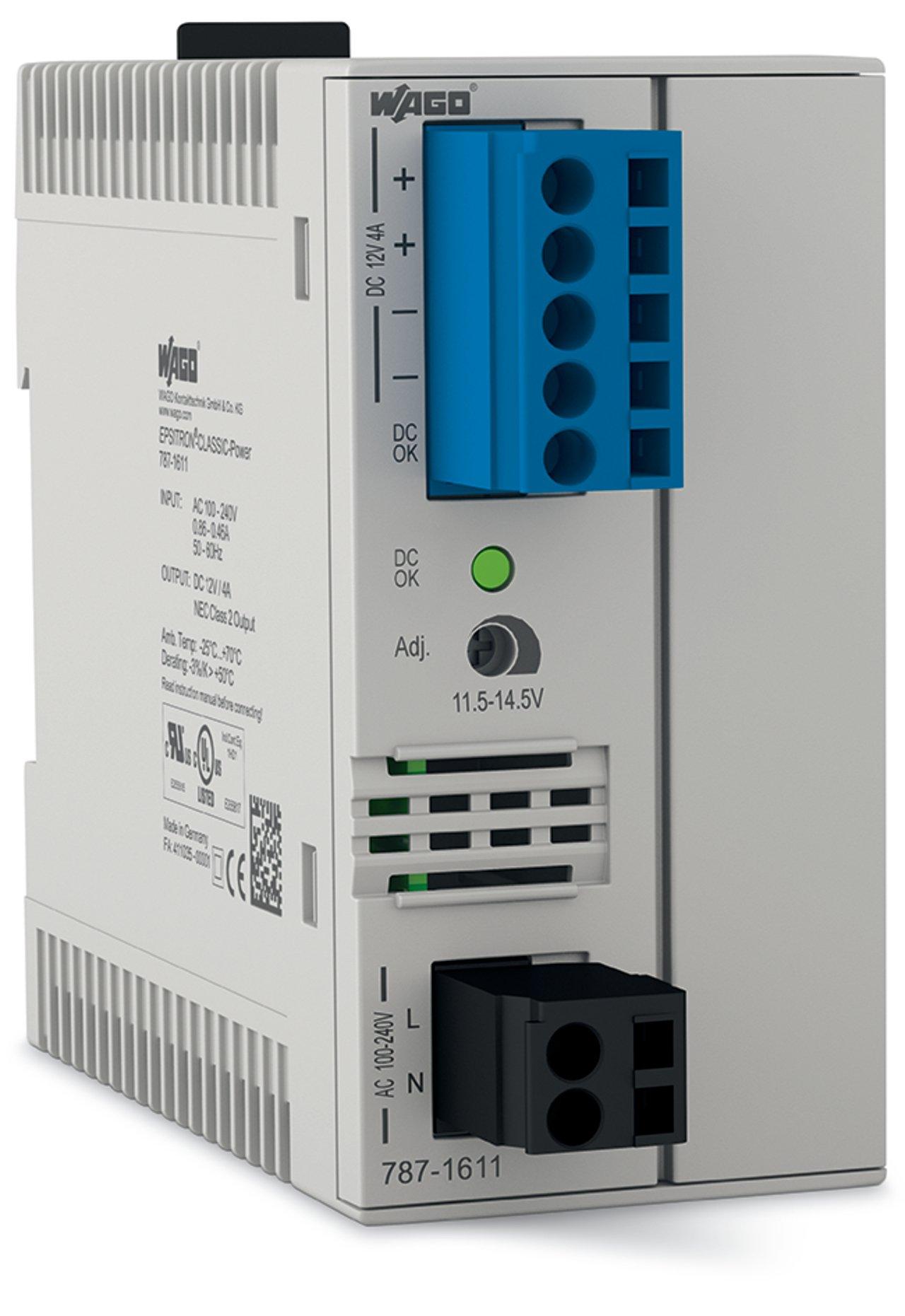

WAGO 787-1611 EPSITRON CLASSIC power supply
Additional Description: WAGO-787-1611 SWITCHED-MODE POWER SUPPLY; CLASSIC; 1-PHASE; 12 VDC OUTPUT VOLTAGE; 4 A OUTPUT CURRENT; NEC CLASS 2; DC OK SIGNAL 7871611 CLASSIC; 1-PHASE; 12 VDC OUTPUT VOLTAGE; 4 A OUTPUT CURRENT; NEC CLASS 2; DC OK SIGNAL 07871611
Catalog Description: Switched-mode power supply; Classic; 1-phase; 12 VDC output voltage; 4 A output current; NEC Class 2; DC OK signal
Item FeaturesSuitable for both parallel and series operation, EMC 1 in conjunction with 787-980 Filter Module
Item Features
Item FeaturesRoHS Compliant|CE Marked|IP20|EN 60721|EN 61010-1|EN 61010-2-201|EN 61204-3|EN 60335-1|UL 60950-1|UL 508|DNV|SEMI F47|EN 60529|NEC Class 2
