Brand: Wago

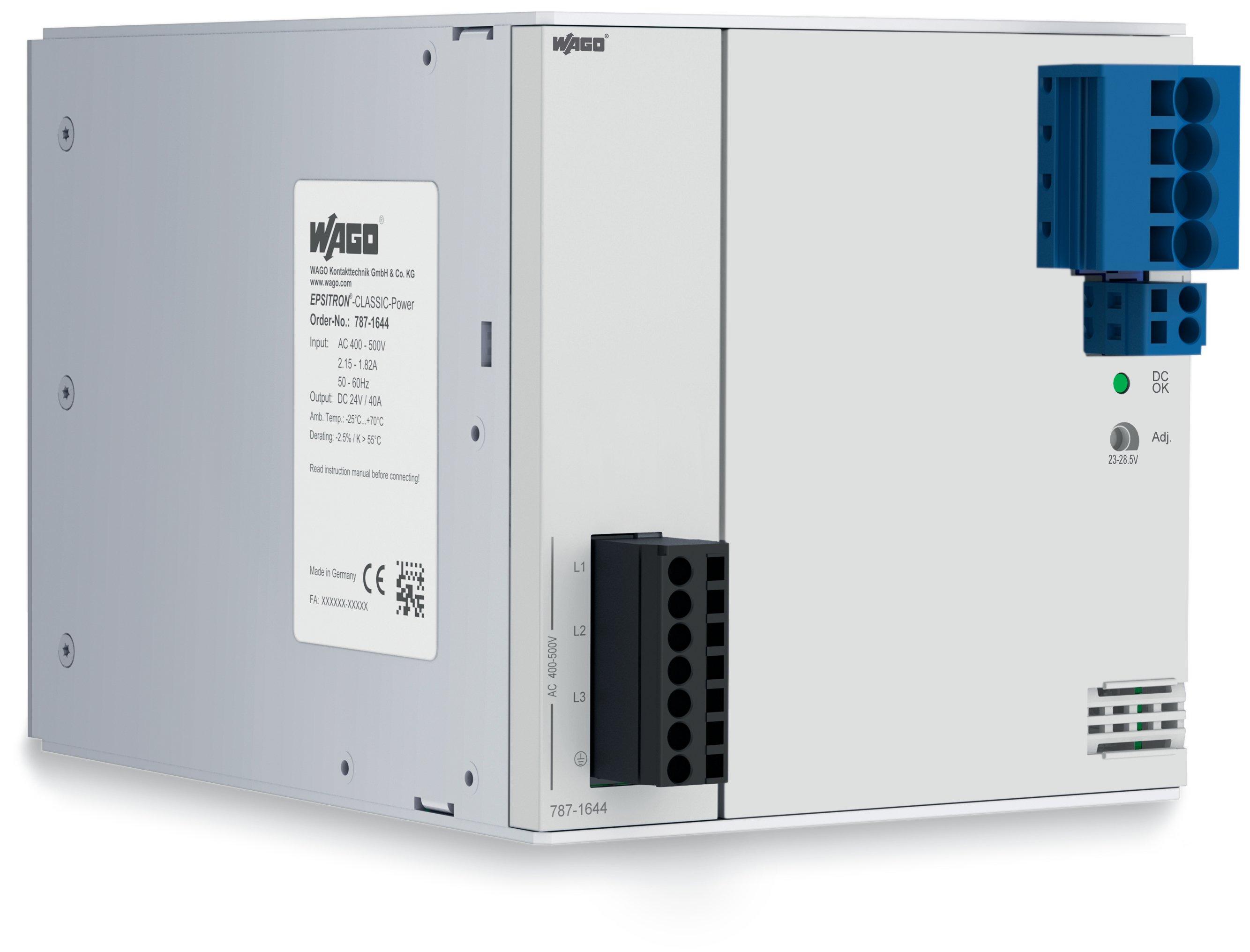

WAGO 787-1644 EPSITRON CLASSIC power supply
Image Disclaimers Message
Brand: Wago
WAGO 787-1644 EPSITRON CLASSIC power supply
Brand: Wago
WAGO 787-1644 EPSITRON CLASSIC power supply
Part #:787-1644
SKU #: 2304003
$538.46/EA
Key Features
Part #:787-1644
SKU #: 2304003
Brand: Wago
Amperage Rating: 40 A
Dimensions: 5 in H x 4.96 in W x 7.795 in D
Enclosure Type: IP20
Phase: 3 ph
Power Rating: 960 W
$538.46/EA
- Switched-mode power supply with TopBoost, enabling secondary-side protection via circuit breakers
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- DC OK contact
- Suitable for both parallel and series operation
- Electrically isolated output voltage (SELV)
Specifications
Brand: Wago
Amperage Rating: 40 A
Dimensions: 5 in H x 4.96 in W x 7.795 in D
Enclosure Type: IP20
Phase: 3 ph
Power Rating: 960 W
Series: 787
Temperature Rating (Degrees F): -25 to 70 deg C
Type: Switched Mode
Voltage Rating: 24 VDC
Wire Size: 28 to 12 AWG
Connection technology: CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: DE
Height: 127 mm / 5 inch
Inrush current: ≤ 30 A (NTC)
Mounting type: DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage range: DC 23 … 28.5 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Passive
Protection class: I
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: 1 x LED DC OK (green) || 1 x DC OK contact (make contact; max. 30 VAC/DC; 1 A)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 60950-1; EN 61204-3; UL 60950-1; UL 508; DNV GL
Transient suppression (primary): Varistor
WAGO Connector: WAGO 721 Series
Weight: 2800.000 g
Width: 126 mm / 4.96 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143259187
WAGO 787-1644 EPSITRON CLASSIC power supply
Additional Description: WAGO-787-1644 (N) SWITCHED-MODE POWER SUPPLY; CLASSIC; 3-PHASE; 24 VDC OUTPUT VOLTAGE; 40 A OUTPUT CURRENT; TOPBOOST; DC OK CONTACT 60252827 CLASSIC; 3-PHASE; 24 VDC OUTPUT VOLTAGE; 40 A OUTPUT CURRENT; TOPBOOST; DC OK CONTACT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Switched-mode power supply; Classic; 3-phase; 24 VDC output voltage; 40 A output current; TopBoost; DC OK contact
Item FeaturesSuitable for both parallel and series operation
Item Features
Item FeaturesRoHS Compliant|UL 60950-1|EN 60204
