Part Number # 787-1664
SKU # 2295127
Image Disclaimers Message
787-1664

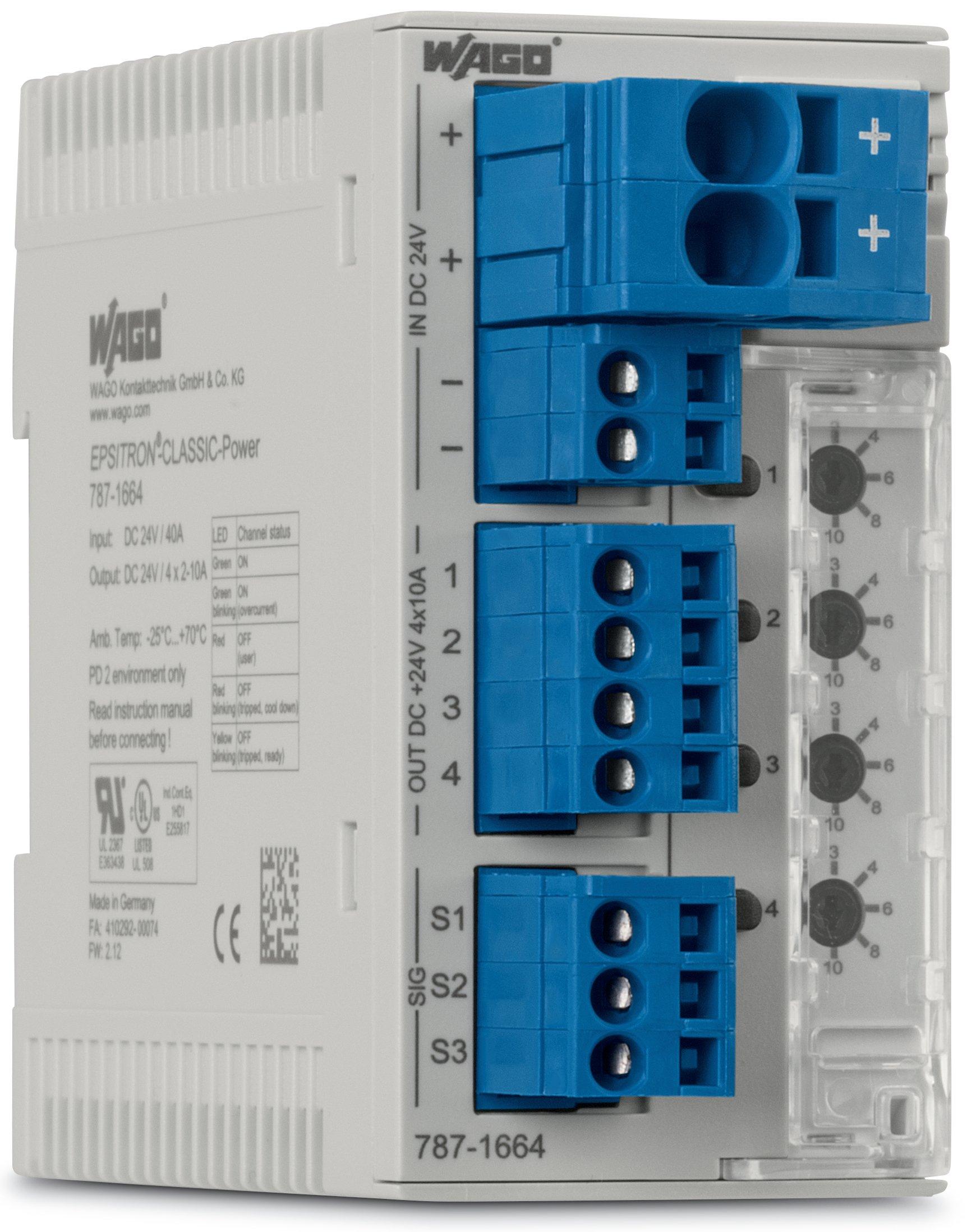

WAGO 787-1664 Electronic circuit breaker
Part Number # 787-1664
SKU # 2295127
$257.25 / Each
Typical price:$262.50 / Each
Wago 787-1664 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-1664 |
| SKU #: | 2295127 |
| Amperage Rating: | 10 A |
| Dimensions: | 33 in H x 1.772 in W x 4.547 in D |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Height: | 90 mm / 3.543 inch |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (per IEC 61709) |
| Output voltage range: | DC 18 … 30 V (Ue − voltage drop) |
| Protection class: | III |
| Protection type: | IP20 (per EN 60529) |
| Remote input: | Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence |
| Reverse voltage protection: | No |
| Signaling: | 4 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2; S3) |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Standards/Specifications: | EN 60950; EN 61000-6-2; EN 61000-6-3; UL 508; UL 2367; DNV GL |
| Switch-on behavior: | Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s) |
| Total number of channels (module): | 4 |
| Transient suppression (primary): | Suppressor diode (33 V) |
| Voltage drop: | ≤ 200 mV (Input (+)) |
| WAGO Connector: | WAGO 831 Series |
| Weight: | 170.000 g |
| Width: | 45 mm / 1.772 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121004 |
| UPC: | 04050821502609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$257.25 / Each
Typical price:$262.50 / Each
Quantity:
WAGO 787-1664 Electronic circuit breaker
Brand: Wago
Part Number: 787-1664
Additional Description: WAGO-787-1664 ELECTRONIC CIRCUIT BREAKER; 4-CHANNEL; 24 VDC INPUT VOLTAGE; ADJUSTABLE 2 10 A; COMMUNICATION CAPABILITY; 10,00 MM 07871664
Catalog Description: Electronic circuit breaker; 4-channel; 24 VDC input voltage; adjustable 2 … 10 A; communication capability; 10,00 mm²
787-1664 Item Features
- Space-saving ECB with four channels
- One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
- Time-delayed switching of channels
- Tripped message (group signal)
- Status message for each channel via pulse sequence
- Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
787-1664 Standards
EN 61000-6-2|EN 61000-6-3|UL 508|UL 2367|DNV|RoHS Compliant|CE|IP20SKU #2295127Part Number #787-1664UNSPSC39121004UPC04050821502609
