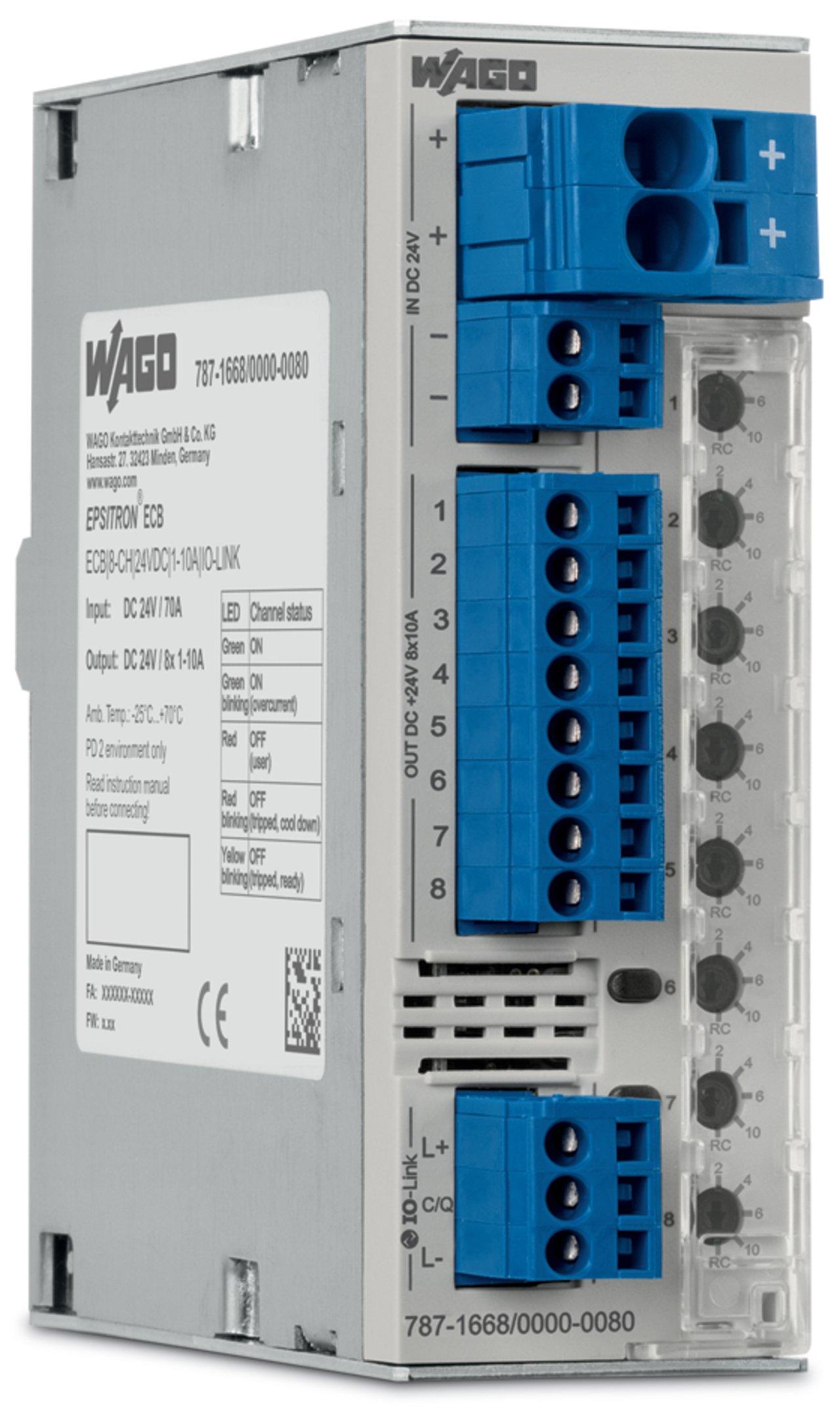

WAGO 787-1668/000-080 electronic circuit breaker
Part Number # 787-1668/000-080
SKU # 2367672
$508.31 / Each
Wago 787-1668/000-080 Key Features
Brand: Wago
Part Number # 787-1668/000-080
SKU #2367672
Amperage Rating: 1 to 10 A
Dimensions: 5 in H x 1.65 in W x 5.61 in D
Enclosure Type: IP20
Series: 787
Temperature Rating (Degrees F): -25 to 70 deg C
Type: 8-Channel
Voltage Rating: 24 VDC
Wire Size: 0.31 to 0.35 in
Connection technology: Push-in CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: DE
Height: 127 mm / 5 inch
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Output voltage range: DC 18 … 30 V (Ue − voltage drop)
Protection class: III
Protection type: IP20 (per EN 60529)
Remote input: Switching on/off any number of channels via IO-Link interface
Reverse voltage protection: No
Signaling: 8 x LED (green/red/orange) || 1 x IO-Link interface
Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
Standards/Specifications: EN 60950; EN 61000-6-2; EN 61000-6-3; UL 508; UL 2367; DNV GL
Switch-on behavior: Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s)
Total number of channels (module): 8
Transient suppression (primary): Suppressor diode (33 V)
Voltage drop: ≤ 200 mV (Input (+))
WAGO Connector: WAGO 831 Series
Weight: 440.000 g
Width: 42 mm / 1.654 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121004
UPC: 04055143899345
$508.31 / Each
WAGO 787-1668/000-080 electronic circuit breaker
Brand: Wago
Part Number: 787-1668/000-080
WAGO, 787-1668/000-080, Circuit Breaker, 8-Channel, Series: 787, 24 VDC, 1 to 10 A, Cage Clamp Connection, 0.31 to 0.35 in Wire, IP20 Enclosure, 35 mm DIN Rail Mounting, -25 to 70 deg C, 5 in H x 1.65 in W x 5.61 in D Dimensions
Additional Description: WAGO-787-1668/000-080 ELECTRONIC CIRCUIT BREAKER; 8-CHANNEL; 24 VDC INPUT VOLTAGE; ADJUSTABLE 1 10 A; IO-LINK 60367736
Catalog Description: Electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 1 … 10 A; IO-Link
787-1668/000-080 Application
Adjustable for each channel via sealable selector switch787-1668/000-080 Item Features
- Space-saving ECB with eight channels
- Nominal current 1 to 10 A (adjustable for each channel via sealable selector switch or IO-Link interface)
- Switch-on capacity greater than 50000 uF per channel
- One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
- Time-delayed switching of channels
- Status message and current measurement of each individual channel via IO-Link interface
- Switch on/off each channel separately via IO-Link interface
787-1668/000-080 Standards
RoHS Compliant|EN 61000-6-2|EN 61000-6-3|UL 508|UL 2367|DNV GLSKU #2367672Part Number #787-1668/000-080UNSPSC39121004UPC04055143899345
