787-1668

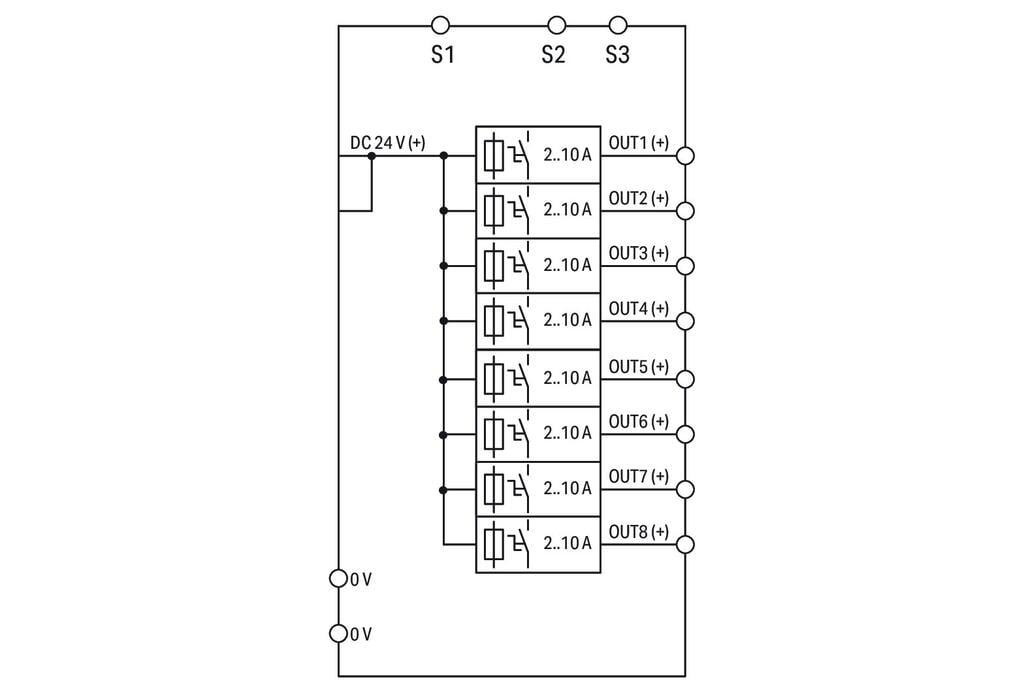

WAGO 787-1668 Electronic circuit breaker
Part Number # 787-1668
SKU # 2257289
$430.22 / Each
Typical price:$439.00 / Each
Wago 787-1668 Key Features
Brand: | Wago |
---|---|
Part Number # : | 787-1668 |
SKU #: | 2257289 |
Amperage Rating: | 10 A |
Dimensions: | 5 in H x 1.654 in W x 5.61 in D |
Connection technology: | Push-in CAGE CLAMP® |
Connection type: | Push-In |
Country of origin: | DE |
Height: | 127 mm / 5 inch |
Mounting type: | 35 mm DIN Rail, DIN-35 rail |
MTBF: | > 500,000 h (per IEC 61709) |
Output voltage range: | DC 18 … 30 V (Ue − voltage drop) |
Protection class: | III |
Protection type: | IP20 (per EN 60529) |
Remote input: | Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence |
Reverse voltage protection: | No |
Signaling: | 8 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2; S3) |
Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
Standards/Specifications: | EN 60950; EN 61000-6-2; EN 61000-6-3; UL 508; UL 2367; DNV GL |
Switch-on behavior: | Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s) |
Total number of channels (module): | 8 |
Transient suppression (primary): | Suppressor diode (33 V) |
Voltage drop: | ≤ 200 mV (Input (+)) |
WAGO Connector: | WAGO 831 Series |
Weight: | 440.000 g |
Width: | 42 mm / 1.654 inch |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121004 |
UPC: | 04050821502593 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$430.22 / Each
Typical price:$439.00 / Each
Quantity:
WAGO 787-1668 Electronic circuit breaker
Brand: Wago
Part Number: 787-1668
Additional Description: WAGO-787-1668 ELECTRONIC CIRCUIT BREAKER; 8-CHANNEL; 24 VDC INPUT VOLTAGE; ADJUSTABLE 2 10 A; COMMUNICATION CAPABILITY; 10,00 MM 07871668
Catalog Description: Electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 2 … 10 A; communication capability; 10,00 mm²
787-1668 Item Features
- Space-saving ECB with eight channels
- One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
- Time-delayed switching of channels
- Tripped message (group signal)
- Status message for each channel via pulse sequence
- Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
787-1668 Standards
EN 61000-6-2|EN 61000-6-3|UL 508|UL 2367|DNV|RoHS Compliant|CE|IP20SKU #2257289Part Number #787-1668UNSPSC39121004UPC04050821502593
