Part Number # 787-2810
SKU # 2339457
Image Disclaimers Message
Wago 787-2810 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-2810 |
| SKU #: | 2339457 |
| Enclosure Type: | IP20 |
| Input Amperage: | 0.5 A |
| Input Voltage: | 24 VDC |
| Output Amperage: | 0.5 A |
| Series: | 787 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Inrush current: | ≤ 0.5 A (at nominal input voltage) |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| MTBF: | > 1,800,000 h |
| Open-circuit-proof: | Yes |
| Output voltage: | 5, 10, 12 VDC |
| Output voltage range: | ±3 % |
| Parallel operation: | No |
| Protection class: | III |
| Protection type: | IP20 (per EN 60529) |
| Reverse voltage protection: | Yes |
| Short-circuit-protected: | Yes |
| Signaling: | 1 x LED DC OK (green) || 1 x Short circuit LED (red) || 1 x Active signal output (Ui, max. 4 mA) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; EN 60950-1; UL 61010-2-201 |
| WAGO Connector: | WAGO 857 Series |
| Weight: | 51.508 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143440745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$127.62 / Each
Quantity:

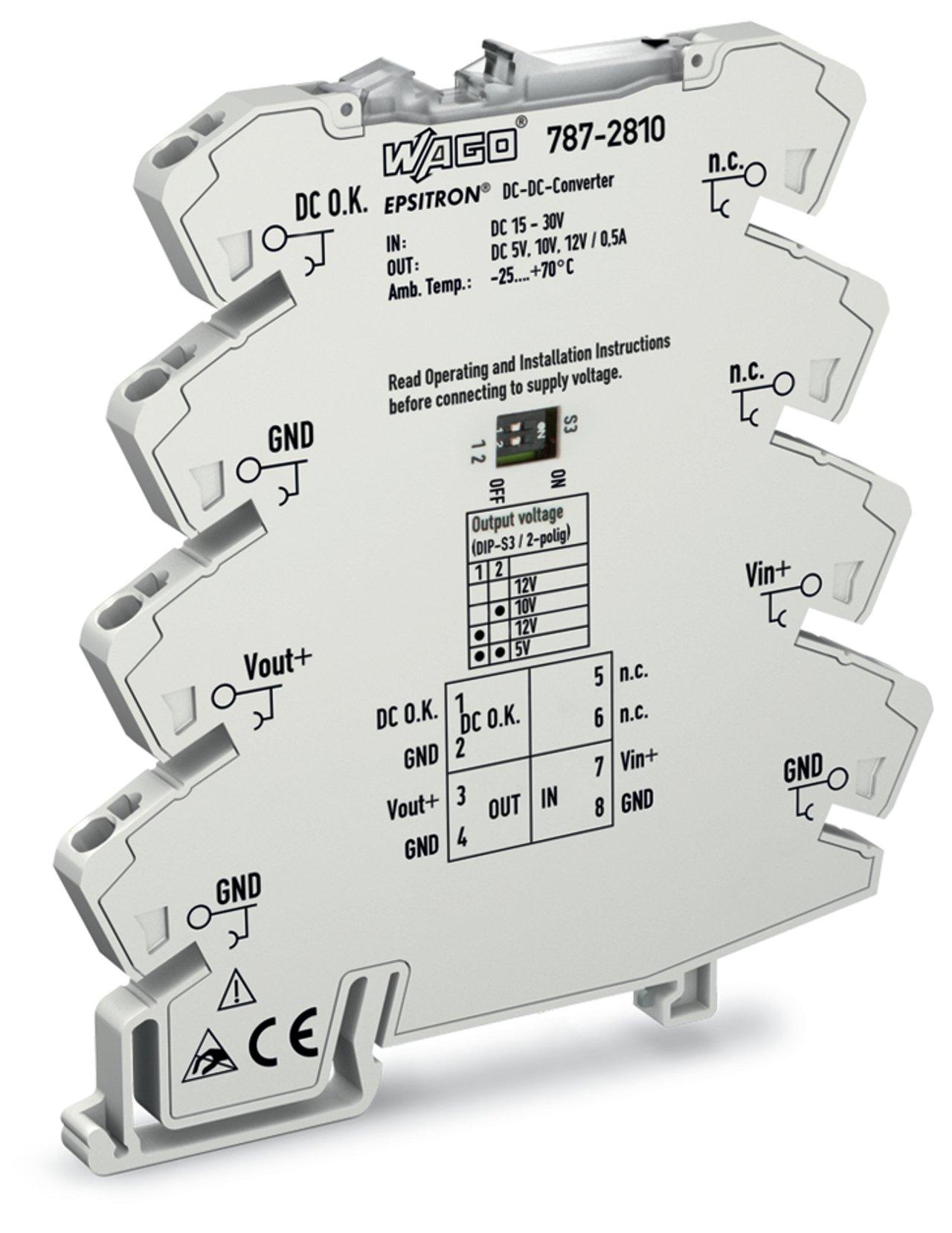

WAGO 787-2810 DC/DC converter
Brand: Wago
Part Number: 787-2810
Additional Description: WAGO-787-2810 DC/DC CONVERTER; 24 VDC INPUT VOLTAGE; 5/10/12 VDC ADJUSTABLE OUTPUT VOLTAGE; 0.5 A OUTPUT CURRENT; DC OK CONTACT 60296194 VOLTAGE; 5/10/12 VDC ADJUSTABLE CURRENT; DC OK CONTACT
Catalog Description: DC/DC Converter; 24 VDC input voltage; 5/10/12 VDC adjustable output voltage; 0.5 A output current; DC OK contact
787-2810 Item Features
- DC/DC converter in a compact 6 mm housing
- DC/DC converters (787-28xx) supply devices with 5, 10, 12 or 24 VDC from a 24 or 48 VDC power supply with an output power up to 12 W
- Output voltage monitoring via DC OK signal output
- Can be commoned with 857 and 2857 Series devices
- Comprehensive range of approvals for multiple applications
787-2810 Standards
RoHS Compliant|CE Marked|IP20|EN 60721|EN 61000-6-2|EN 61000-6-3|EN 60950-1|UL 61010-2-201|EN 60529SKU #2339457Part Number #787-2810UNSPSC43232306UPC04055143440745
