Part Number # 787-2852
SKU # 2351385
Image Disclaimers Message
787-2852

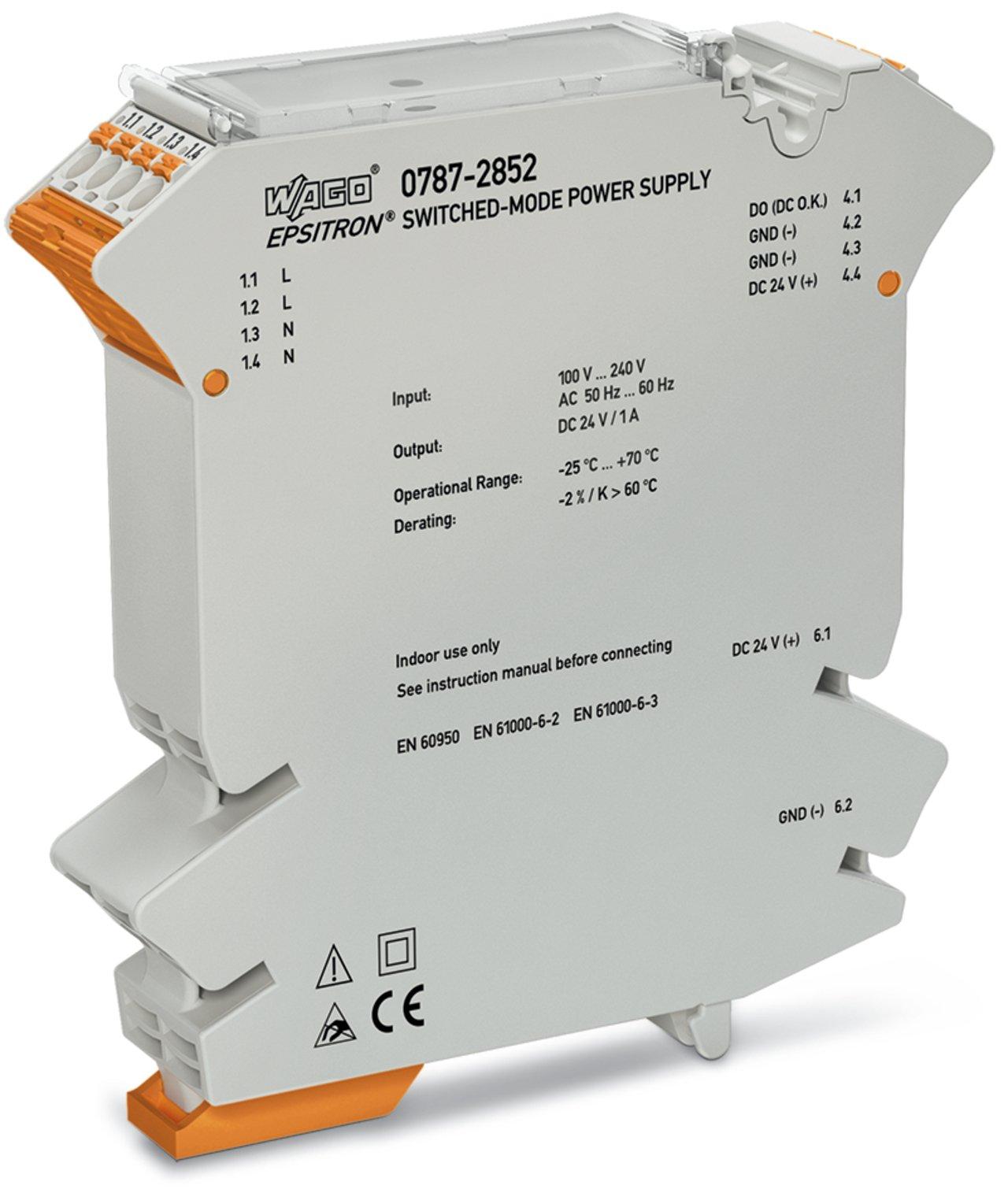

WAGO 787-2852 EPSITRON / JUMPFLEX power supply
Part Number # 787-2852
SKU # 2351385
$347.74 / Each
Wago 787-2852 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-2852 |
| SKU #: | 2351385 |
| Frequency Rating: | 47 to 63 Hz |
| Input Voltage: | 372 V |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 105 mm / 4.122 inch, 4.213 in |
| Height: | 4.122 in |
| Inrush current: | ≤ 30 A |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (at 25 °C per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 24 V DC, 24 VDC |
| Parallel operation: | Yes, for 2 devices of the same type |
| Power factor: | ≥ 0.6 (230 VAC; Nominal load; per EN 61000-3-2) |
| Power factor correction (PFC): | None |
| Protection class: | II |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |

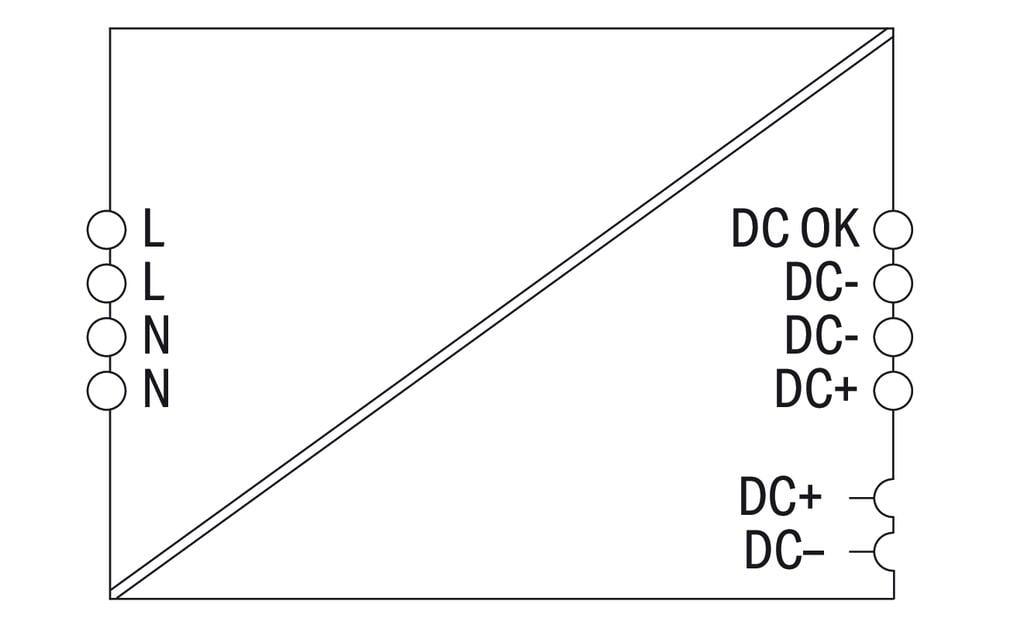

| Signaling: | 1 x LED DC OK (green) || 1 x Overload LED (red) || 1 x Active signal output DC OK (24 VDC; 20 mA) |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 10 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; EN 60950-1; UL 60950*; cULus 508*; ANSI-ISA 12.12.01 (Class I Div 2)*; ATEX/IEC Ex*; DNV GL (*pending) |
| Transient suppression (primary): | Varistor |
| WAGO Connector: | picoMAX® 5.0 |
| Weight: | 200.000 g |
| Width: | 0.88 in, 22.5 mm / 0.886 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143295529 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$347.74 / Each
Quantity:
- WAGO, 787-2852, 1-Phase, 372 V Input, 24 V DC Output, 47 to 63 Hz Frequency, DIN Rail Mounting, 0.88 in Width, 4.213 in Depth, 4.122 in Height
787-2852 Item Features
- Switched-mode power supply in 22.5 mm wide 2857 Series housing, device shares a common profile with the 2857 and 857 Series Signal Conditioners
- Pluggable picoMAX Connection Technology
- Natural convection cooling
- Integrated redundancy diode enables easy fail-safe power supply via parallel connection of two power supplies
787-2852 Standards
EN 61000-6-2|EN 61000-6-3|EN 60950-1|DNV|RoHS Compliant|ATEX/IECEx|UL 60950|cULus 508|ANSI/ISA 12.12.01 (Class I Div. 2)|ATEX/IEC Ex|CE|IP20SKU #2351385Part Number #787-2852UNSPSC43232306UPC04055143295529
