Part Number # 787-2861/100-000
SKU # 2367854
Image Disclaimers Message
Brand: Wago

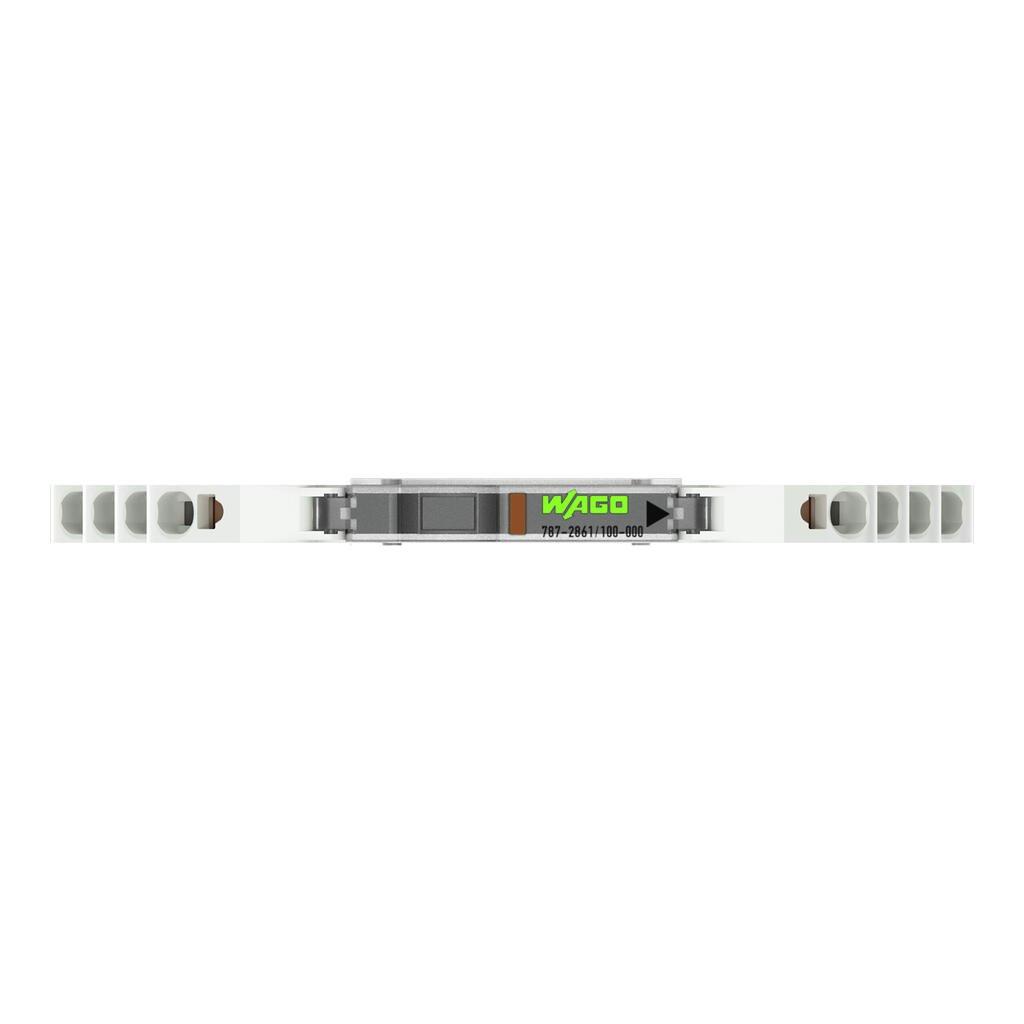

787-2861/100-000
WAGO 787-2861/100-000 Data Base User Interface And Query Software
Part Number # 787-2861/100-000
SKU # 2367854
$99.92 / Each
Wago 787-2861/100-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-2861/100-000 |
| SKU #: | 2367854 |
| Amperage Rating: | 1 A |
| Dimensions: | 3.701 in H x 0.236 in W x 3.85 in D |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 94 mm / 3.701 inch |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| MTBF: | 1,263,074 h (per MIL-HDBK-217F2) |
| Output voltage range: | DC 18 … 30 V (Ue − voltage drop) |
| Protection class: | III |
| Protection type: | IP20 (per EN 60529) |
| Remote input: | 18 … 30 VDC signal, switches on/off and resets the channel |
| Reverse voltage protection: | No |
| Signaling: | 1 x Status LED (green/yellow/red/blue) || 1 x Control input || 1 x Active signal output (Ui, max. 4 mA) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; UL 61010-2-201; DNV GL* (*pending) |
| Switch-on behavior: | Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms) |
| Total number of channels (module): | 1 |
| Transient suppression (primary): | Suppressor diode (33 V) |
| Voltage drop: | ≤ 25 mV |
| WAGO Connector: | WAGO 857 Series |
| Weight: | 54.628 g |
| Width: | 6 mm / 0.236 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143533249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$99.92 / Each
Quantity:
WAGO 787-2861/100-000 Data Base User Interface And Query Software
Brand: Wago
Part Number: 787-2861/100-000
Additional Description: WAGO-787-2861/100-000 ELECTRONIC CIRCUIT BREAKER; 1-CHANNEL; 24 VDC INPUT VOLTAGE; 1 A; COMMUNICATION CAPABILITY 60318263
Catalog Description: Electronic circuit breaker; 1-channel; 24 VDC input voltage; 1 A; Signal contact
787-2861/100-000 Item Features
- Space-saving ECB with one channel
- Reliably and safely trips in the event of an overload and short circuit on the secondary side
- Enables the use of an economical, standard power supply
- Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)
- Status signal - adjustable as single or group message
- Reset, switch on/off via remote input or local switch
- Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
787-2861/100-000 Standards
EN 61000-6-2|EN 61000-6-3|UL 61010-2-201|DNV|RoHS Compliant|CE|IP20SKU #2367854Part Number #787-2861/100-000UNSPSC43232306UPC04055143533249
