Brand: Wago

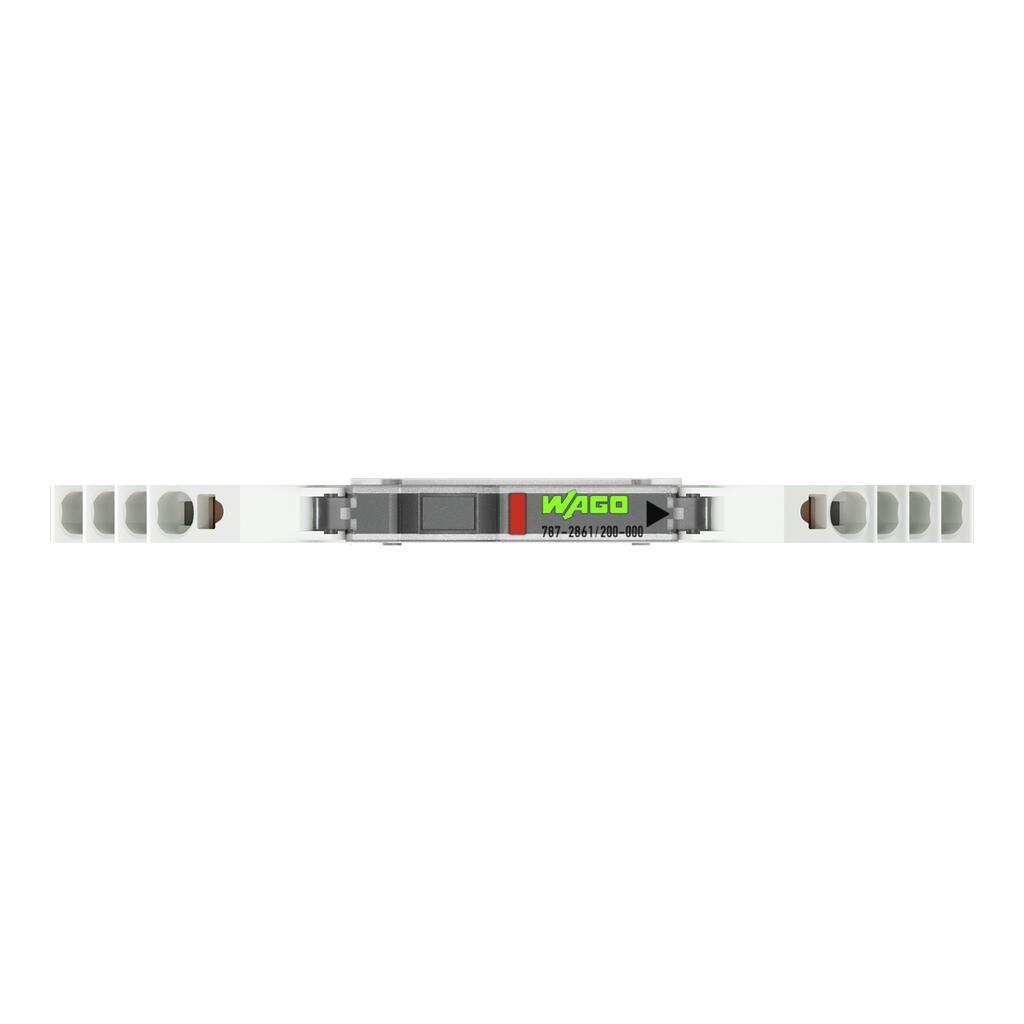

WAGO 787-2861/200-000 Data Base User Interface And Query Software
Part Number # 787-2861/200-000
SKU # 2345985
$96.07 / Each
Wago 787-2861/200-000 Key Features
Brand: Wago
Part Number # 787-2861/200-000
SKU #2345985
Amperage Rating: 2 A
Dimensions: 3.701 in H x 0.236 in W x 3.85 in D
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 94 mm / 3.701 inch
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: 1,262,142 h (per MIL-HDBK-217F2)
Output voltage range: DC 18 … 30 V (Ue − voltage drop)
Protection class: III
Protection type: IP20 (per EN 60529)
Remote input: 18 … 30 VDC signal, switches on/off and resets the channel
Reverse voltage protection: No
Signaling: 1 x Status LED (green/yellow/red/blue) || 1 x Control input || 1 x Active signal output (Ui, max. 4 mA)
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Standards/Specifications: EN 61000-6-2; EN 61000-6-3; UL 61010-2-201; DNV GL* (*pending)
Switch-on behavior: Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms)
Total number of channels (module): 1
Transient suppression (primary): Suppressor diode (33 V)
Voltage drop: ≤ 25 mV
WAGO Connector: WAGO 857 Series
Weight: 54.628 g
Width: 6 mm / 0.236 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04055143533584
$96.07 / Each
WAGO 787-2861/200-000 Data Base User Interface And Query Software
Brand: Wago
Part Number: 787-2861/200-000
Additional Description: WAGO-787-2861/200-000 ELECTRONIC CIRCUIT BREAKER; 1-CHANNEL; 24 VDC INPUT VOLTAGE; 2 A; COMMUNICATION CAPABILITY 60318264
Catalog Description: Electronic circuit breaker; 1-channel; 24 VDC input voltage; 2 A; Signal contact
787-2861/200-000 Item Features
- Space-saving ECB with one channel
- Reliably and safely trips in the event of an overload and short circuit on the secondary side
- Enables the use of an economical, standard power supply
- Minimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)
- Status signal - adjustable as single or group message
- Reset, switch on/off via remote input or local switch
- Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
787-2861/200-000 Standards
EN 61000-6-2|EN 61000-6-3|UL 61010-2-201|DNV|RoHS Compliant|CE|IP20SKU #2345985Part Number #787-2861/200-000UNSPSC43232306UPC04055143533584
