787-783

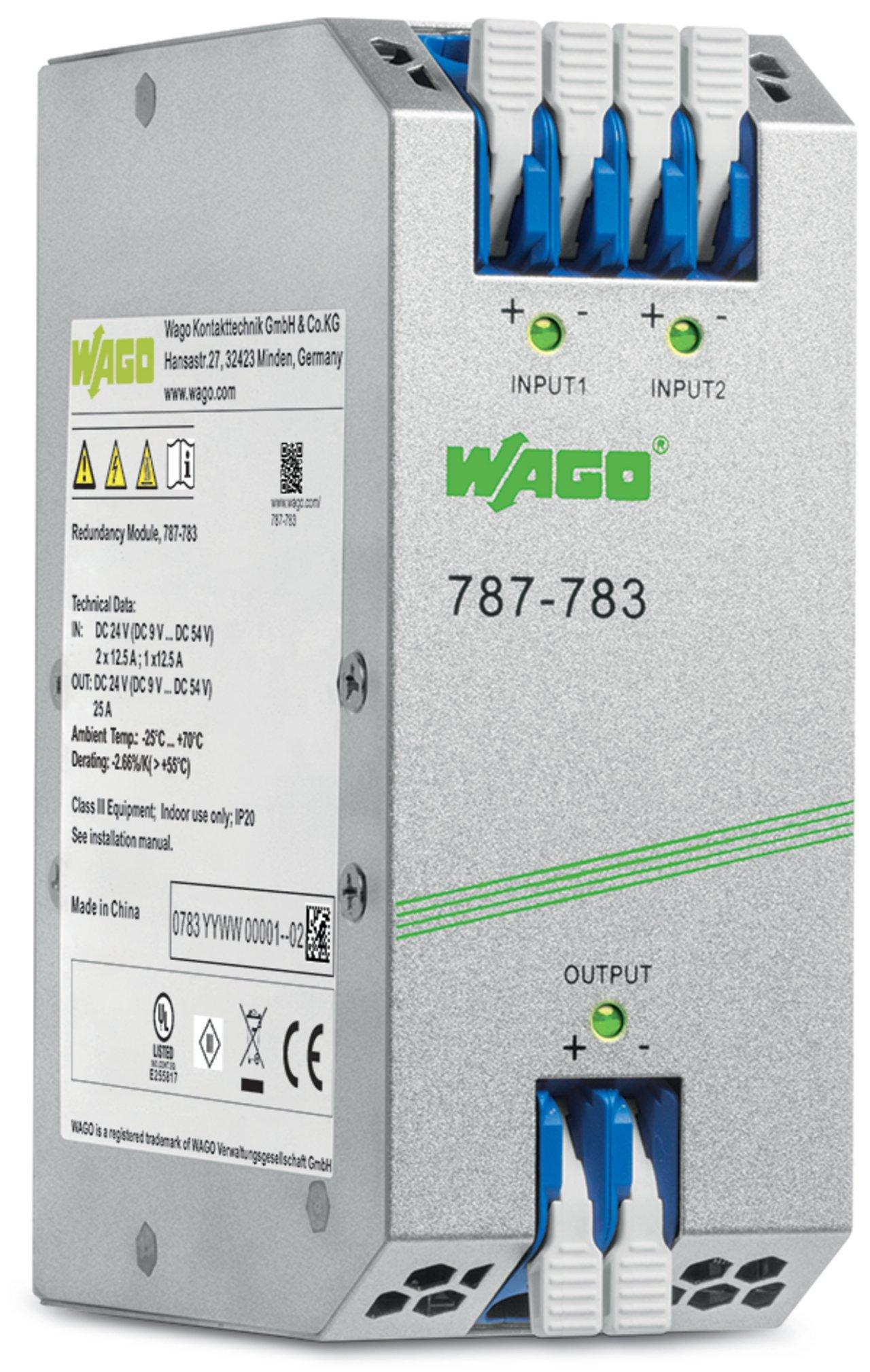

WAGO 787-783 Diode redundancy module
Part Number # 787-783
SKU # 2350848
$127.40 / Each
Wago 787-783 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-783 |
| SKU #: | 2350848 |
| Dimensions: | 5.118 in H x 1.969 in W x 3.662 in D |
| Input Voltage: | 54 V |
| Specifications: | -25 to 70 degree C Ambient Temperature |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | CN |
| Height: | 130 mm / 5.118 inch |
| Mounting type: | DIN-35 rail |
| MTBF: | > 10 million h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output current: | 12.5 A |
| Output power (max.): | ≤ 1350 W |
| Output voltage: | 54 V DC, 54 VDC |
| Output voltage range: | DC 9 … 54 V (Ue − voltage drop) |
| Parallel operation: | Yes |
| Protection class: | III |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | No |
| Signaling: | 1 x IN1 LED (green) || 1 x IN2 LED (green) || 1 x OUT LED (green) |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Standards/Specifications: | UL 508 |
| Voltage drop: | ≤ 0.8 V (Input/output) |
| WAGO Connector: | WAGO 2706 Series |
| Weight: | 470.000 g |
| Width: | 50 mm / 1.969 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143036290 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$127.40 / Each
Quantity:
- WAGO, 787-783, Redundancy Module, 54 V Input, 54 V DC Output, 12.5 A Output Current, Specifications: -25 to 70 degree C Ambient Temperature, 5.118 in H x 1.969 in W x 3.662 in D Dimensions
787-783 Item Features
- Redundancy module with two inputs decouples two power supplies
- With LED for input voltage monitoring on site and remotely
787-783 Standards
UL 508|RoHS Compliant|CE|IP20SKU #2350848Part Number #787-783UNSPSC43232306UPC04055143036290
