Part Number # 787-818
SKU # 2313210
Image Disclaimers Message
787-818

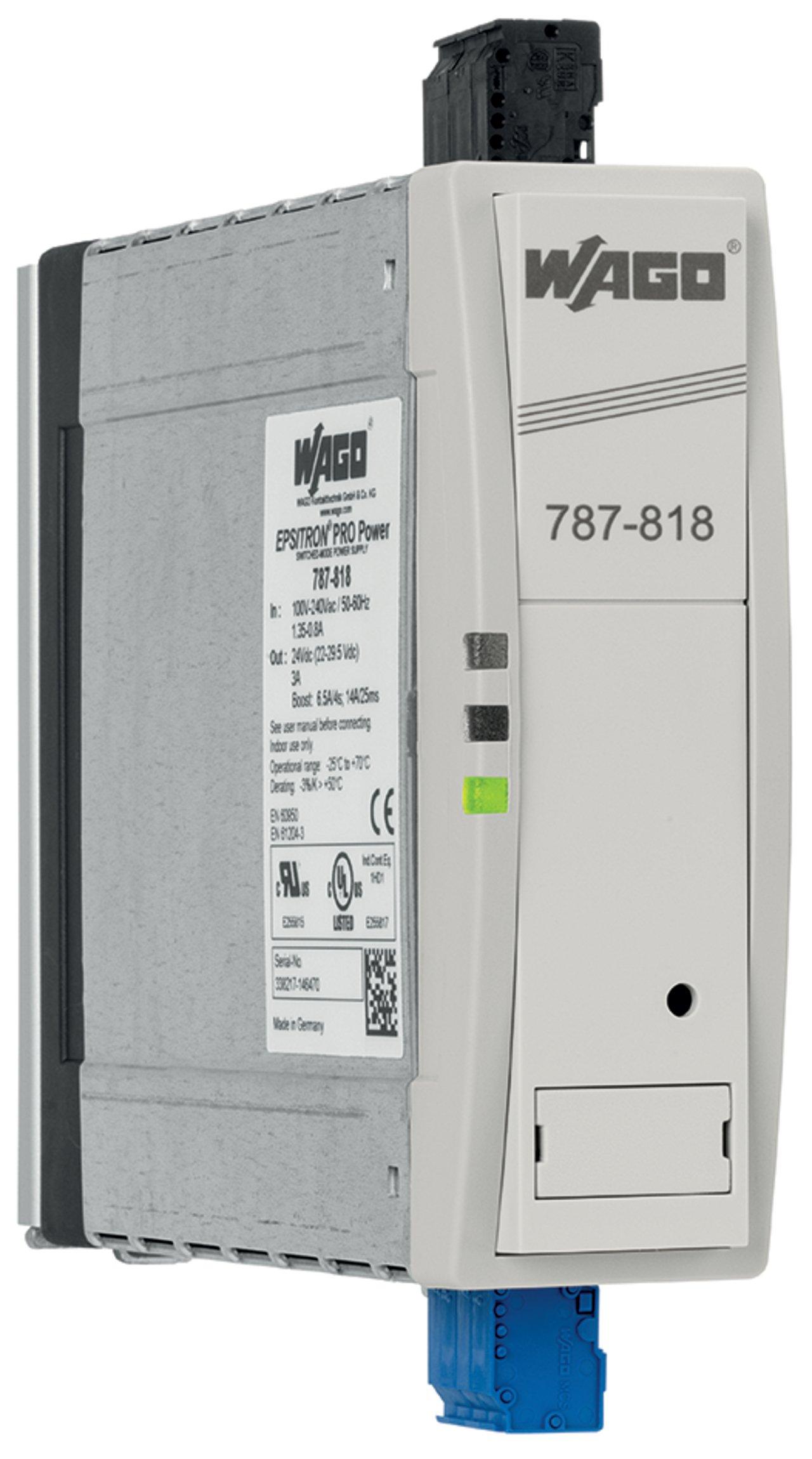

WAGO 787-818 EPSITRON PRO Power supply
Part Number # 787-818
SKU # 2313210
$351.62 / Each
Wago 787-818 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-818 |
| SKU #: | 2313210 |
| Frequency Rating: | 50 to 60 Hz |
| Input Voltage: | 300 V |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 6.417 in |
| Height: | 163 mm / 6.417 inch, 6.417 in |
| Inrush current: | ≤ 30 A (Peak) |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 24 V DC, 24 VDC |
| Output voltage range: | DC 22 … 29.5 V (adjustable) |
| Parallel operation: | Yes |
| Power factor correction (PFC): | Passive |
| Protection class: | I |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |
| Signaling: | 1 x LED DC OK (green) || 1 x Error LED (red) || 1 x Stand-by input || 1 x DC OK relay contact (changeover contact) |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 60950; EN 61204-3; EN 61558-2-16; UL 60950; UL 508 |
| Transient suppression (primary): | Varistor |
| WAGO Connector: | WAGO 231 Series |
| Weight: | 960.000 g |
| Width: | 1.57 in, 40 mm / 1.575 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454998097 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$351.62 / Each
Quantity:
- WAGO, 787-818, 1-Phase, 300 V Input, 24 V DC Output, 50 to 60 Hz Frequency, DIN Rail Mounting, 1.57 in Width, 6.417 in Depth, 6.417 in Height
787-818 Application
Suitable for both parallel and series operation787-818 Item Features
- Switched-mode power supply with PowerBoost and TopBoost
- Switch off the output and minimize power consumption via stand-by input
- Output monitoring via DC OK contact
- Natural convection cooling when horizontally mounted
787-818 Standards
EN 61010-1|EN 61010-2-201|EN 61204-3|EN 61558-2-16|UL 60950|UL 508|RoHS Compliant|CE|IP20SKU #2313210Part Number #787-818UNSPSC43232306UPC04045454998097
