Brand: Wago

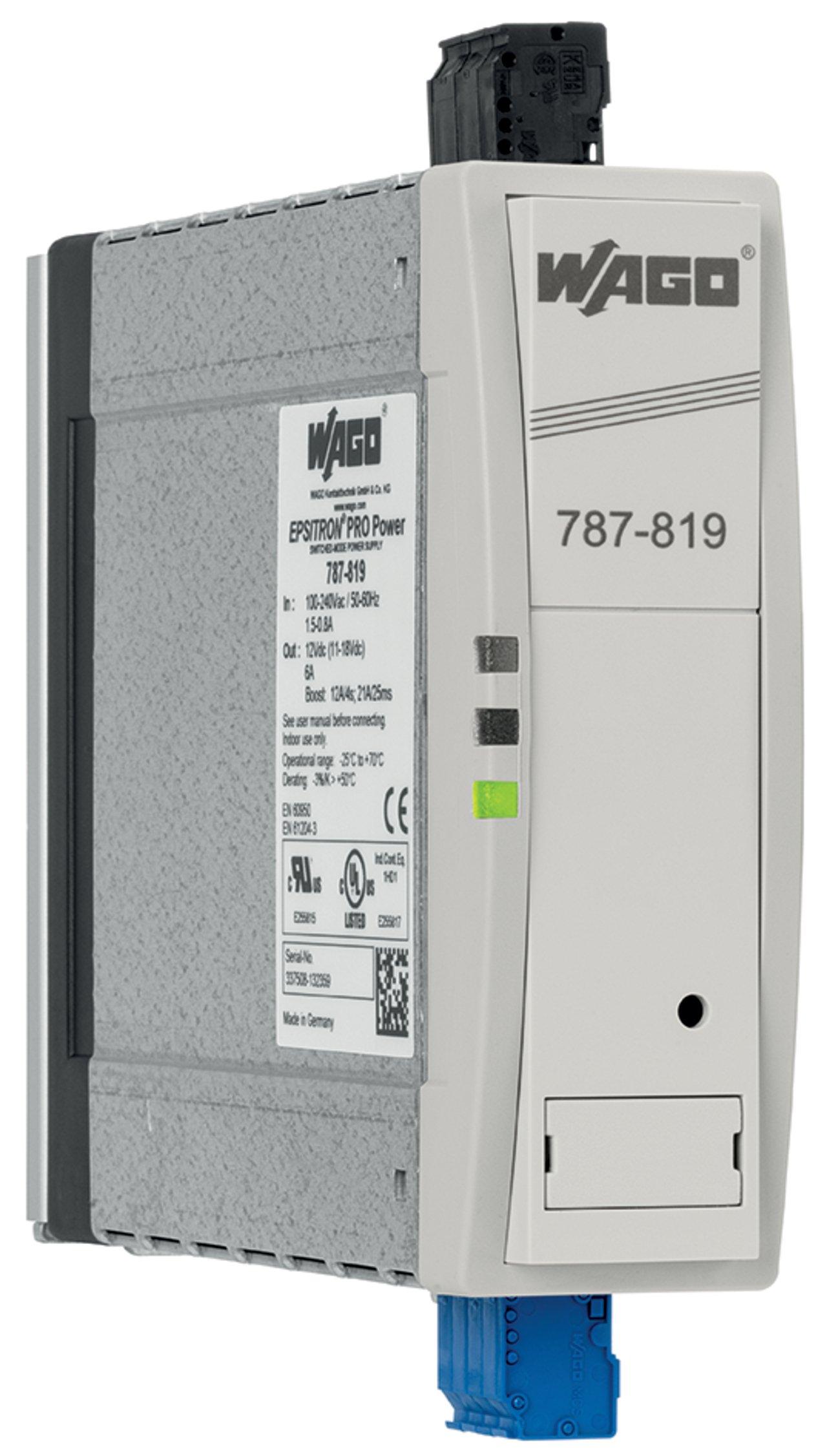

WAGO 787-819 EPSITRON PRO Power supply
Part Number # 787-819
SKU # 2359996
$535.98 / Each
Wago 787-819 Key Features
Brand: Wago
Part Number # 787-819
SKU #2359996
Frequency Rating: 50 to 60 Hz
Input Voltage: 300 V
Connection technology: CAGE CLAMP®
Country of origin: DE
Depth: 6.417 in
Height: 163 mm / 6.417 inch, 6.417 in
Inrush current: ≤ 30 A (Peak)
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage: 12 VDC
Output voltage range: DC 11 … 18 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Passive
Protection class: I
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: 1 x LED DC OK (green) || 1 x Error LED (red) || 1 x Stand-by input || 1 x DC OK relay contact (changeover contact)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 60950; EN 61204-3; EN 61558-2-16; UL 60950; UL 508
Transient suppression (primary): Varistor
WAGO Connector: WAGO 231 Series
Weight: 800.000 g
Width: 1.57 in, 40 mm / 1.575 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121004
UPC: 04050821226499
$535.98 / Each
WAGO 787-819 EPSITRON PRO Power supply
Brand: Wago
Part Number: 787-819
Additional Description: WAGO-787-819 SWITCHED-MODE POWER SUPPLY; PRO; 1-PHASE; 12 VDC OUTPUT VOLTAGE; 6 A OUTPUT CURRENT; TOPBOOST + POWERBOOST; DC OK CONTACT 07870819 VDC; 6 A; POWERBOOST
Catalog Description: Switched-mode power supply; Pro; 1-phase; 12 VDC output voltage; 6 A output current; TopBoost + PowerBoost; DC OK contact
787-819 Application
Suitable for both parallel and series operation787-819 Item Features
- Switched-mode power supply with PowerBoost and TopBoost
- Switch off the output and minimize power consumption via stand-by input
- Output monitoring via DC OK contact
- Natural convection cooling when horizontally mounted
787-819 Standards
EN 61010-1|EN 61010-2-201|EN 61204-3|EN 61558-2-16|UL 60950|UL 508|RoHS Compliant|CE|IP20SKU #2359996Part Number #787-819UNSPSC39121004UPC04050821226499
