- Switched-mode power supply with PowerBoost and TopBoost
- Switch off the output and minimize power consumption via stand-by input
- Output monitoring via DC OK contact
- Suitable for both parallel and series operation
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
Specifications
Brand: Wago
Amperage Rating: 20 A
Frequency Rating: 50 to 60 Hz
Input Voltage: 400 to 500 VAC
Series: 787
Type: 3-Phase
Connection technology: CAGE CLAMP®
Country of origin: DE
Depth: 8.07 in
Height: 171 mm / 6.732 inch, 6.73 in
Inrush current: ≤ 30 A (Peak)
Mounting type: 35 mm DIN Rail, DIN-35 rail
MTBF: > 500,000 h (per IEC 61709)
Open-circuit-proof: Yes
Output voltage: 48 VDC
Output voltage range: DC 39 … 53 V (adjustable)
Parallel operation: Yes
Power factor correction (PFC): Passive
Protection class: I
Protection type: IP20 (per EN 60529)
Short-circuit-protected: Yes
Signaling: 1 x LED DC OK (green) || 1 x Error LED (red) || 1 x Stand-by input || 1 x DC OK relay contact (changeover contact)
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Standards/Specifications: EN 60950; EN 61204-3; EN 61558-2-16; UL 60950; UL 508
Transient suppression (primary): Varistor
WAGO Connector: WAGO 231 Series
Weight: 3270.000 g
Width: 128 mm / 5.039 inch, 5.03 in
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821226444

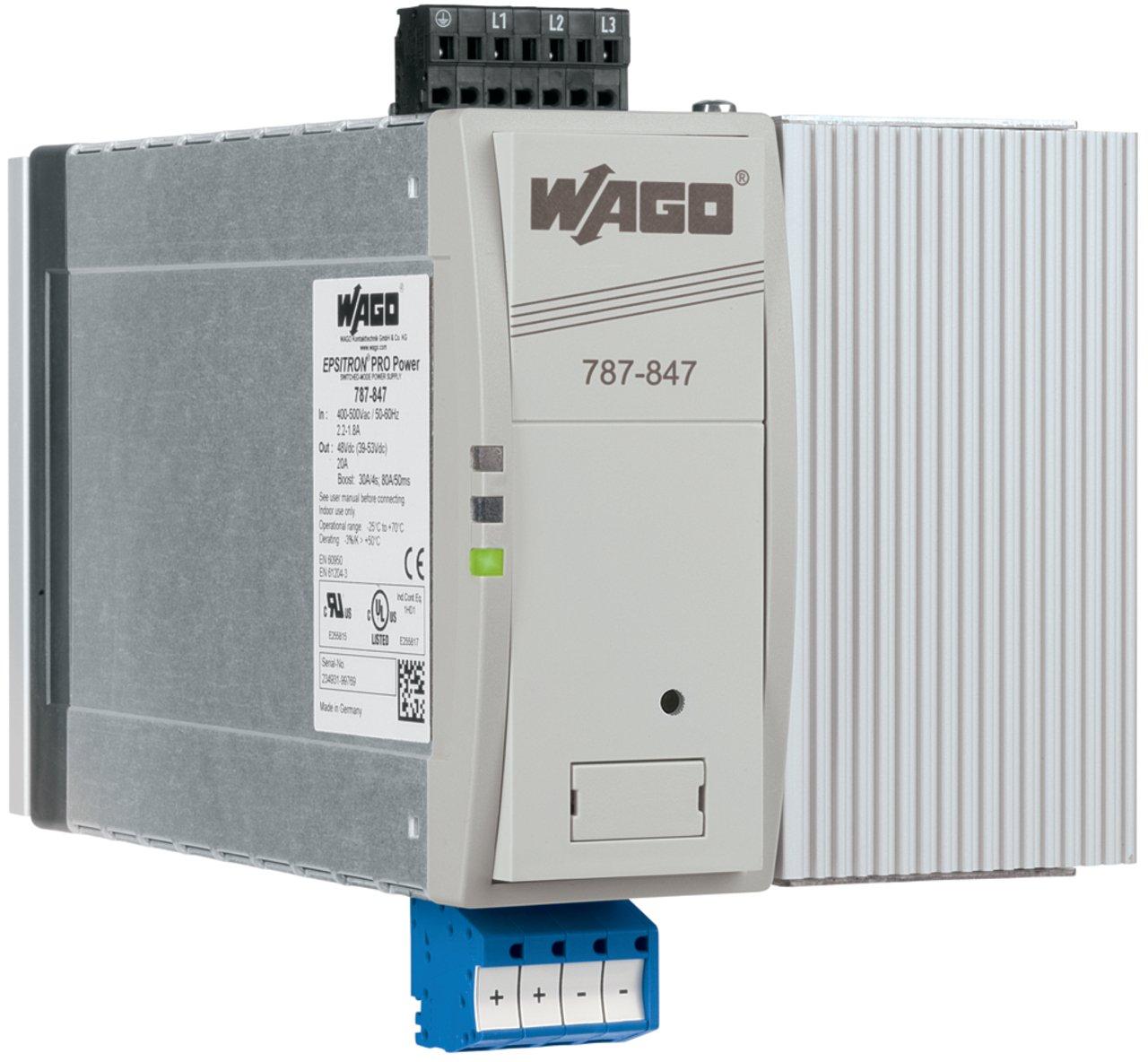

WAGO 787-847 EPSITRON PRO Power supply
WAGO, 787-847, Power Supply, 3-Phase, Series: 787, 400 to 500 VAC Input, 48 VDC Output, 20 A, 50 to 60 Hz Frequency, 35 mm DIN Rail Mounting, 5.03 in Width, 8.07 in Depth, 6.73 in Height
Additional Description: WAGO-787-847 SWITCHED-MODE POWER SUPPLY; PRO; 3-PHASE; 48 VDC OUTPUT VOLTAGE; 20 A OUTPUT CURRENT; TOPBOOST + POWERBOOST; DC OK CONTACT 7870847 3-PHASE; 48 VDC OUTPUT VOLTAGE; 20 A OUTPUT CURRENT; TOPBOOST + POWERBOOST; DC OK CONTACT 07870847
Catalog Description: Switched-mode power supply; Pro; 3-phase; 48 VDC output voltage; 20 A output current; TopBoost + PowerBoost; DC OK contact
Item FeaturesSuitable for both parallel and series operation
Item Features
Item FeaturesRoHS Compliant|EN 61010-1|EN 61010-2-201|EN 61204-3|EN 61558-2-16|UL 60950|UL 508
