Part Number # 787-854
SKU # 2212380
787-854
WAGO 787-854 EPSITRON PRO Power supply
Part Number # 787-854
SKU # 2212380
Wago 787-854 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 787-854 |
| SKU #: | 2212380 |
| Amperage Rating: | 40 A |
| Frequency Rating: | 50 to 60 Hz |
| Input Voltage: | 400 to 500 V AC, 400 to 500 VAC |
| Series: | 787 |
| Type: | 3-Phase |
| Communication: | RS-232 Serial Interface |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 8.07 in |
| Height: | 171 mm / 6.732 inch, 6.73 in |
| Inrush current: | ≤ 30 A |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| MTBF: | > 500,000 h (per IEC 61709) |
| Open-circuit-proof: | Yes |
| Output voltage: | 24 V DC, 24 VDC |
| Output voltage range: | DC 22.8 … 28.8 V (adjustable) |
| Parallel operation: | Yes |
| Power factor correction (PFC): | Passive (adjustable via software/display) |
| Protection class: | I |
| Protection type: | IP20 (per EN 60529) |
| Short-circuit-protected: | Yes |
| Signaling: | 1 x LED DC OK (green) || 1 x Warning LED (yellow) || 1 x Error LED (red) || LCD || 4 x Signal output (24 VDC; max. 25 mA) || 1 x RS-232 interface |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 60950; EN 61204-3; EN 61558-2-16; UL 60950; UL 508 |
| Transient suppression (primary): | Varistor |
| WAGO Connector: | WAGO 231 Series |
| Weight: | 2300.000 g |
| Width: | 128 mm / 5.039 inch, 5.03 in |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454909895 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 787-854 EPSITRON PRO Power supply
Brand: Wago
Part Number: 787-854
WAGO, 787-854, Power Supply, 3-Phase, Series: 787, 400 to 500 VAC Input, 24 VDC Output, 40 A, 50 to 60 Hz Frequency, 35 mm DIN Rail Mounting, 5.03 in Width, 8.07 in Depth, 6.73 in Height
Additional Description: WAGO-787-854 SWITCHED-MODE POWER SUPPLY; PRO; 3-PHASE; 24 VDC OUTPUT VOLTAGE; 40 A OUTPUT CURRENT; TOPBOOST + POWERBOOST; LINEMONITOR; DC OK SIGNAL; 2,50 MM 3PH, 40A. 24VDC 07870854
Catalog Description: Switched-mode power supply; Pro; 3-phase; 24 VDC output voltage; 40 A output current; TopBoost + PowerBoost; LineMonitor; DC OK signal; 2,50 mm²
787-854 Application
Suitable for both parallel and series operation787-854 Item Features
- Switched-mode power supply with PowerBoost and TopBoost
- Suitable for both parallel and series operation
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- LineMonitor for parameter setting and monitoring
- RS-232 serial interface
- Four signal outputs
787-854 Standards
RoHS Compliant|EN 61010-1|EN 61010-2-201|EN 61204-3|EN 61558-2-16|UL 60950|UL 508SKU #2212380Part Number #787-854UNSPSC43232306UPC04045454909895

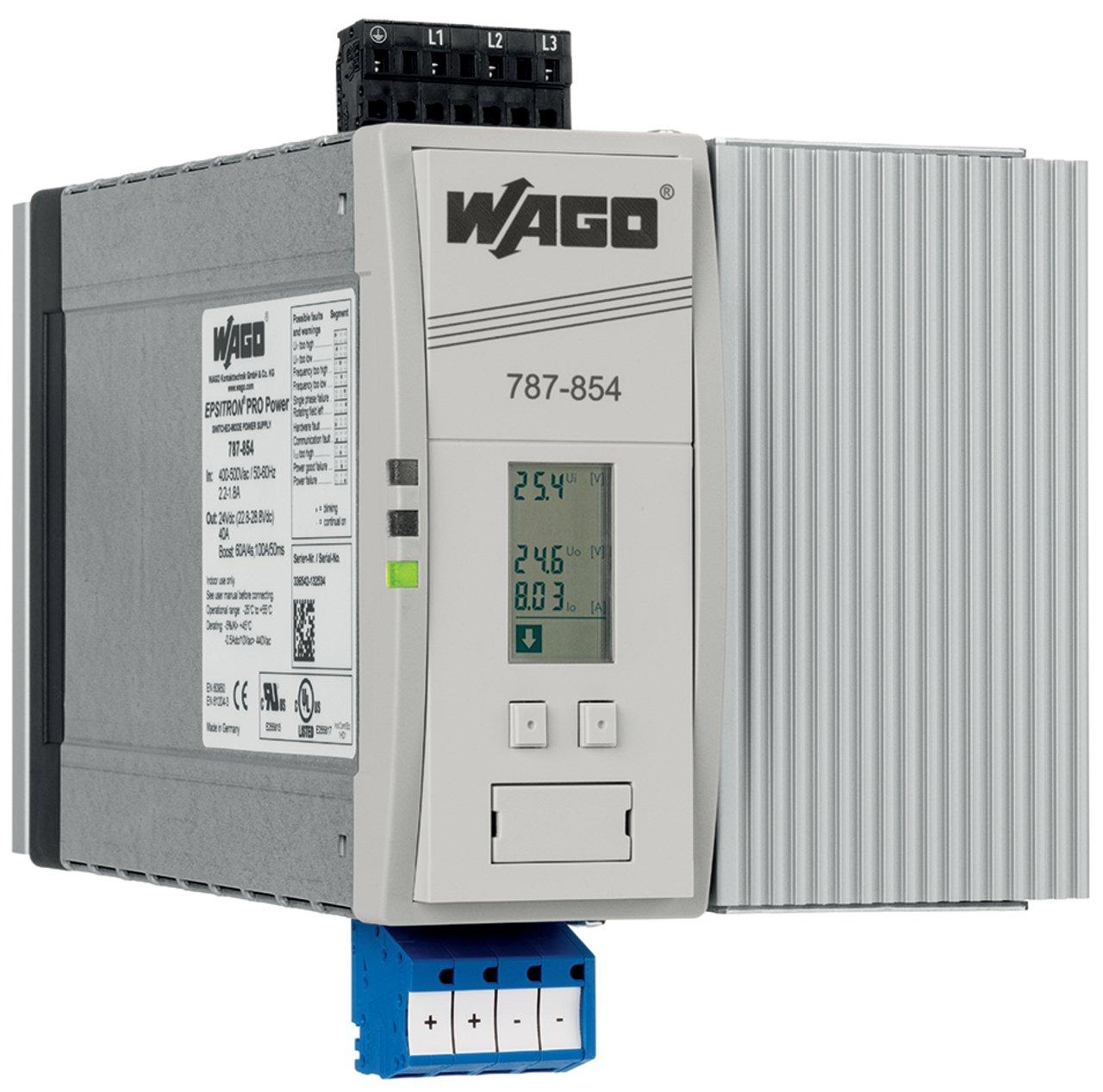

Image provided may only be a representation of final product and may include optional equipment
