Part Number # 788-177
SKU # 2324290
Image Disclaimers Message
788-177

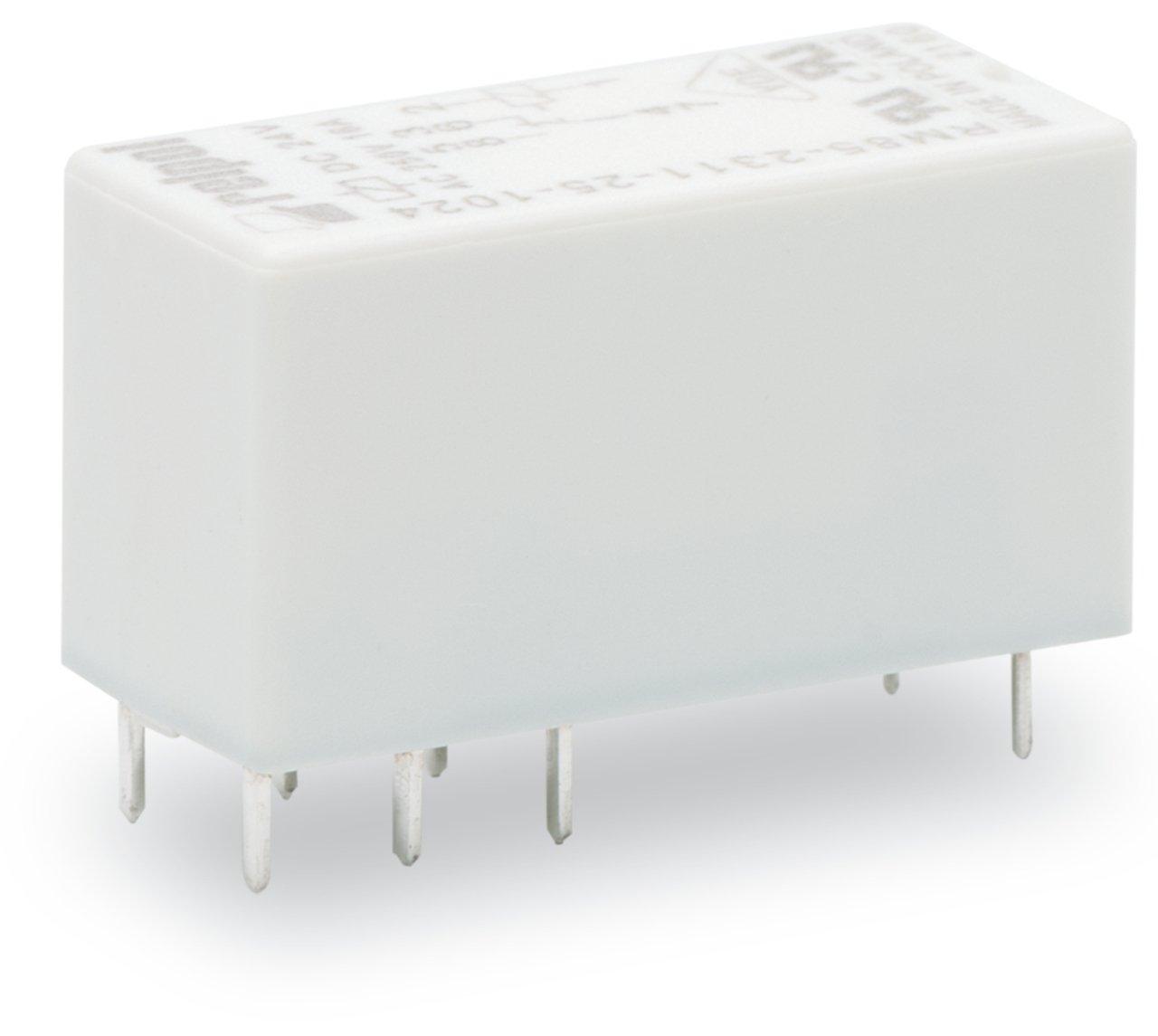

WAGO 788-177 Basic relay
Part Number # 788-177
SKU # 2324290
Wago 788-177 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-177 |
| SKU #: | 2324290 |
| Amperage Rating: | 8 A |
| Dimensions: | 0.5 in W x 1.142 in D |
| Country of origin: | DE |
| Depth: | 29 mm / 1.142 inch |
| Mechanical life: | 30 x 106 switching operations |
| Mounting type: | Pluggable, Pluggable module |
| Number of changeover/switchover contacts: | 2 |
| Standards/Specifications: | EN 61810-1 |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Weight: | 12.600 g |
| Width: | 12.7 mm / 0.5 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821867890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 788-177 Basic relay
Brand: Wago
Part Number: 788-177
Additional Description: WAGO-788-177 BASIC RELAY; NOMINAL INPUT VOLTAGE: 115 VAC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH GOLD CONTACTS; MODULE WIDTH: 13 MM; MODULE HEIGHT: 15 MM 51291886 15mm 115 VAC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH GOLD CONTACTS; MODULE WIDTH: 13 MM; MODULE HEIGHT: 15 MM 51291886
Catalog Description: Basic relay; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with gold contacts; Module width: 13 mm; Module height: 15 mm
788-177 Standards
EN 61810-1|RoHS Compliant|IP40SKU #2324290Part Number #788-177UNSPSC43232306UPC04050821867890
