Part Number # 788-303
SKU # 1145931
Image Disclaimers Message

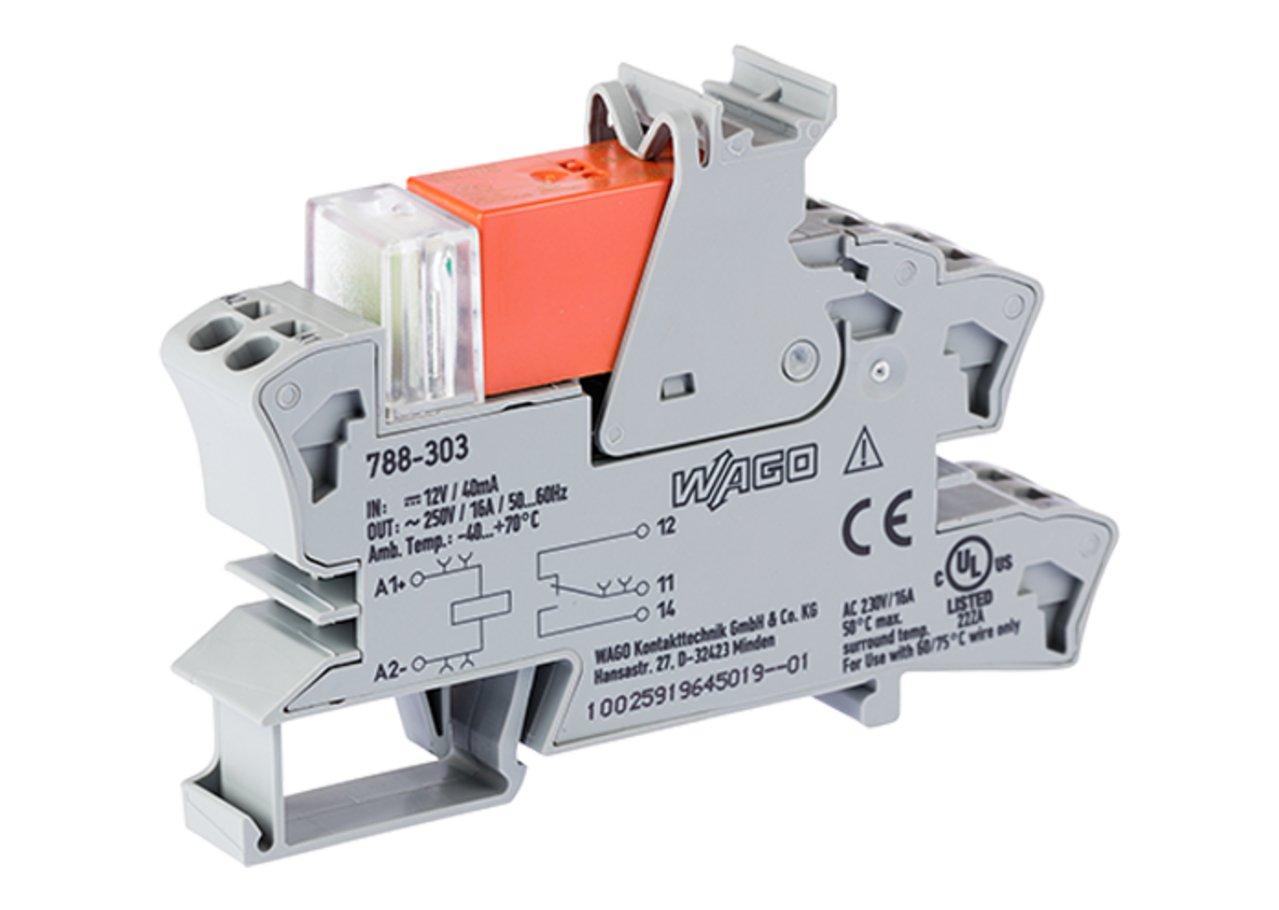

Wago 788-303 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-303 |
| SKU #: | 1145931 |
| Coil Voltage: | 12 V DC, 12 VDC |
| Contact Form: | 1 Form C SPDT, SPDT 1 Form C |
| Contact Rating: | 16 A |
| Dimensions: | 86 mm H x 15 mm W x 54 mm D |
| Enclosure Type: | IP20 |
| Series: | 788 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Spring |
| Type: | General Purpose |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 86 mm / 3.386 inch |
| Mechanical life: | 30 x 106 switching operations |
| Mounting type: | DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 1 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 10 A) |
| Status indicator: | Red LED |
| Switching capacity: | AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Switching frequency with/without load (max.): | 6 min-1 / 1200 min-1 |
| Weight: | 45.860 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143184106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.42 / Each
Quantity:
- WAGO, 788-303, Relay Module, General Purpose, Series: 788, 12 V DC Coil, 1 Form C SPDT Contact Form, 16 A Contact, DIN Rail Mounting, Spring Terminal, IP20 Enclosure, -40 to 70 deg C, 86 mm H x 15 mm W x 54 mm D DimensionsSKU #1145931Part Number #788-303UNSPSC43232306UPC04055143184106
