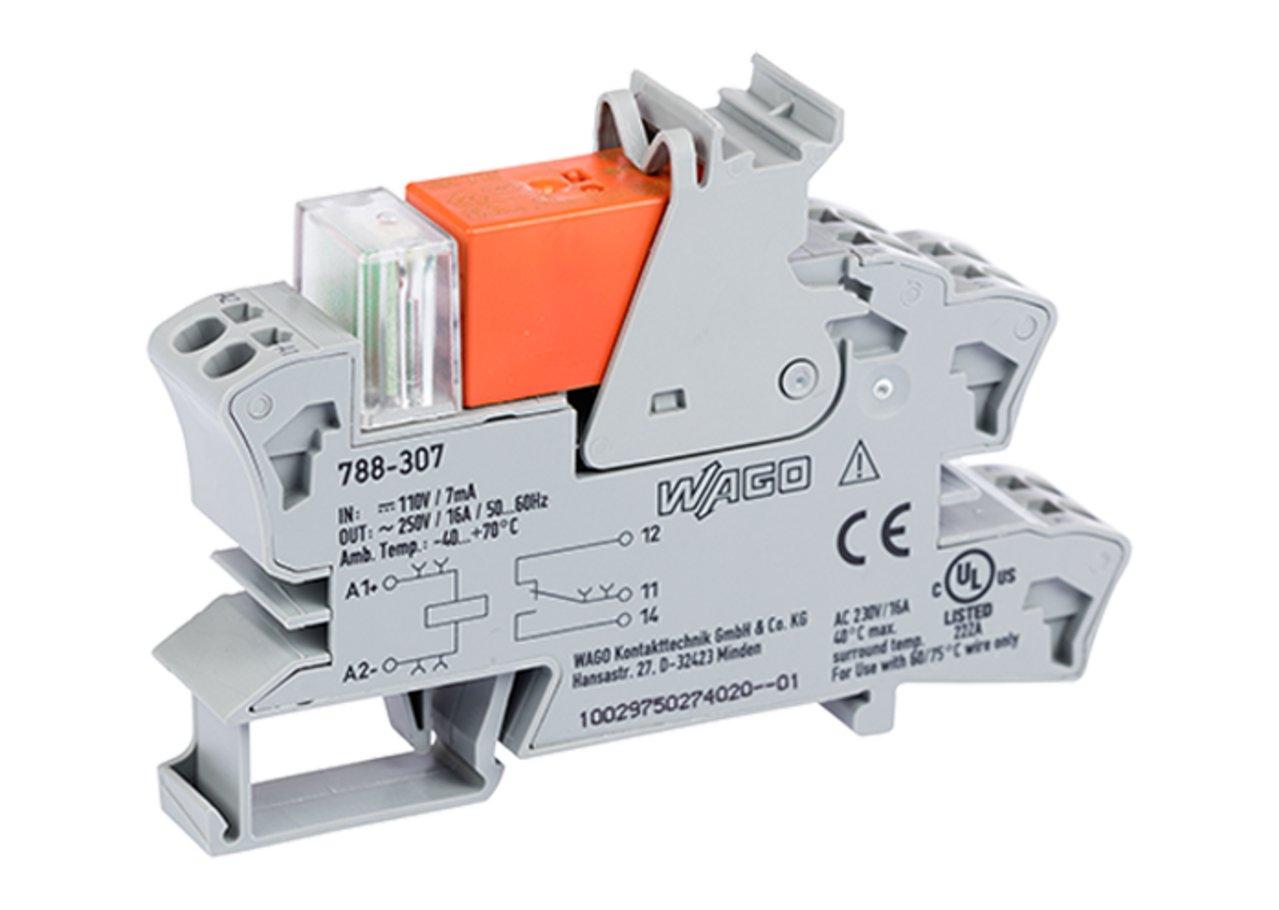

WAGO 788-307 Relay module
Part Number # 788-307
SKU # 2240977
$21.61 / Each
Wago 788-307 Key Features
Brand: Wago
Part Number # 788-307
SKU #2240977
Amperage Rating: 16 A
Dimensions: 3.386 in H x 0.591 in W x 2.126 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 110 VDC
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mechanical life: 30 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 1
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 40 °C/10 A)
Status indicator: Red LED
Switching capacity: AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V
Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
Weight: 46.500 g
Width: 15 mm / 0.591 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454520663
$21.61 / Each
WAGO 788-307 Relay module
Brand: Wago
Part Number: 788-307
Additional Description: WAGO-788-307 RELAY MODULE; NOMINAL INPUT VOLTAGE: 110 VDC; 1 CHANGEOVER CONTACT; LIMITING CONTINUOUS CURRENT: 16 A; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM; GRAY 51188926 VOLTAGE: 110 VDC; 1 CHANGEOVER CONTACT; LIMITING CONTINUOUS CURRENT: 16 A; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM ; GRAY 51188926
Catalog Description: Relay module; Nominal input voltage: 110 VDC; 1 changeover contact; Limiting continuous current: 16 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
788-307 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508 (max. 40°C/10 A)|RoHS Compliant|IP20SKU #2240977Part Number #788-307UNSPSC43232306UPC04045454520663
