Brand: Wago

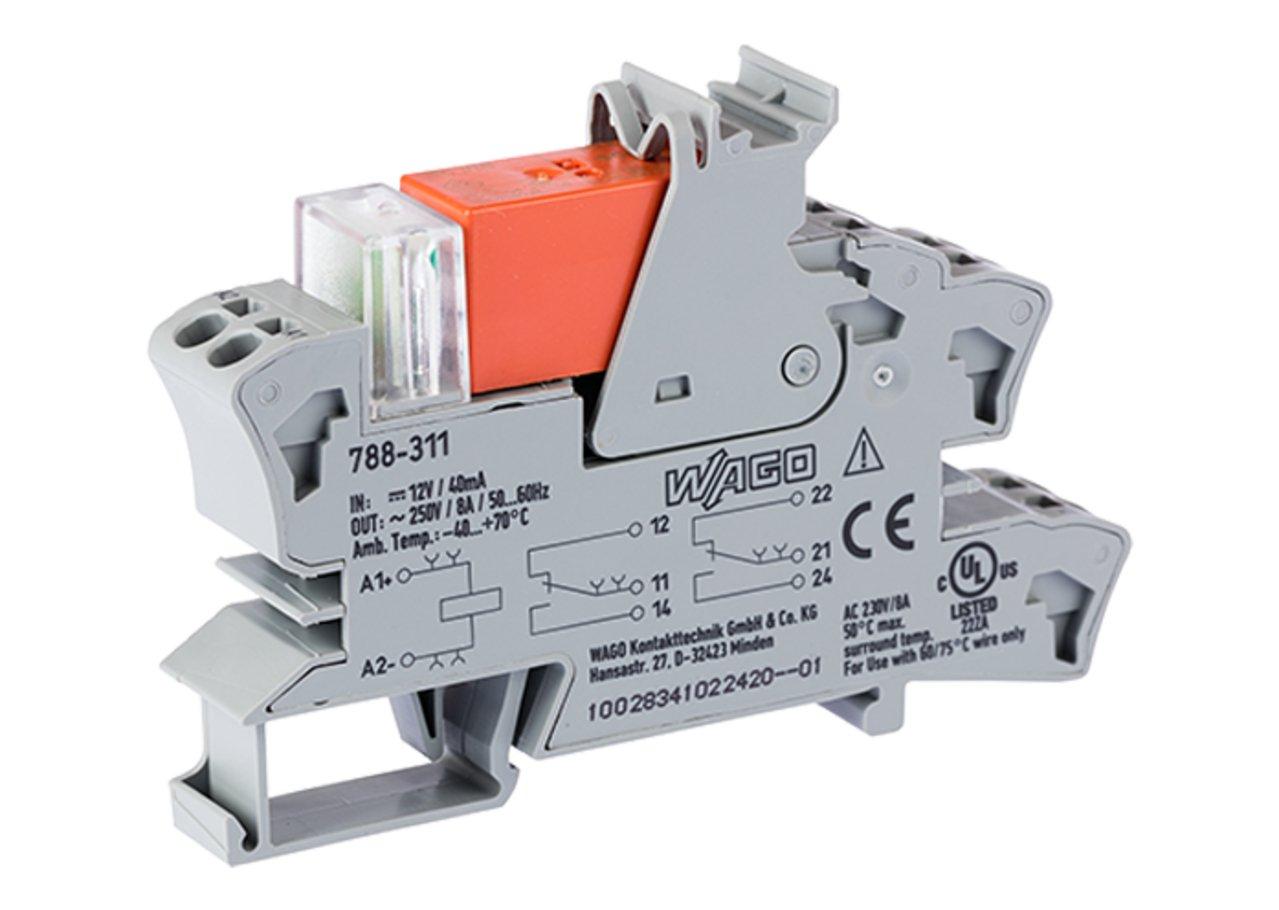

WAGO 788-311 Relay module
Image Disclaimers Message
Brand: Wago
WAGO 788-311 Relay module
Brand: Wago
WAGO 788-311 Relay module
Part #:788-311
SKU #: 2346484
$19.00/EA
Key Features
Part #:788-311
SKU #: 2346484
Brand: Wago
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Country of origin: CN
Depth: 86 mm / 3.386 inch
Mechanical life: 30 x 106 switching operations
$19.00/EA
Specifications
Brand: Wago
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Country of origin: CN
Depth: 86 mm / 3.386 inch
Mechanical life: 30 x 106 switching operations
Mounting type: DIN-35 rail
Number of changeover/switchover contacts: 2
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
Status indicator: Red LED
Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
Weight: 45.408 g
Width: 15 mm / 0.591 inch
UNSPSC: 43232306
UPC: 04055143184120
WAGO 788-311 Relay module
Additional Description: WAGO-788-311 RELAY MODULE; NOMINAL INPUT VOLTAGE: 12 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM ; GRAY 51309397
Catalog Description: Relay module; Nominal input voltage: 12 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
