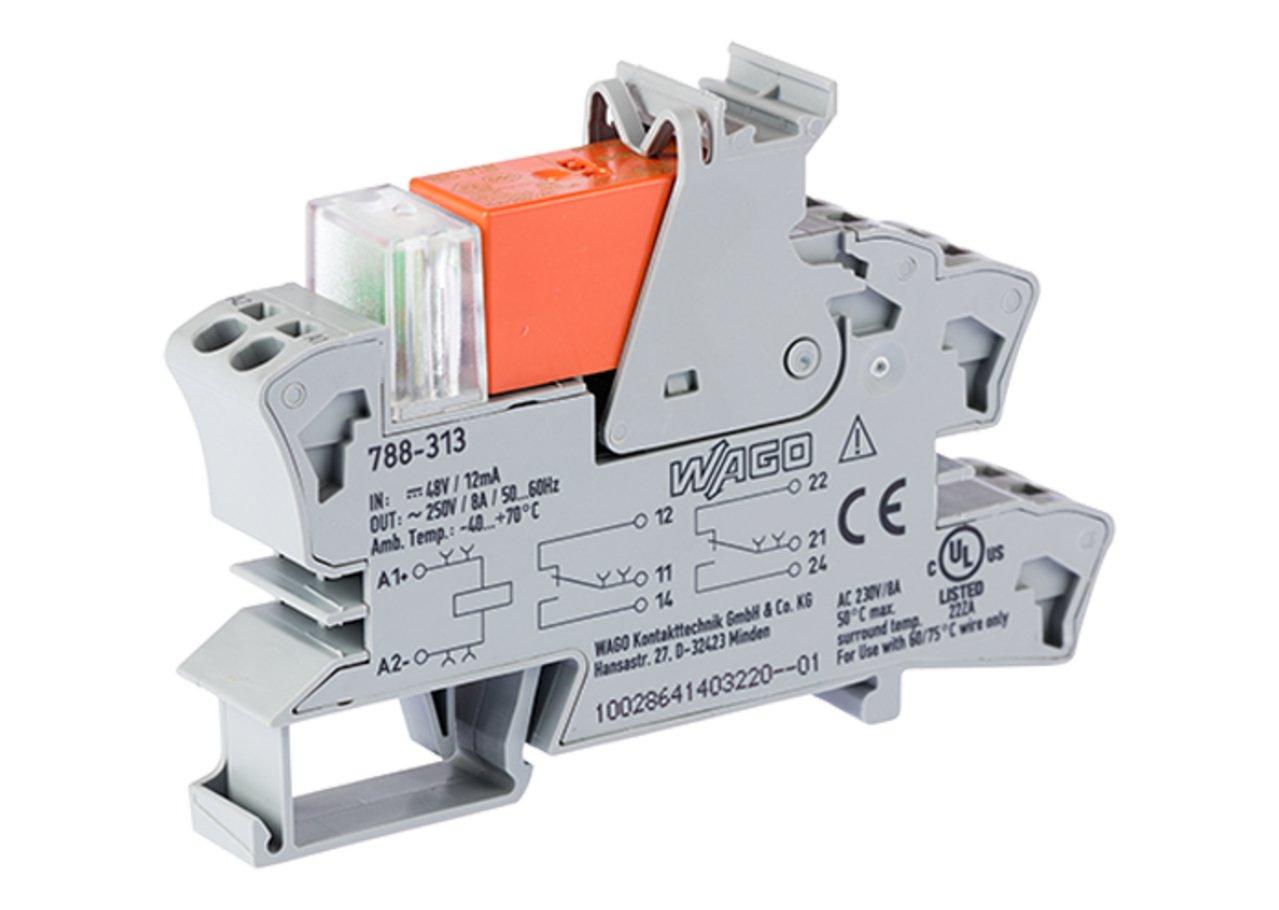

WAGO 788-313 Relay module
Part Number # 788-313
SKU # 2382283
$22.64 / Each
Wago 788-313 Key Features
Brand: Wago
Part Number # 788-313
SKU #2382283
Amperage Rating: 8 A
Dimensions: 3.386 in H x 0.591 in W x 2.126 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 48 VDC
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mechanical life: 30 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 2
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
Status indicator: Red LED
Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
Switching frequency with/without load (max.): 6 min-1 / 1200 min-1
Weight: 45.627 g
Width: 15 mm / 0.591 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454550370
$22.64 / Each
WAGO 788-313 Relay module
Brand: Wago
Part Number: 788-313
Additional Description: WAGO-788-313 RELAY MODULE; NOMINAL INPUT VOLTAGE: 48 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM; GRAY 51190974 CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM; GRAY
Catalog Description: Relay module; Nominal input voltage: 48 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
788-313 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508|RoHS Compliant|IP20SKU #2382283Part Number #788-313UNSPSC43232306UPC04045454550370
