Part Number # 788-315
SKU # 2138334
Image Disclaimers Message
Wago 788-315 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-315 |
| SKU #: | 2138334 |
| Amperage Rating: | 8 A |
| Dimensions: | 3.386 in H x 0.591 in W x 2.126 in D |
| Enclosure Type: | IP20 |
| Indicator: | Red LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 86 mm / 3.386 inch |
| Mechanical life: | 30 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 2 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; UL 508 (max. 40 °C) |
| Status indicator: | Red LED |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Switching frequency with/without load (max.): | 6 min-1 / 1200 min-1 |
| Weight: | 46.000 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454520670 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.42 / Each
Quantity:

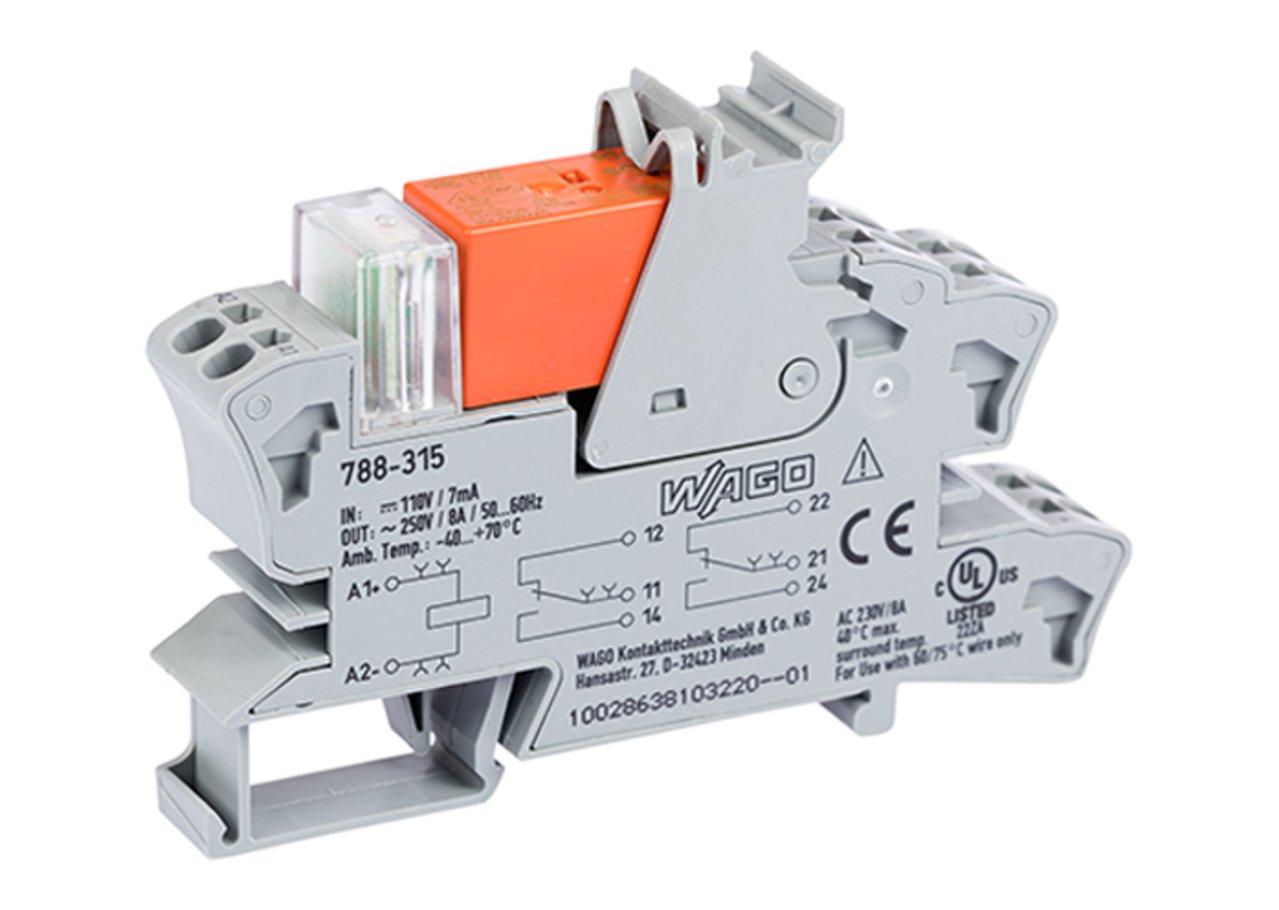

- WAGO, 788-315, Relay Module, 110 V DC, 8 A, Red LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, Gray, 3.386 in H x 0.591 in W x 2.126 in D Dimensions
788-315 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508 (max. 40°C)|RoHS Compliant|IP20SKU #2138334Part Number #788-315UNSPSC43232306UPC04045454520670
