Brand: Wago

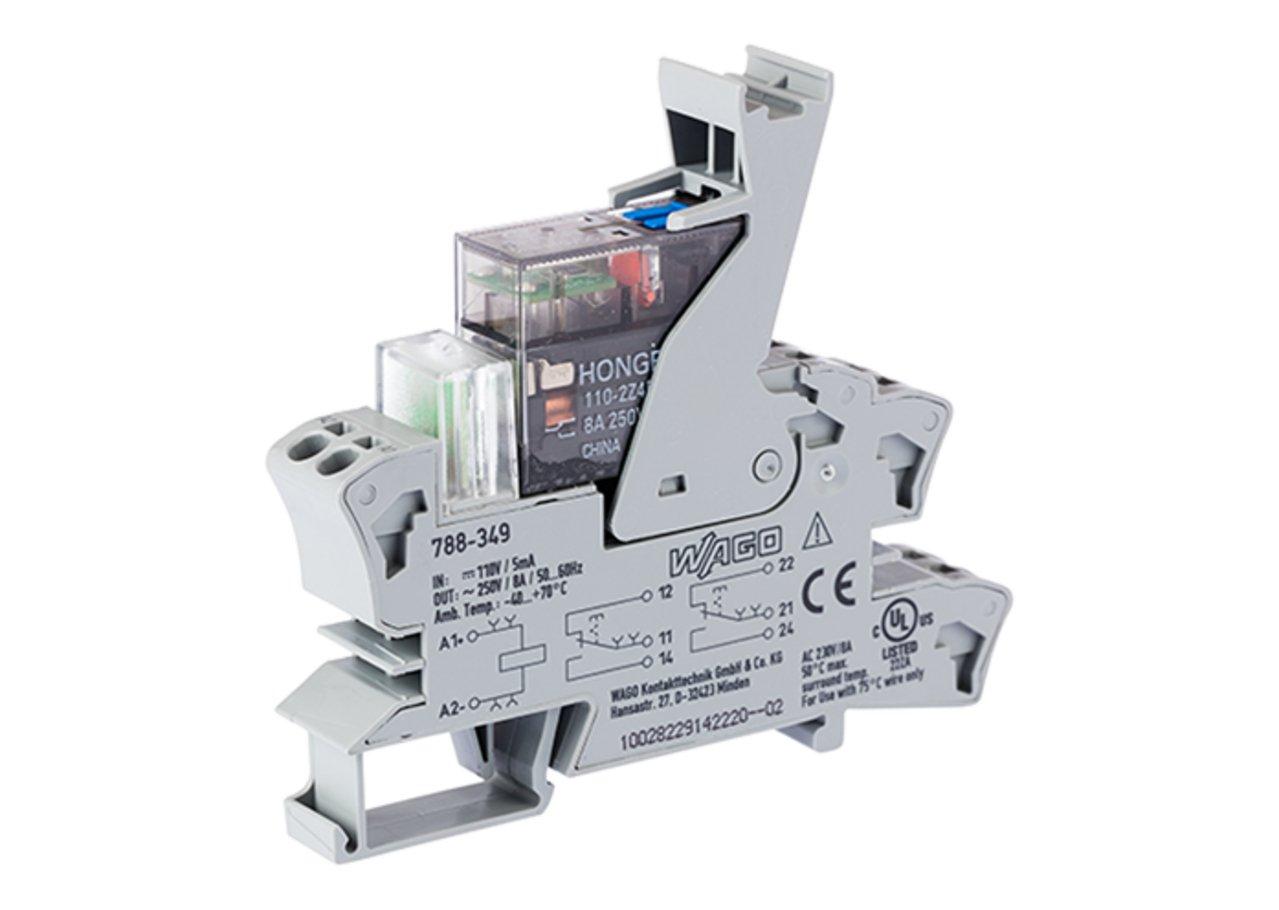

WAGO 788-349 Relay module
Image Disclaimers Message
Brand: Wago
WAGO 788-349 Relay module
Brand: Wago
WAGO 788-349 Relay module
Part #:788-349
SKU #: 2327306
$31.63/EA
Key Features
Part #:788-349
SKU #: 2327306
Brand: Wago
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mechanical life: 5 x 106 switching operations
Mounting type: DIN-35 rail
$31.63/EA
Specifications
Brand: Wago
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mechanical life: 5 x 106 switching operations
Mounting type: DIN-35 rail
Number of changeover/switchover contacts: 2
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
Status indicator: Red LED || Mechanical
Switching capacity: AC-15: 1.5 A / AC 240 V; DC-13: 1 A / DC 24 V
Switching frequency with/without load (max.): 6 min-1 / 300 min-1
Weight: 48.600 g
Width: 15 mm / 0.591 inch
UNSPSC: 43232306
UPC: 04050821226833
WAGO 788-349 Relay module
Additional Description: WAGO-788-349 RELAY MODULE; NOMINAL INPUT VOLTAGE: 110 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 15 MM 07880349
Catalog Description: Relay module; Nominal input voltage: 110 VDC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 15 mm
