Part Number # 788-412
SKU # 2302247

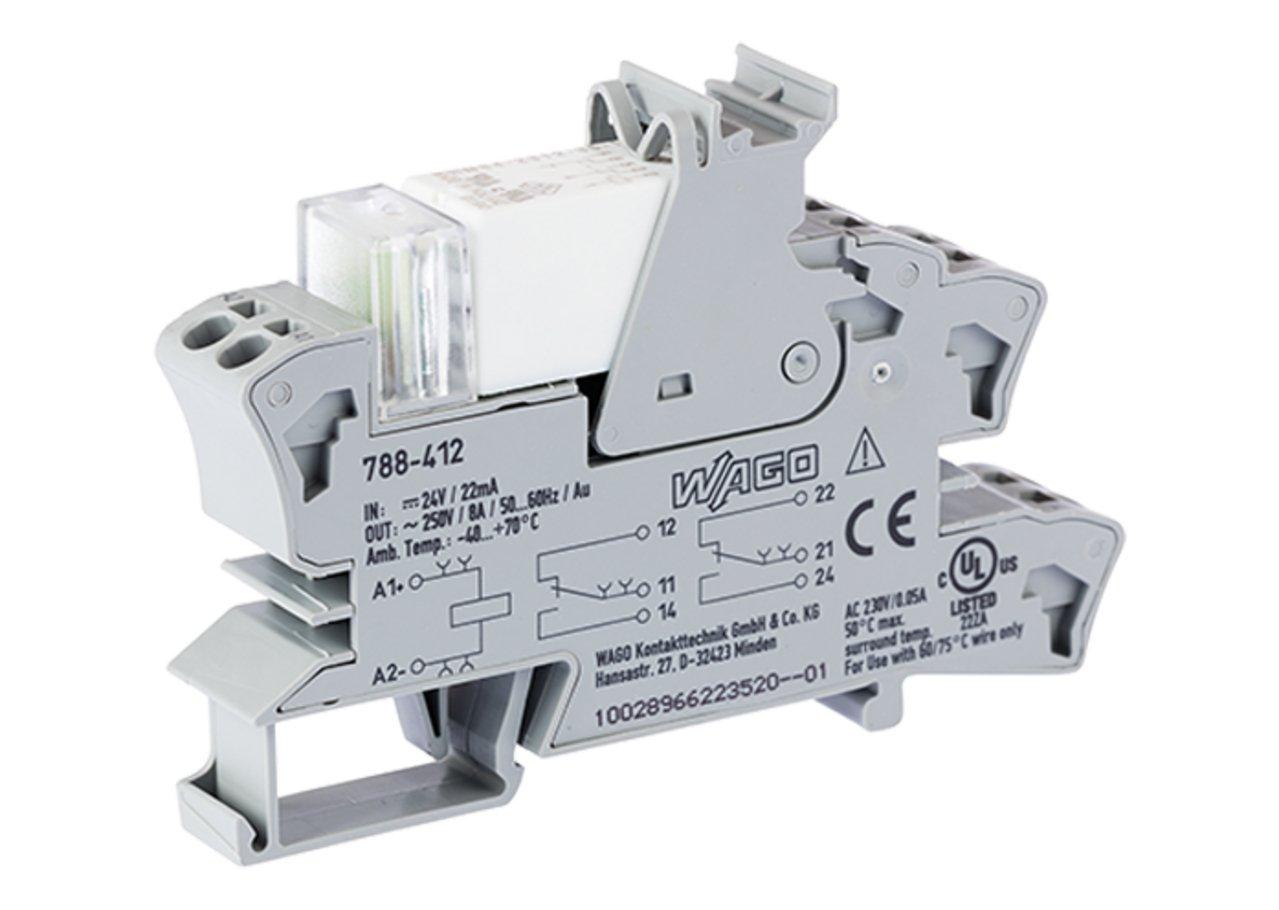

Image provided may only be a representation of
final product and may include optional equipment
Wago 788-412 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-412 |
| SKU #: | 2302247 |
| Amperage Rating: | 8 A |
| Dimensions: | 3.386 in H x 0.591 in W x 2.126 in D |
| Enclosure Type: | IP20 |
| Indicator: | Red LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 86 mm / 3.386 inch |
| Mechanical life: | 30 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 2 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; UL 508 |
| Status indicator: | Red LED |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Switching frequency with/without load (max.): | 10 min-1 / 1200 min-1 |
| Weight: | 47.566 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454352165 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.75 / Each
Quantity:
WAGO 788-412 Relay module
Brand: Wago
Part Number: 788-412
Additional Description: WAGO-788-412 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH GOLD CONTACTS; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; 2,50 MM ; GRAY 51178569
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; with gold contacts; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
788-412 Standards
EN 61010-2-201|EN 61810-1|EN 61373|UL 508|RoHS Compliant|IP20SKU #2302247Part Number #788-412UNSPSC43232306UPC04045454352165
