Specifications
Brand: Wago
Amperage Rating: 8 A
Coil Voltage: 24 VDC
Contact Form: 2 Form C DPDT
Contact Rating: 8 A
Dimensions: 3.386 in H x 0.591 in W x 2.874 in D
Enclosure Type: IP20
Temperature Rating (Degrees F): -40 to 70 deg C
Terminal Type: Spring
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821226826

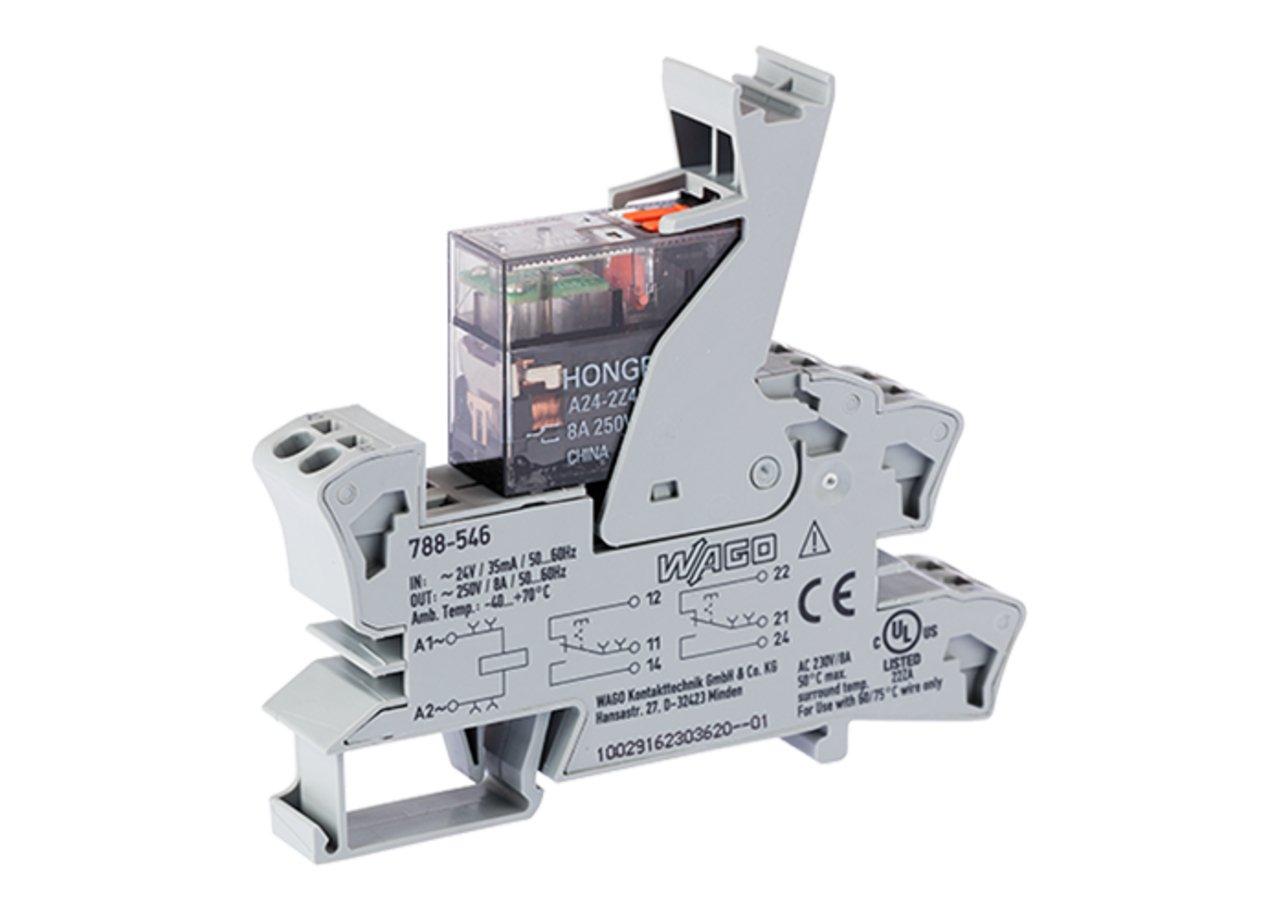

WAGO 788-546 Relay module
Additional Description: WAGO-788-546 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VAC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 15 MM 7880546 CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; WITH MANUAL OPERATION; RED STATUS INDICATOR; MODULE WIDTH: 15 MM
Catalog Description: Relay module; Nominal input voltage: 24 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 15 mm
Item FeaturesRoHS Compliant
