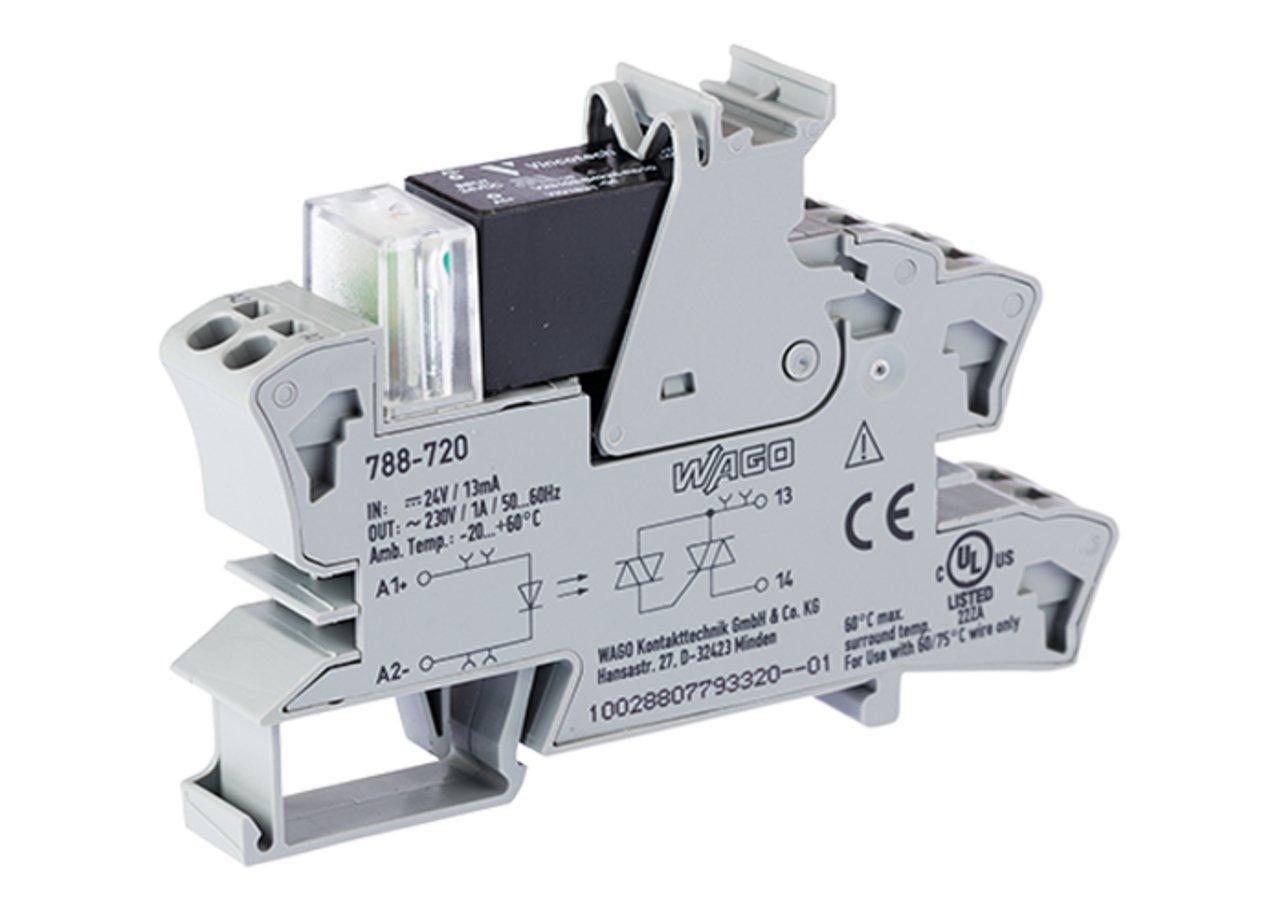

WAGO 788-720 Solid-state relay module
Part Number # 788-720
SKU # 2265606
$69.40 / Each
Wago 788-720 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-720 |
| SKU #: | 2265606 |
| Amperage Rating: | 1 A |
| Dimensions: | 3.386 in H x 0.591 in W x 2.126 in D |
| Enclosure Type: | IP20 |
| Indicator: | Red LED |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Circuit type: | 2-wire connection || Zero-voltage switching |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 86 mm / 3.386 inch |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Output voltage range: | AC 24 … 240 V |
| Protection type: | IP20 |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508 (max. 40 °C/2.5 A) |
| Status indicator: | Red LED |
| Switching frequency: | 50 Hz / 60 Hz |
| Turn-off time: | ≤ 10 ms |
| Turn-on time: | ≤ 10 ms |
| Weight: | 41.252 g |
| Width: | 15 mm / 0.591 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454743888 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.40 / Each
Quantity:
- WAGO, 788-720, Solid-State Relay Module, 24 V DC, 1 A, Red LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, Gray, 3.386 in H x 0.591 in W x 2.126 in D Dimensions
788-720 Standards
EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508 (max. 40°C/2.5 A)|RoHS Compliant|IP20SKU #2265606Part Number #788-720UNSPSC43232306UPC04045454743888
