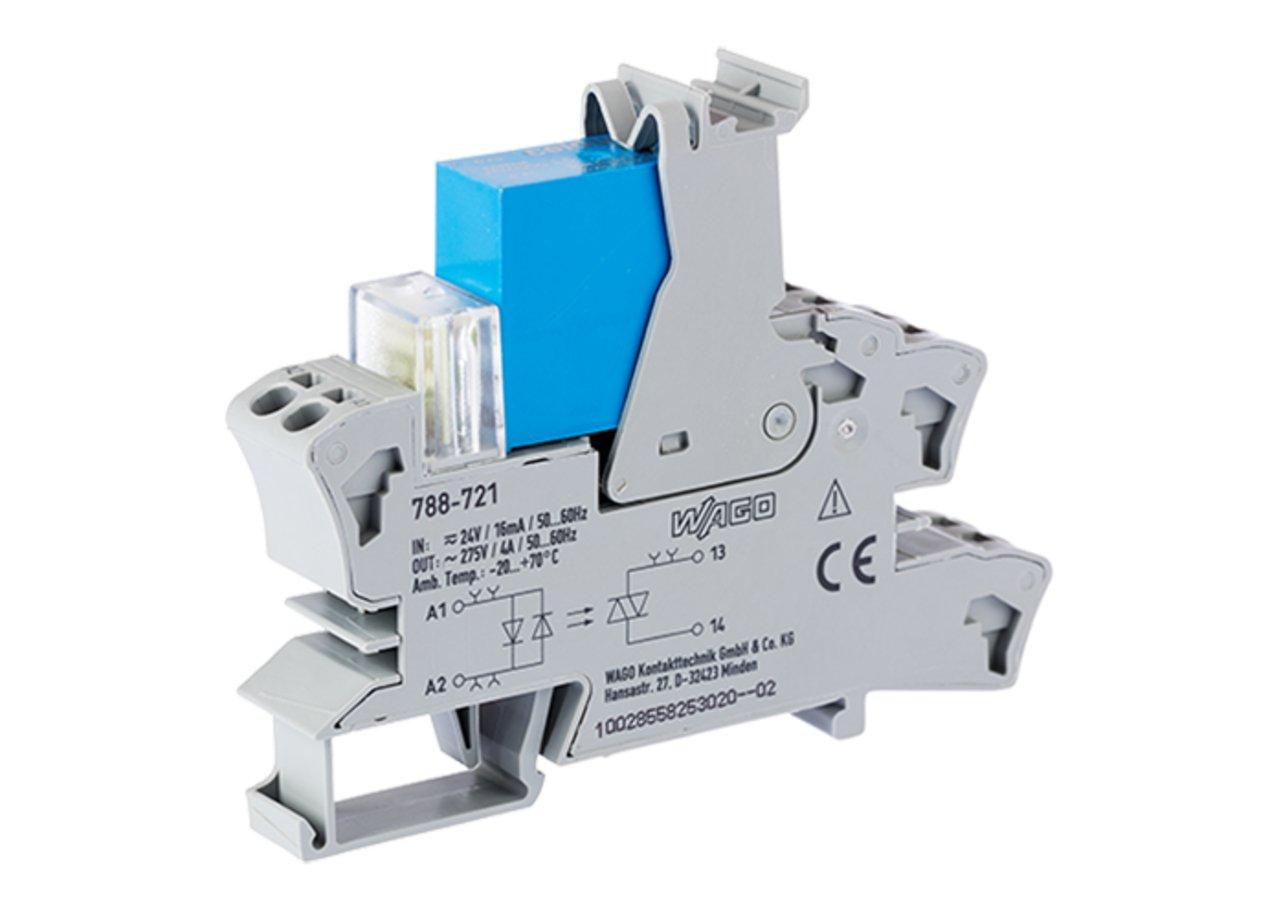

WAGO 788-721 Solid-state relay module
Part Number # 788-721
SKU # 2348165
$74.77 / Each
Wago 788-721 Key Features
Brand: Wago
Part Number # 788-721
SKU #2348165
Amperage Rating: 4 A
Dimensions: 3.386 in H x 0.591 in W x 2.52 in D
Enclosure Type: IP20
Indicator: Red LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VAC/VDC
Circuit type: 2-wire connection || Zero-voltage switching
Color: Gray
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mounting type: 35 mm DIN Rail, DIN-35 rail
Output voltage range: AC 12 … 275 V (50/60 Hz)
Protection type: IP20
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61000-6-2; EN 61000-6-3; EN 61373; EN 61010-2-201; UL 508 (max. 40 °C/2.5 A)
Status indicator: Red LED
Switching frequency: 50 Hz / 60 Hz
Turn-off time: ≤ 10 ms
Turn-on time: ≤ 10 ms
Weight: 49.387 g
Width: 15 mm / 0.591 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454945961
$74.77 / Each
WAGO 788-721 Solid-state relay module
Brand: Wago
Part Number: 788-721
Additional Description: WAGO-788-721 24VAC/DC OP 24 230VAC 7880721 status dicatormodlwidth 15mm GRA INPUT VOLTAGE: 24 V AC/DC; OUTPUT VOLTAGE RANGE: 24 230 VAC; LIMITING CONTINUOUS CURRENT: 4 A; 2-WIRE CONNECTION; ZERO-CROSS SWITCHING; RED STATUS INDICATOR; MODULE WIDTH: 15 MM; GRAY 07880721
Catalog Description: Solid-state relay module; Nominal input voltage: 24 V AC/DC; Output voltage range: 24 … 230 VAC; Limiting continuous current: 4 A; 2-wire connection; zero-cross switching; Red status indicator; Module width: 15 mm; gray
788-721 Standards
EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508 (max. 40°C/2.5 A)|RoHS Compliant|IP20SKU #2348165Part Number #788-721UNSPSC43232306UPC04045454945961
