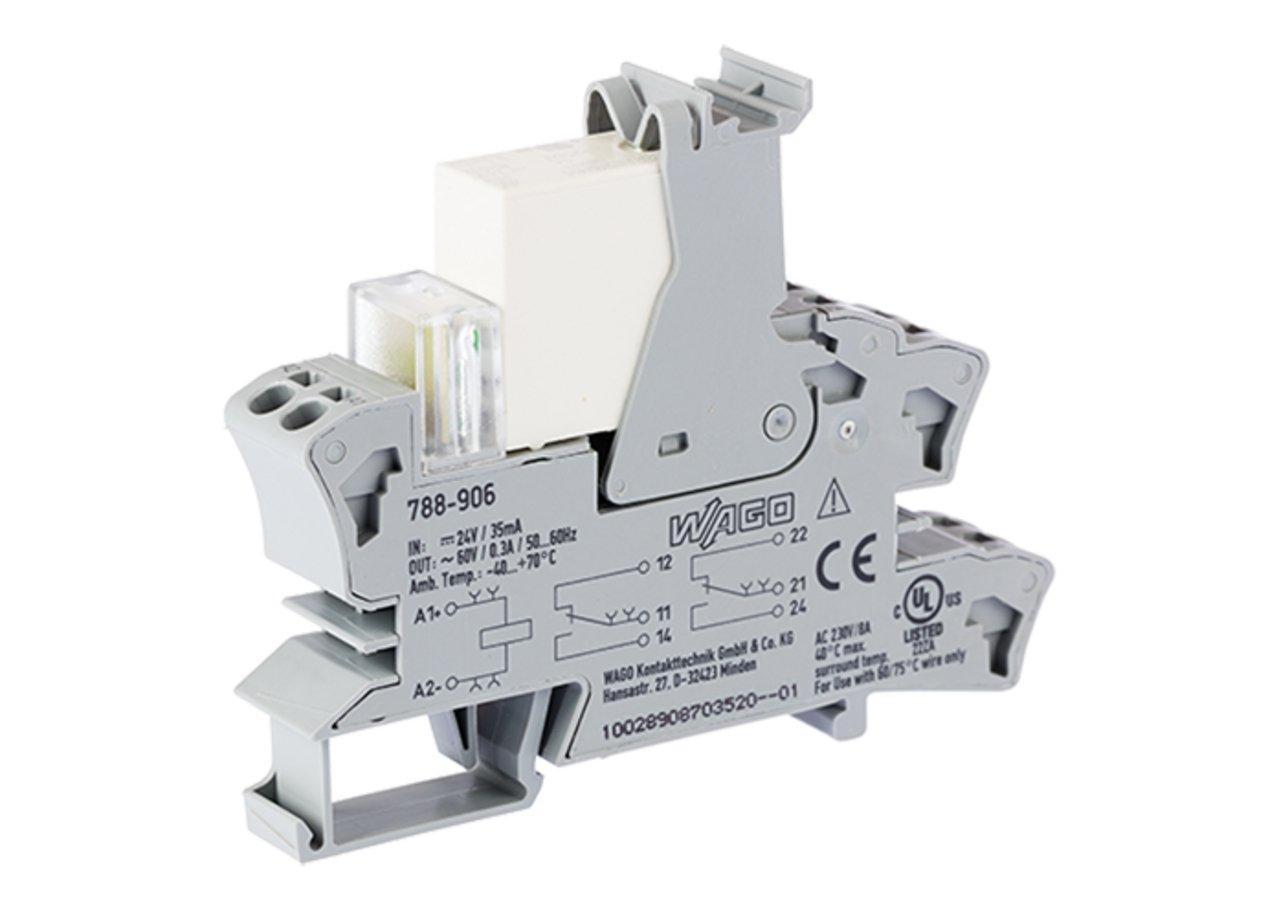

WAGO 788-906 Relay module with driven contacts
Part Number # 788-906
SKU # 2323296
$54.19 / Each
Wago 788-906 Key Features
Brand: Wago
Part Number # 788-906
SKU #2323296
Amperage Rating: 0.3 A
Dimensions: 3.386 in H x 0.591 in W x 2.52 in D
Enclosure Type: IP20
Indicator: Green LED
Temperature Rating (Degrees F): -25 to 50 deg C
Voltage Rating: 24 VDC
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 86 mm / 3.386 inch
Mechanical force-guided operation: Type A
Mechanical life: 50 x 106 switching operations
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of changeover/switchover contacts: 2
Protection type: IP20
Rated voltage: 250 V
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Standards/Specifications: EN 61010-2-201; EN 50205; EN 61810-3; UL 508 (max. 40 °C)
Status indicator: Green LED
Switching frequency with/without load (max.): 6 min-1 / 600 min-1
Weight: 50.000 g
Width: 15 mm / 0.591 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04045454515126
$54.19 / Each
WAGO 788-906 Relay module with driven contacts
Brand: Wago
Part Number: 788-906
Additional Description: WAGO-788-906 RELAY MODULE; NOMINAL INPUT VOLTAGE: 24 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; GREEN STATUS INDICATOR; MODULE WIDTH: 15 MM 51188596 VOLTAGE: 24 VDC; 2 CHANGEOVER CONTACTS; LIMITING CONTINUOUS CURRENT: 8 A; GREEN STATUS INDICATOR; MODULE WIDTH: 15 MM CONTACTS) 51188596
Catalog Description: Relay module with driven contacts; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 0.3 A; Green status indicator; Module width: 15 mm
788-906 Standards
EN 61010-2-201|EN 61810-1|EN 61810-3|UL 508 (max. 40°C)|RoHS Compliant|IP20SKU #2323296Part Number #788-906UNSPSC43232306UPC04045454515126
