Part Number # 804-104
SKU # 2288542
Image Disclaimers Message
804-104

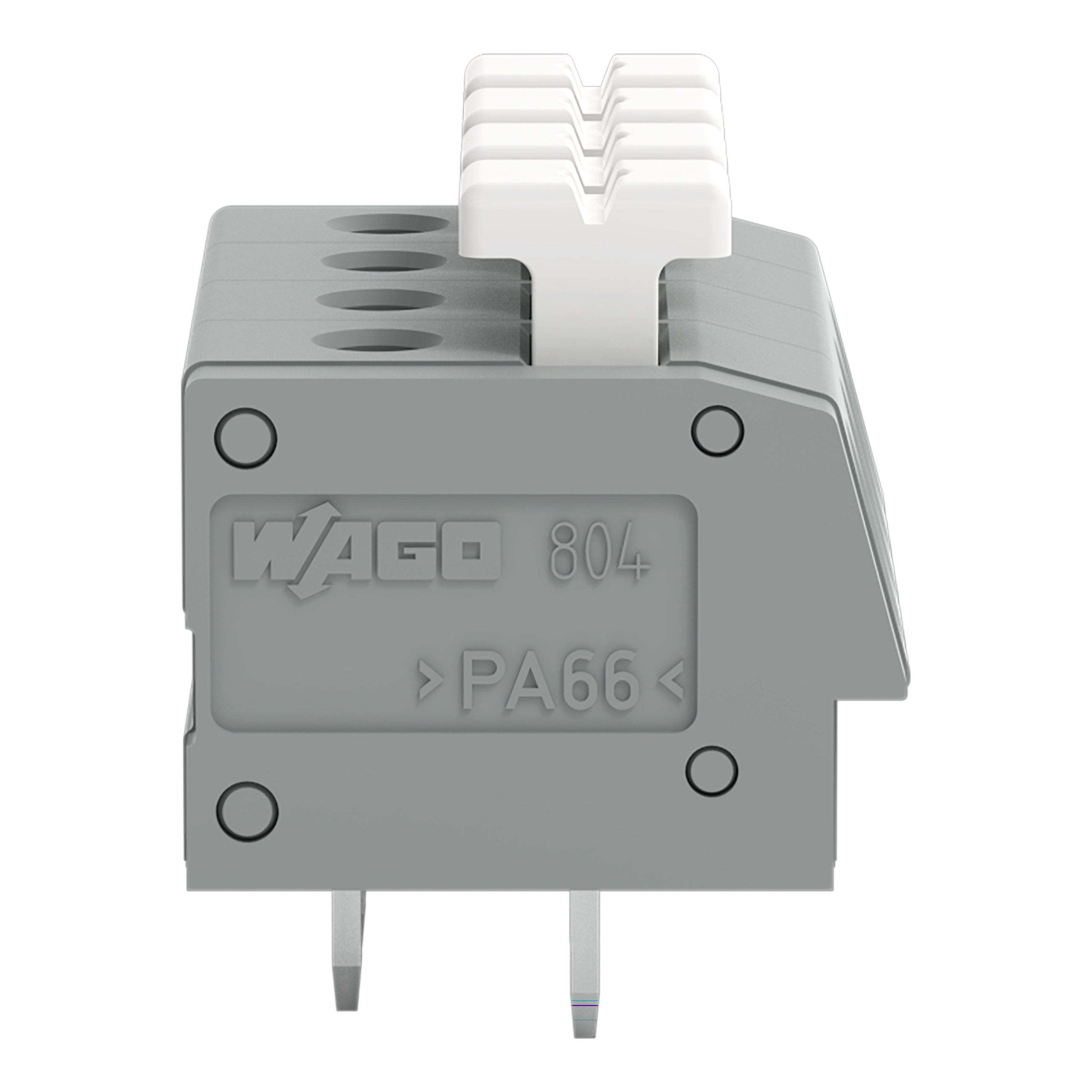

WAGO 804-104 PCB terminal block
Part Number # 804-104
SKU # 2288542
$128.70 / 55Each
Typical price:$139.70 / Each
Wago 804-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 804-104 |
| SKU #: | 2288542 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.713 in H x 0.846 in W x 0.591 in D |
| Number of Poles: | 4 |
| Spacing: | 0.197 in |
| Type: | Push Button |
| Wire Size: | 20 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 15 mm / 0.591 inch |
| Height: | 18.1 mm / 0.713 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 2.5 mm² / 20 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 4.176 g |
| Width: | 21.5 mm / 0.846 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918515009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$128.70 / 55Each
Typical price:$139.70 / Each
Quantity:
WAGO 804-104 PCB terminal block
Brand: Wago
Part Number: 804-104
Additional Description: WAGO-804-104 PCB TERMINAL BLOCK; PUSH-BUTTON; 2.5 MM ; PIN SPACING 5 MM; 4-POLE; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 804-104 51131929
Catalog Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5 mm; 4-pole; Push-in CAGE CLAMP®; 2,50 mm²; gray
804-104 Item Features
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled, fine-stranded conductors
- Terminal strips with spacers to increase pin spacing
- Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor
804-104 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2288542Part Number #804-104UNSPSC39121459UPC04044918515009
