Part Number # 811-310
SKU # 2235114
Image Disclaimers Message
811-310

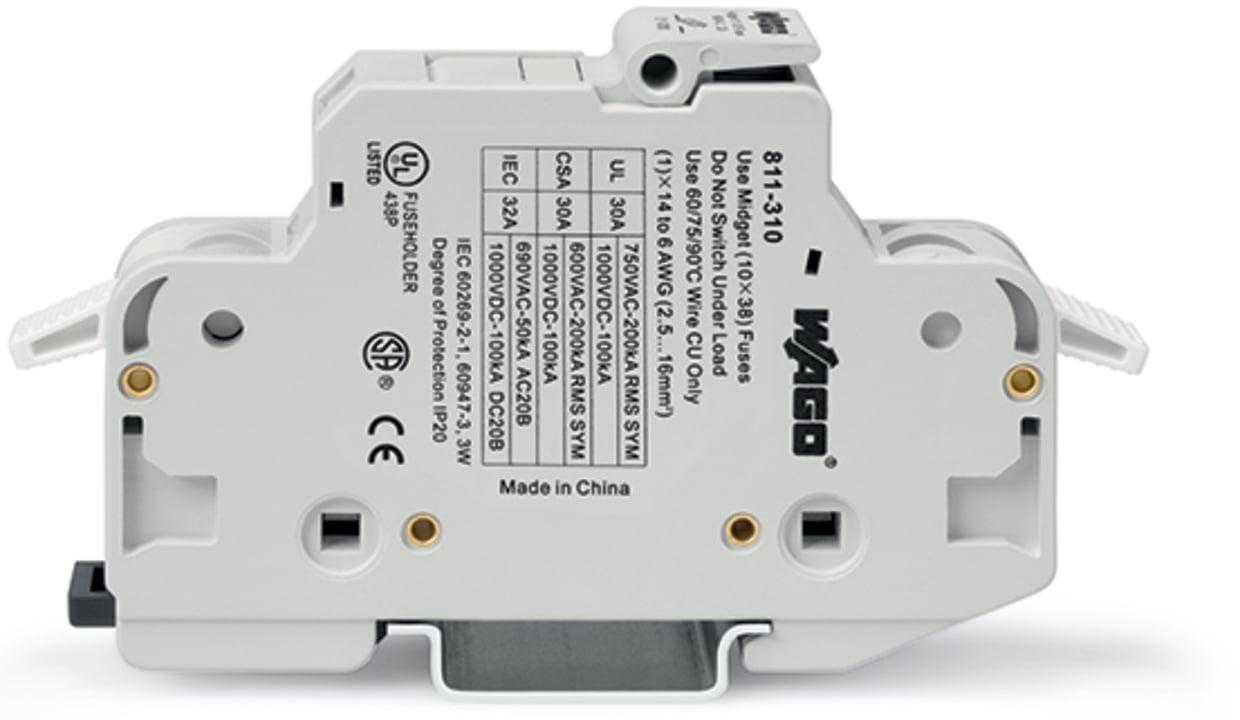

WAGO 811-310 2-conductor fuse holder
Part Number # 811-310
SKU # 2235114
Wago 811-310 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 811-310 |
| SKU #: | 2235114 |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Light gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Depth: | 105 mm / 4.134 inch |
| Insulation material: | Polyamide (PA66) |
| Mounting type: | DIN-35 rail |
| Rated current: | 32 A |
| Solid conductor: | 2.5 … 16 mm² / 14 … 6 AWG |
| Total number of connection points: | 2 |
| Weight: | 1.111 g |
| Width: | 17.5 mm / 0.689 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821498889 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 811-310 2-conductor fuse holder
Brand: Wago
Part Number: 811-310
Additional Description: WAGO-811-310 2-CONDUCTOR FUSE TERMINAL BLOCK; FOR CYLINDRICAL FUSES 10 X 38 MM; 13/32"" X 11/2""; 1-POLE; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 16 MM; CAGE CLAMP; 16,00 MM; LIGHT GRAY 8110310 1600mm LtGRA FOR CYLINDRICAL FUSES 10 X 38 MM; 13/32"" X 11/2""; 1-POLE; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 16 MM ; CAGE CLAMP ; 16,00 MM ; LIGHT GRAY 08110310
Catalog Description: 2-conductor fuse holder ; for cylindrical fuses 10 x 38 mm; 13/32" x 11/2"; 1-pole; without blown fuse indication; 750 VAC/ 1000 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 16 mm²; CAGE CLAMP®; 16,00 mm²; light gray
SKU #2235114Part Number #811-310UNSPSC39121410UPC04050821498889
