Part Number # 830-800/000-314
SKU # 2348170
830-800/000-314

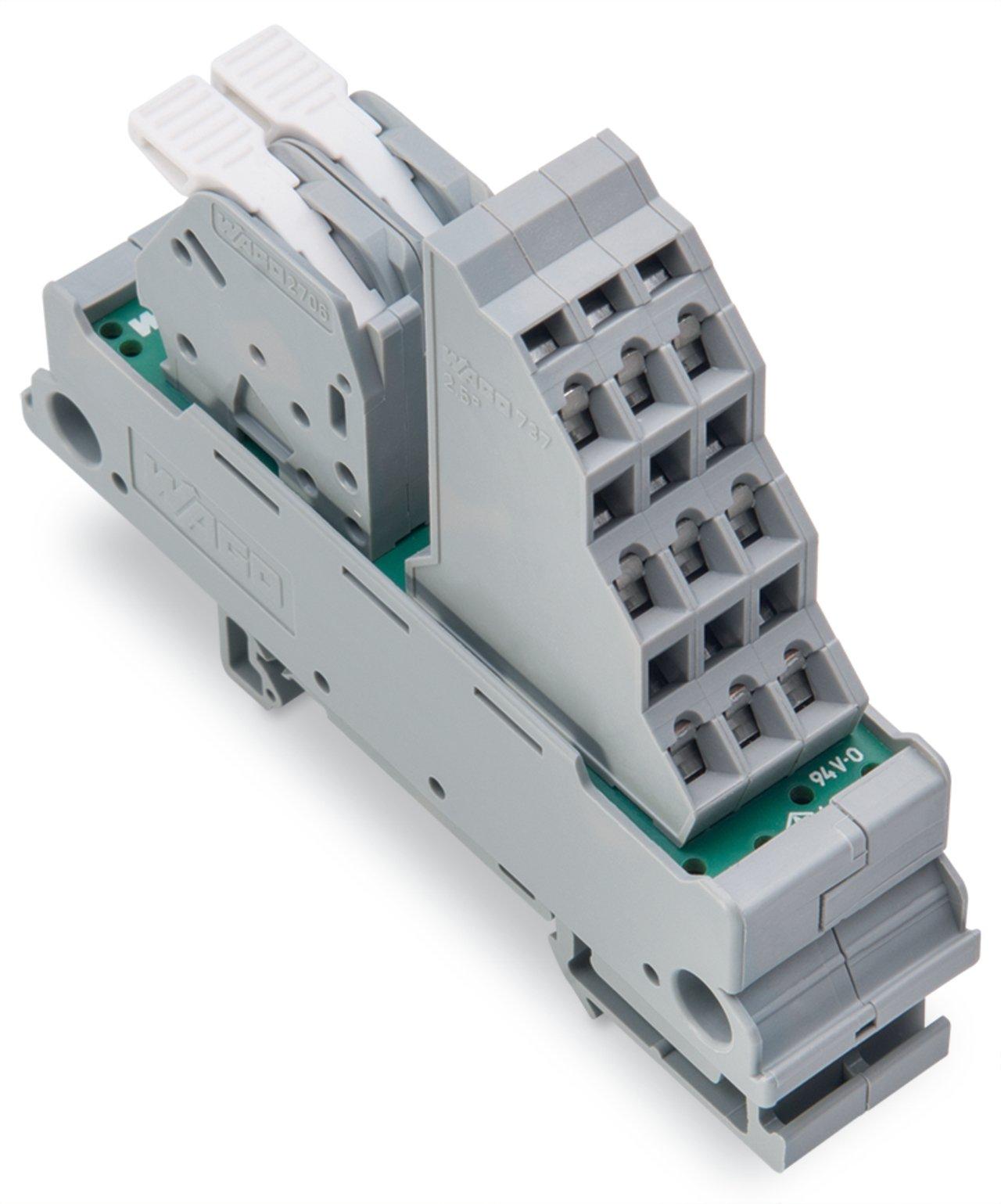

WAGO 830-800/000-314 Potential distribution module
Part Number # 830-800/000-314
SKU # 2348170
Wago 830-800/000-314 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 830-800/000-314 |
| SKU #: | 2348170 |
| Amperage Rating: | 30 A |
| Dimensions: | 2.44 in H x 0.81 in W x 3.35 in D |
| Number of Poles: | 1 |
| Series: | 9999 |
| Type: | 1-Potential |
| Wire Size: | 0.43, 0.2 to 0.24 in |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | US |
| Depth: | 85 mm / 3.35 inch |
| Mounting type: | DIN-35 rail |
| Operating voltage: | ≤ AC/DC 250 V |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Standards/Specifications: | CULus 61010-2-201 |
| WAGO Connector: | WAGO 2706 Series |
| Weight: | 62.600 g |
| Width: | 21 mm / 0.81 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143379397 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 830-800/000-314 Potential distribution module
Brand: Wago
Part Number: 830-800/000-314
WAGO, 830-800/000-314, Distribution Module, 1-Potential, Series: 9999, ? 250 VAC/VDC, 30 A, 1 Pole, Cage Clamp Primary Connections/Pole, 0.43, 0.2 to 0.24 in Wire, 2.44 in H x 0.81 in W x 3.35 in D Dimensions
Additional Description: WAGO-830-800/000-314 POWER DISTRIBUTION MODULE, SINGLE-POLE 2-POSITION 30 AMP 2706 (GRAY, WITH WHITE LEVERS) INPUT, TO 9-POSITION 737-103 (GRAY) OUTPU 60279774 GRA outpu POTENTIAL; WITH 2 INPUT CLAMPING POINTS; CONDUCTOR CROSS-SECTION UP TO 16 MM ; OPERATING LEVER; WITH 9 OUTPUT CLAMPING POINTS; CONDUCTOR CROSS-SECTION UP TO 2.5 MM 60279774
Catalog Description: Potential distribution module; 1 potential; with 2 input clamping points each; Conductor cross-section up to 6 mm²; with lever; with 9 output clamping points; Conductor cross-section up to 2.5 mm²
830-800/000-314 Item Features
- 1 Potentials
830-800/000-314 Standards
RoHS Compliant|cULus 61010-2-201SKU #2348170Part Number #830-800/000-314UNSPSC32151603UPC04055143379397
Image provided may only be a representation of final product and may include optional equipment
