830-800/000-316

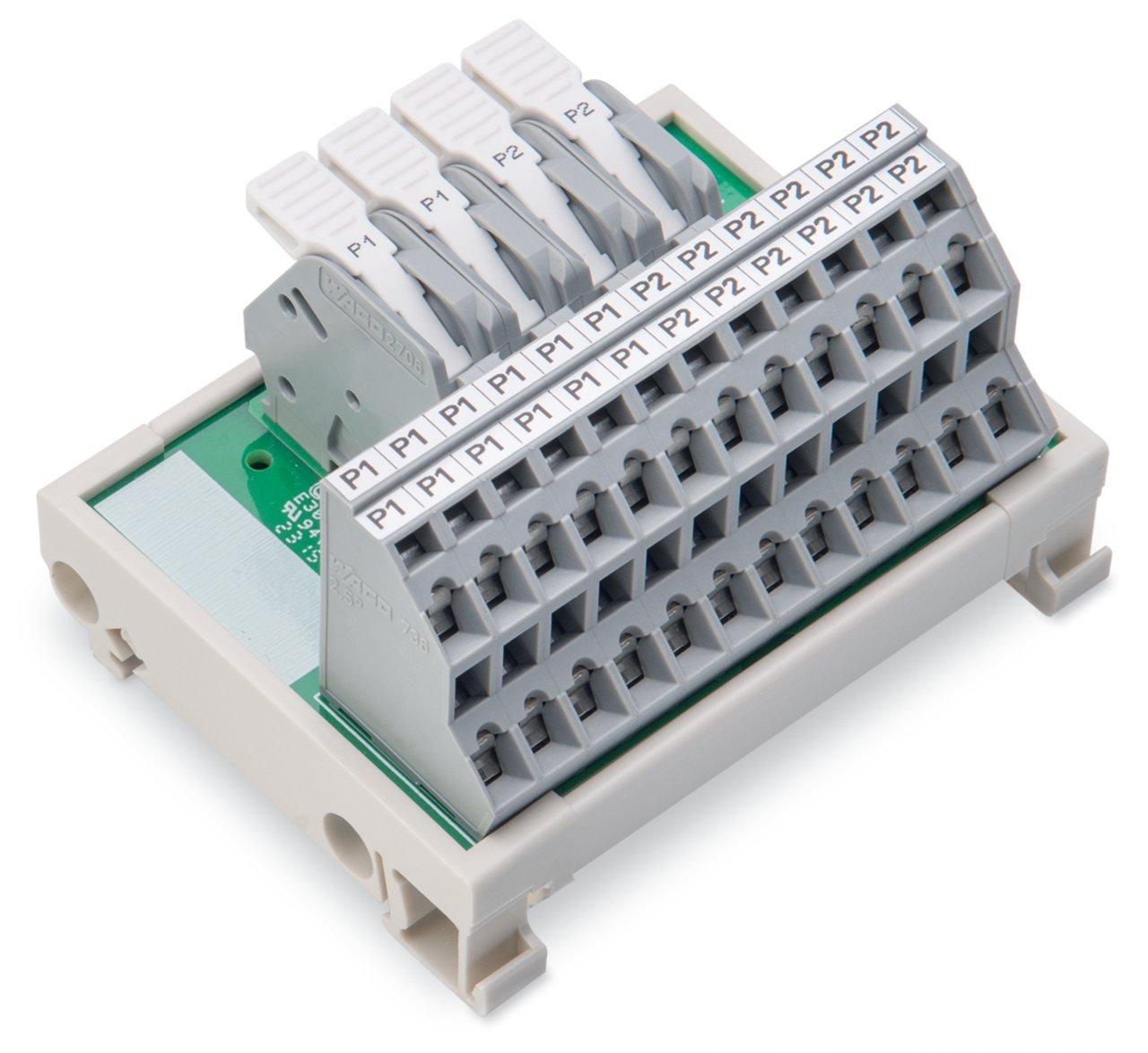

WAGO 830-800/000-316 Potential distribution module
Part Number # 830-800/000-316
SKU # 2357467
$77.22 / Each
Wago 830-800/000-316 Key Features
Brand: Wago
Part Number # 830-800/000-316
SKU #2357467
Dimensions: 2.17 in H x 2.72 in W x 1.47 in D
Number of Poles: 2
Wire Size: 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor
Color: Gray
Connection technology: CAGE CLAMP®
Country of origin: US
Depth: 55 mm / 2.17 inch
Mounting type: DIN-35 rail
Operating voltage: ≤ AC/DC 250 V
Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
Standards/Specifications: CULus 61010-2-201
WAGO Connector: WAGO 2706 Series
Weight: 101.633 g
Width: 69 mm / 2.72 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151603
UPC: 04055143380096
$77.22 / Each
- WAGO, 830-800/000-316, Potential Distribution Module, 2 Pole, Output Secondary Connection/Pole, 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor Wire, Gray, 2.17 in H x 2.72 in W x 1.47 in D Dimensions
830-800/000-316 Standards
cULus 61010-2-201|RoHS Compliant|ECCN: EAR99SKU #2357467Part Number #830-800/000-316UNSPSC32151603UPC04055143380096
