Part Number # 830-800/000-317
SKU # 2359131
830-800/000-317
WAGO 830-800/000-317 Potential distribution module
Part Number # 830-800/000-317
SKU # 2359131
Wago 830-800/000-317 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 830-800/000-317 |
| SKU #: | 2359131 |
| Dimensions: | 2.17 in H x 3.51 in W x 1.47 in D |
| Number of Poles: | 2 |
| Wire Size: | 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | US |
| Depth: | 55 mm / 2.17 inch |
| Mounting type: | DIN-35 rail |
| Operating voltage: | ≤ AC/DC 250 V |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Standards/Specifications: | CULus 61010-2-201 |
| WAGO Connector: | WAGO 2706 Series |
| Weight: | 119.667 g |
| Width: | 89 mm / 3.51 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143380119 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 830-800/000-317 Potential distribution module
Brand: Wago
Part Number: 830-800/000-317
Additional Description: WAGO-830-800/000-317 POTENTIAL DISTRIBUTION MODULE; 2 POTENTIALS; WITH 2 INPUT CLAMPING POINTS; CONDUCTOR CROSS-SECTION UP TO 6 MM ; OPERATING LEVER; WITH 16 OUTPUT CLAMPING POINTS EACH; CONDUCTOR CROSS-SECTION UP TO 2.5 MM 60279788
Catalog Description: Potential distribution module; 2 potentials; with 2 input clamping points each; Conductor cross-section up to 6 mm²; with lever; with 16 output clamping points each; Conductor cross-section up to 2.5 mm²
830-800/000-317 Standards
cULus 61010-2-201|RoHS Compliant|ECCN: EAR99SKU #2359131Part Number #830-800/000-317UNSPSC32151603UPC04055143380119

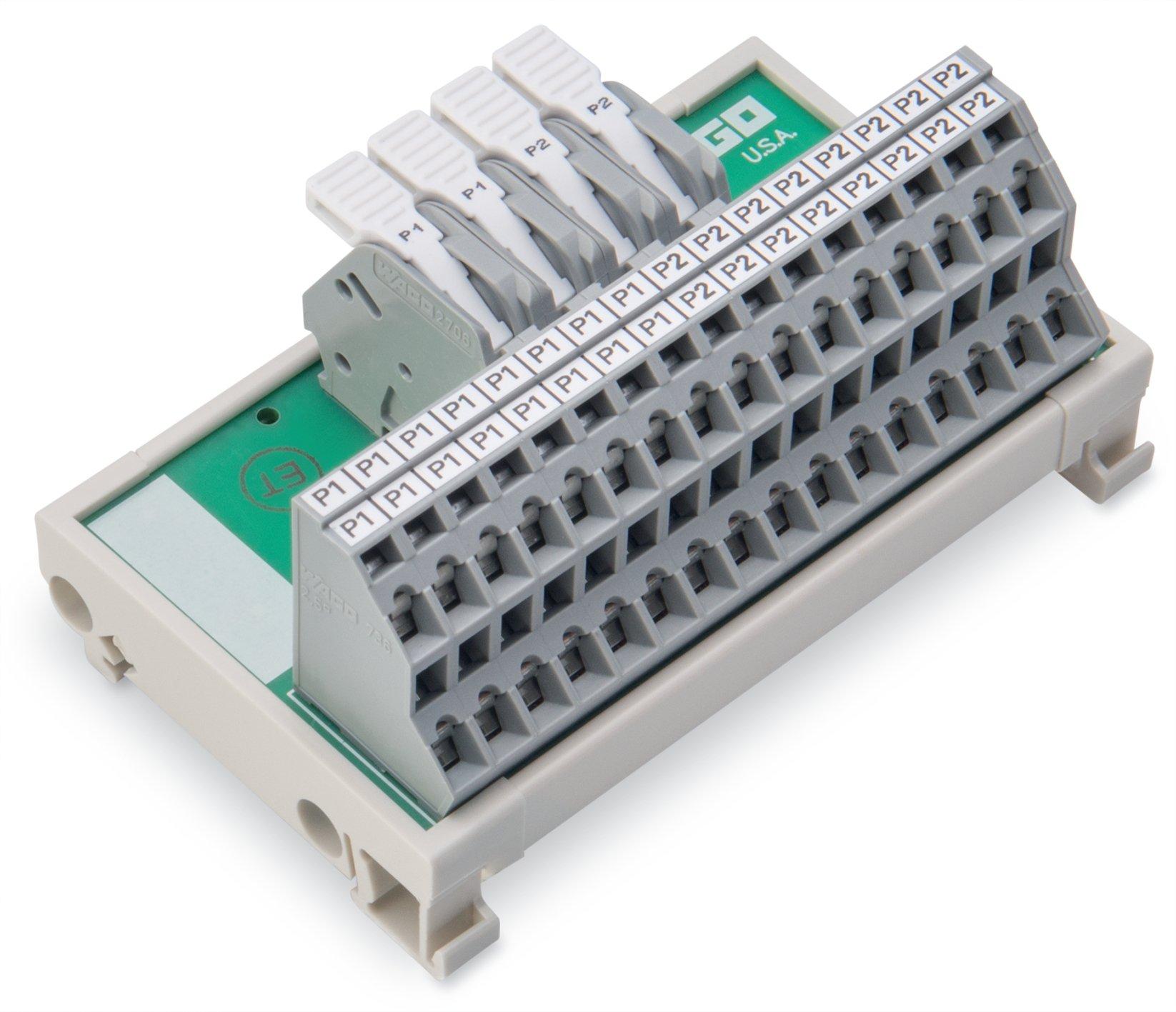

Image provided may only be a representation of final product and may include optional equipment
