830-800/000-318

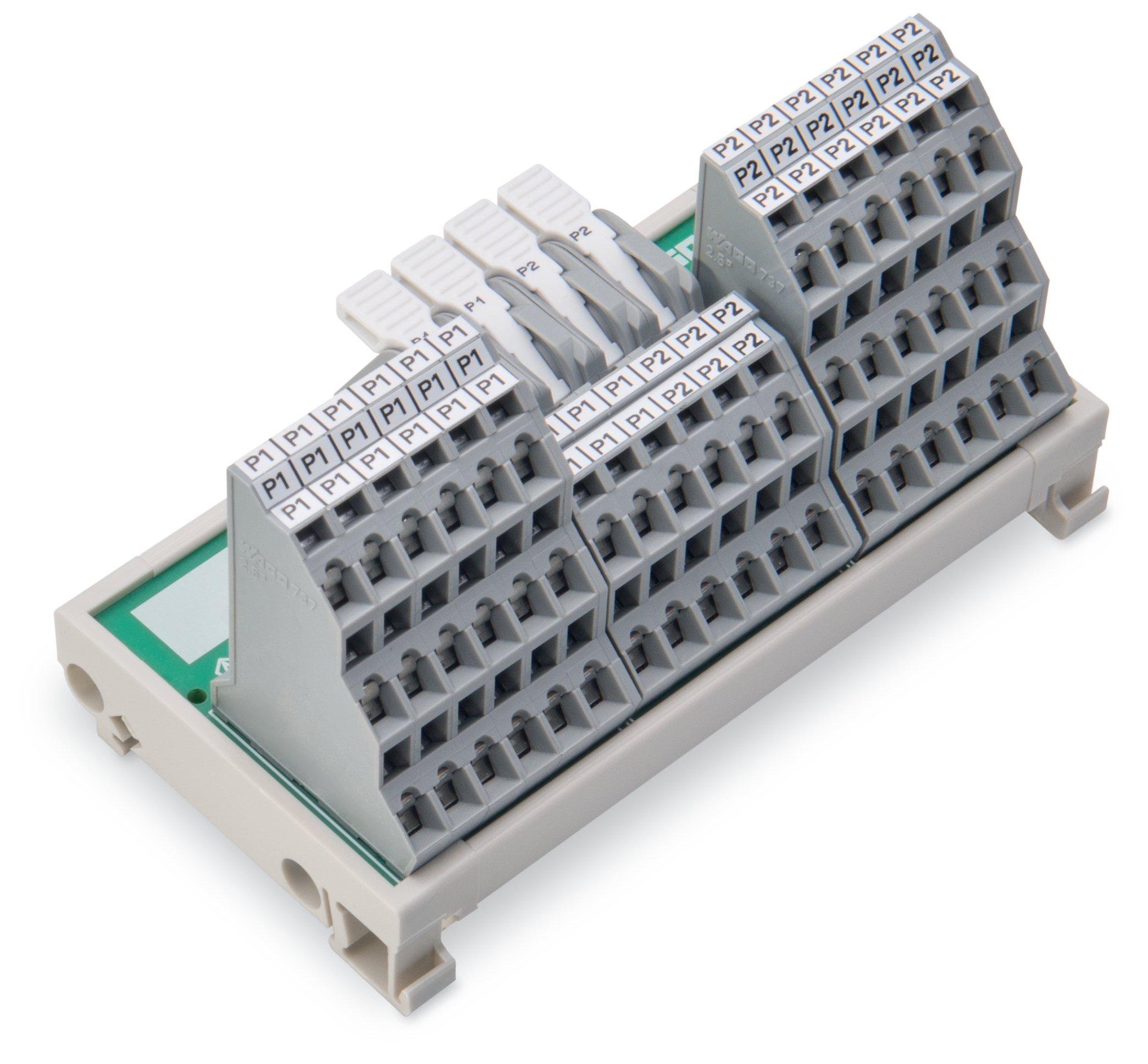

WAGO 830-800/000-318 Potential distribution module
Part Number # 830-800/000-318
SKU # 2382577
$115.12 / Each
Wago 830-800/000-318 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 830-800/000-318 |
| SKU #: | 2382577 |
| Dimensions: | 2.17 in H x 4.02 in W x 2.02 in D |
| Number of Poles: | 2 |
| Wire Size: | 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | US |
| Depth: | 55 mm / 2.17 inch |
| Mounting type: | DIN-35 rail |
| Operating voltage: | ≤ AC/DC 250 V |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Standards/Specifications: | CULus 61010-2-201 |
| WAGO Connector: | WAGO 2706 Series |
| Weight: | 127.400 g |
| Width: | 102 mm / 4.02 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143380126 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$115.12 / Each
Quantity:
- WAGO, 830-800/000-318, Potential Distribution Module, 2 Pole, Output Secondary Connection/Pole, 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor Wire, Gray, 2.17 in H x 4.02 in W x 2.02 in D Dimensions
830-800/000-318 Standards
cULus 61010-2-201|RoHS Compliant|ECCN: EAR99SKU #2382577Part Number #830-800/000-318UNSPSC43232306UPC04055143380126
