WAGO 830-800/000-319 Potential distribution module
Part Number # 830-800/000-319
SKU # 2379038
Wago 830-800/000-319 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 830-800/000-319 |
| SKU #: | 2379038 |
| Dimensions: | 4.18 in H x 3.85 in W x 1.89 in D |
| Number of Poles: | 2 |
| Wire Size: | 10 AWG Solid Conductor, 10 AWG Fine-Stranded Conductor, 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | US |
| Depth: | 106 mm / 4.18 inch |
| Mounting type: | DIN-35 rail |
| Operating voltage: | ≤ AC/DC 250 V |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Standards/Specifications: | CULus 61010-2-201 |
| WAGO Connector: | WAGO 2706 Series |
| Weight: | 181.533 g |
| Width: | 98 mm / 3.85 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143377393 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

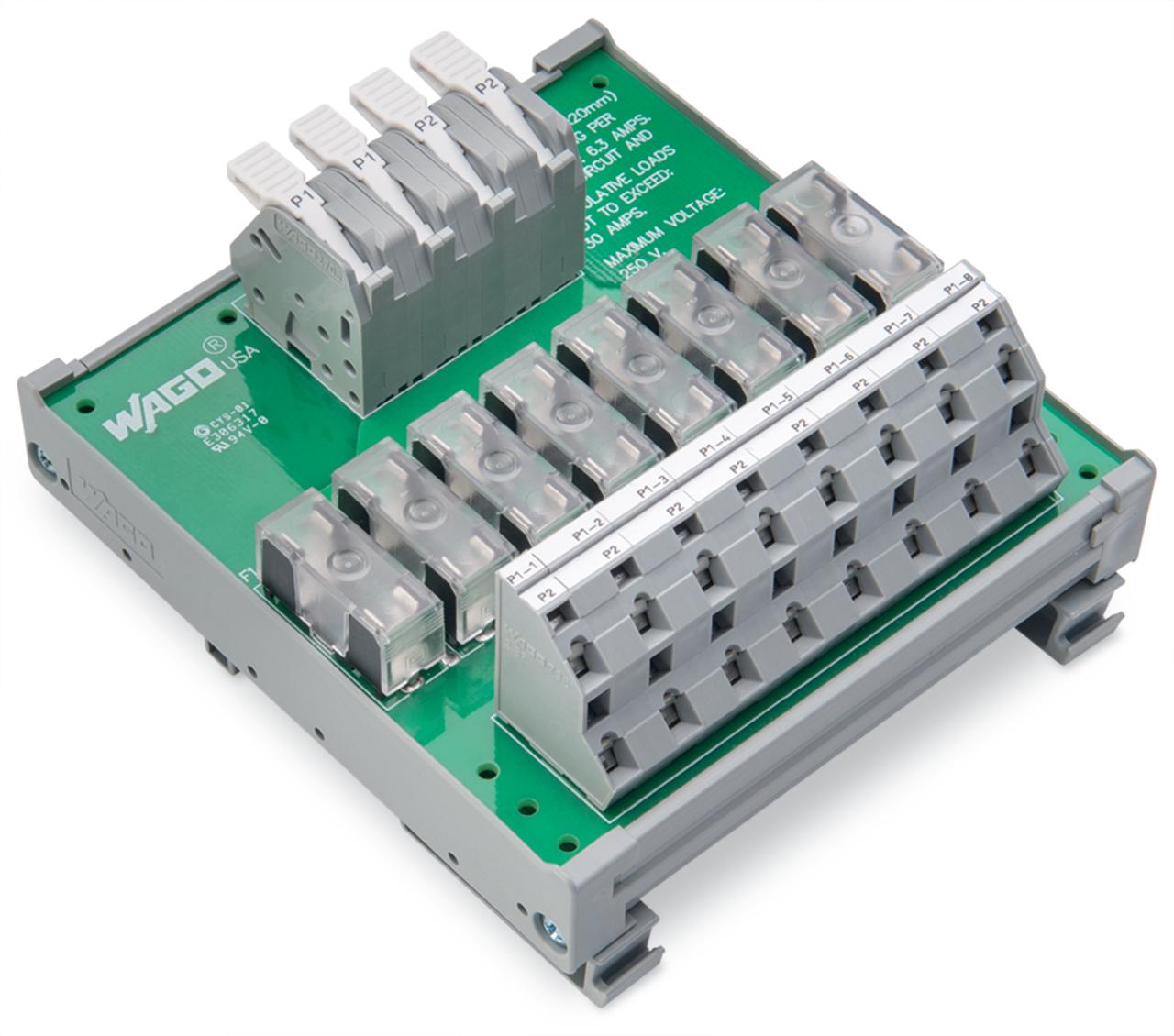

WAGO 830-800/000-319 Potential distribution module
Brand: Wago
Part Number: 830-800/000-319
Additional Description: WAGO-830-800/000-319 8-CHANNEL FUSED POWER DISTRIBUTION MODULE. MAX. 30 AMPS CUMULATIVE LOAD, NOT TO EXCEED 6.3 A PER CHANNEL, 250 V MAX 60279790 6.3AperCh 250 VMAx POTENTIALS; WITH 2 INPUT CLAMPING POINTS; CONDUCTOR CROSS-SECTION UP TO 6 MM ; OPERATING LEVER; WITH 8 OUTPUT CLAMPING POINTS EACH; CONDUCTOR CROSS-SECTION UP TO 2.5 MM ; WITH FUSE 60279790 POINTS; CONDUCTOR CROSS-SECTION UP TO 6 MM ; OPERATING LEVER; WITH 8 OUTPUT CLAMPING POINTS EACH; CONDUCTOR CROSS-SECTION UP TO 2.5 MM ; WITH FUSE
Catalog Description: Potential distribution module; 2 potentials; with 2 input clamping points each; Conductor cross-section up to 6 mm²; with lever; with 8 output clamping points each; Conductor cross-section up to 2.5 mm²
830-800/000-319 Standards
cULus 61010-2-201|RoHS Compliant|ECCN: EAR99SKU #2379038Part Number #830-800/000-319UNSPSC43232306UPC04055143377393
