Part Number # 831-1103/038-000
SKU # 2424396
Brand: Wago
831-1103/038-000

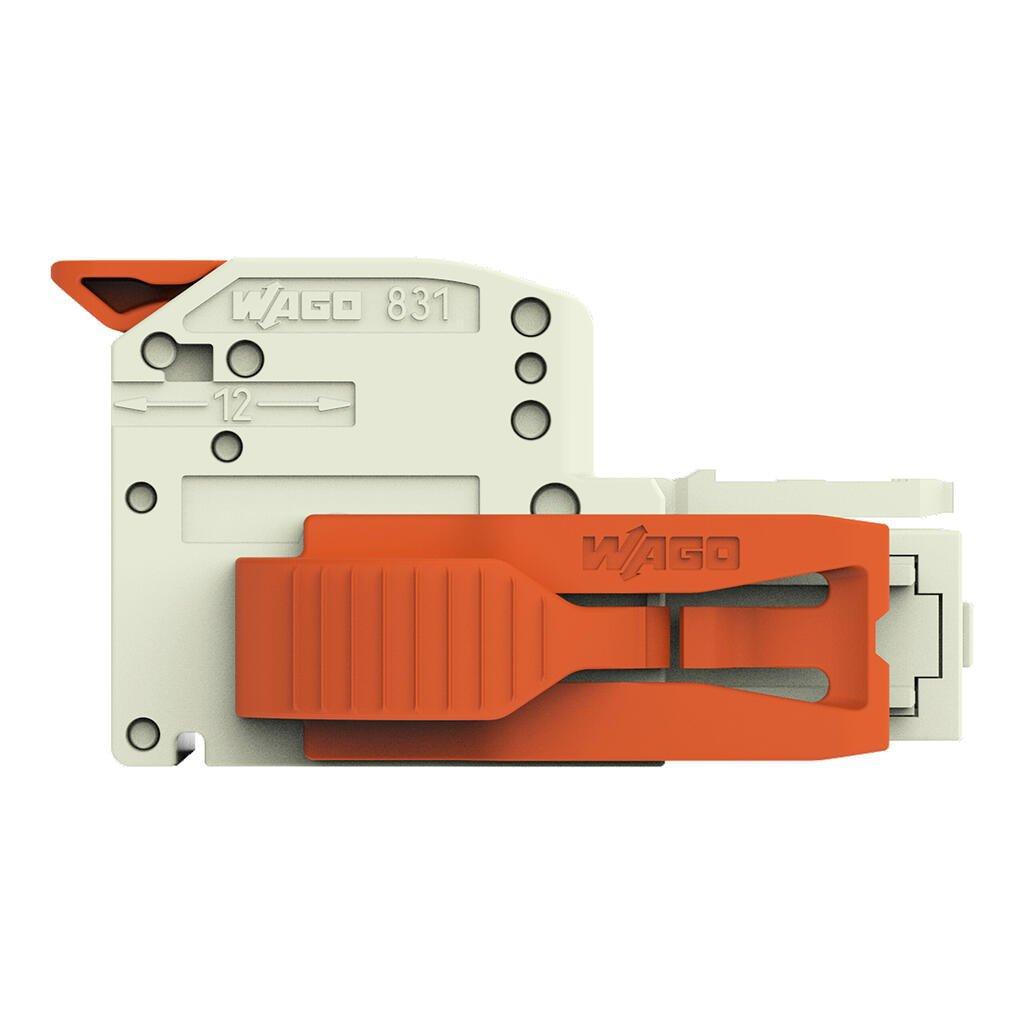

WAGO 831-1103/038-000 Terminal Blocks
Part Number # 831-1103/038-000
SKU # 2424396
$208.80 / 24Each
Typical price:$226.08 / Each
Wago 831-1103/038-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-1103/038-000 |
| SKU #: | 2424396 |
| Amperage Rating: | 41 A |
| Dimensions: | 0.984 in H x 1.92 in W x 1.799 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push-In |
| Wire Size: | 20 to 8 AWG |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04066966128963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.80 / 24Each
Typical price:$226.08 / Each
Quantity:
WAGO 831-1103/038-000 Terminal Blocks
Brand: Wago
Part Number: 831-1103/038-000
Additional Description: WAGO-831-1103/038-000 1-CONDUCTOR FEMALE CONNECTOR LEVER PUSH-IN CAGE CLAMP , LIGHT GRAY 60509243
Catalog Description: 1-conductor female connector; lever; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 3-pole; 100% protected against mismating; Lateral locking levers; 10,00 mm²; light gray
831-1103/038-000 Item Features
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Push-in termination of solid and ferruled conductors
- Test slot 0 deg and 90 deg to conductor entry
- 100 Percent protected against mismating
- Coding option available
831-1103/038-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2424396Part Number #831-1103/038-000UNSPSC39121410UPC04066966128963
Image provided may only be a representation of final product and may include optional equipment
