Part Number # 831-3103
SKU # 2346640
Image Disclaimers Message
Brand: Wago
831-3103

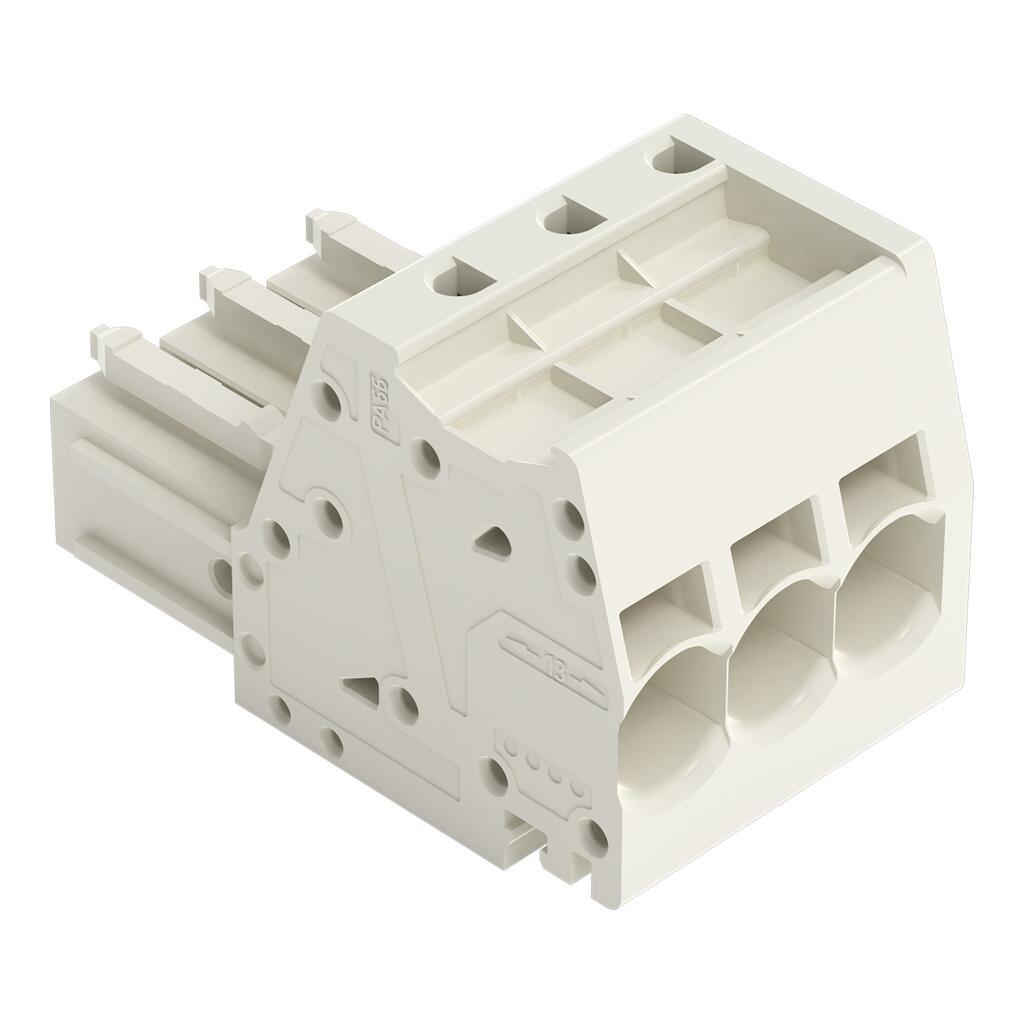

WAGO 831-3103 1-conductor female plug
Part Number # 831-3103
SKU # 2346640
$6.96 / Each
Typical price:$7.54 / Each
Wago 831-3103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 831-3103 |
| SKU #: | 2346640 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.087 in H x 0.974 in W x 1.65 in D |
| Number of Poles: | 3 |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 41.9 mm / 1.65 inch |
| Height: | 27.5 mm / 1.083 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 3 |
| Weight: | 22.704 g |
| Width: | 24.74 mm / 0.974 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454002022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.96 / Each
Typical price:$7.54 / Each
Quantity:
- WAGO, 831-3103, 1-Conductor Female Connector, Operating Tool, 1 kV, 41 A, 3 Pole, 20 to 8 AWG Wire, 0.59 in Wire Strip Length, Push-In Connection, Polyamide, Light Gray, 1.087 in H x 0.974 in W x 1.65 in D Dimensions
831-3103 Item Features
- Universal connection for all conductor types
- Push-in termination of solid or ferruled conductors
- 100 Percent protected against mismating
- Coding via coding fingers
831-3103 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|UL 1059SKU #2346640Part Number #831-3103UNSPSC39121469UPC04045454002022
